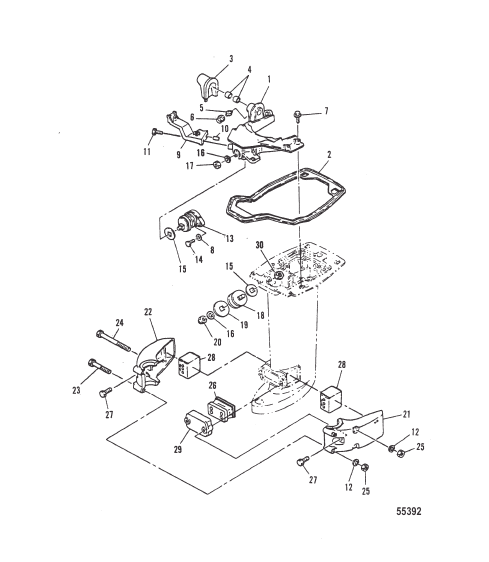

MOUNTING SYSTEM
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 95548M |
КРОНШТЕЙН BRACKET |
1 | superseded |
| 10 | 82364M |
ШТИФТ Штифт ШТИФТ PIN Dowel DOWEL |
1 | discontinued |
| 11 | 82451M |
БОЛТ BOLT |
1 | superseded |
| 12 | 82217M |
ШАЙБА WASHER |
4 | discontinued |
| 13 | 84841M |
КРЕПЛЕНИЕ ВЕРХНЯЯ ЧАСТЬ ПЕРЕДНЕЙ СТОРОНЫ MOUNT UPPER FRONT |
1 | |
| 14 | 84058M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
2 | |
| 15 | 80662M |
ПРОКЛАДКА ОПОРА GASKET MOUNT |
3 | discontinued |
| 16 | 82219M |
ШАЙБА WASHER |
3 | discontinued |
| 17 | 82395M |
ГАЙКА NUT |
1 | discontinued |
| 18 | 82557M |
КРЕПЛЕНИЕ ВЕРХНЯЯ ЧАСТЬ БОКОВОЙ СТОРОНЫ MOUNT UPPER SIDE |
2 | superseded |
| 19 | 81612M |
ПРОКЛАДКА ОПОРА GASKET MOUNT |
2 | discontinued |
| 2 | 84838M |
УПЛОТНЕНИЕ РЕЗИНА SEAL RUBBER |
1 | discontinued |
| 20 | 82396M |
ГАЙКА ГОЛОВКА NUT CROWN |
2 | discontinued |
| 21 | 84842M |
КОРПУС НИЖНЯЯ ЧАСТЬ HOUSING LOWER |
1 | discontinued |
| 22 | 84843M |
КОРПУС НИЖНЯЯ ЧАСТЬ HOUSING LOWER |
1 | discontinued |
| 23 | 84844M |
БОЛТ BOLT |
2 | discontinued |
| 24 | 41893M |
БОЛТ BOLT |
2 | discontinued |
| 25 | 82392M |
ГАЙКА NUT |
4 | superseded |
| 26 | 84846M |
КРЕПЛЕНИЕ НИЖНЯЯ ПЕРЕДНЯЯ ЧАСТЬ MOUNT LOWER FRONT |
1 | discontinued |
| 27 | 82464M |
БОЛТ BOLT |
2 | superseded |
| 28 | 84848M |
КРЕПЛЕНИЕ НИЖНЯЯ ЧАСТЬ MOUNT LOWER SIDE |
2 | discontinued |
| 29 | 84847M |
КРЫШКА НИЖНЯЯ ОПОРА COVER LOWER MOUNT |
1 | discontinued |
| 3 | 84840M |
УПЛОТНЕНИЕ РЕЗИНА SEAL RUBBER |
1 | discontinued |
| 30 | 82395M |
ГАЙКА NUT |
2 | discontinued |
| 4 | 81930M |
ВТУЛКА BUSHING |
2 | discontinued |
| 5 | 82369M |
ФИТИНГ СМАЗКА FITTING GREASE |
1 | |
| 6 | 81439M |
ПРОБКА ФИТИНГ CAP FITTING |
1 | discontinued |
| 7 | 84839M |
БОЛТ BOLT |
4 | discontinued |
| 8 | 82214M |
ШАЙБА WASHER |
3 | discontinued |
| 9 | 80657M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
