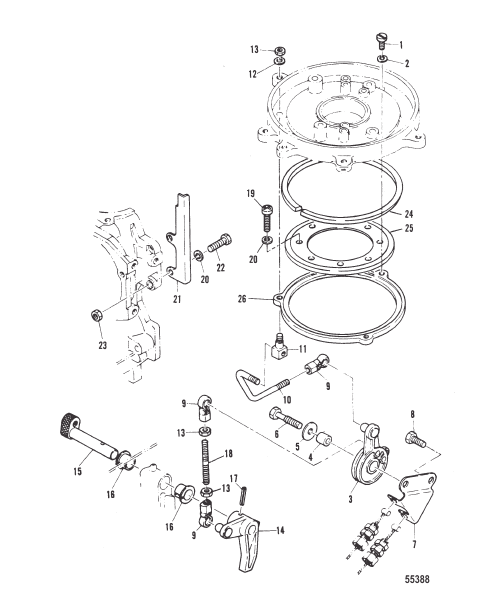

THROTTLE CONTROL
Parts (26)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 82490M |
ВИНТ КРЕПЛЕНИЕ ОСНОВАНИЯ SCREW BASE ATTACHING |
3 | superseded |
| 10 | 81582M |
СТЕРЖЕНЬ ТЯГИ УПРАВЛЕНИЕ МАГНЕТО LINK ROD MAGNETO CONTROL |
1 | discontinued |
| 11 | 80629M |
ШАРНИР СТЕРЖЕНЬ ТЯГИ SWIVEL LINK ROD |
1 | discontinued |
| 12 | 81789M |
ШАЙБА WASHER |
1 | discontinued |
| 13 | 82378M |
ГАЙКА NUT |
3 | superseded |
| 14 | 41890M |
РЫЧАГ ВАЛ ДРОССЕЛЬНОЙ ЗАСЛОНКИ LEVER THROTTLE SHAFT |
1 | discontinued |
| 15 | 81134M |
ВАЛ ДРОССЕЛЬНАЯ ЗАСЛОНКА SHAFT THROTTLE |
1 | discontinued |
| 16 | 81946M |
ВТУЛКА BUSHING |
2 | discontinued |
| 17 | 82156M |
ШТИФТ РОЛИК PIN ROLL |
1 | discontinued |
| 18 | 81722M |
СТЕРЖЕНЬ ТЯГИ LINK ROD |
1 | discontinued |
| 19 | 83539M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
2 | superseded |
| 2 | 82211M |
ШАЙБА WASHER |
3 | discontinued |
| 20 | 82214M |
ШАЙБА WASHER |
4 | discontinued |
| 21 | 96378M |
СТОП ОСНОВАНИЕ МАГНЕТО STOP MAGNETO BASE |
1 | discontinued |
| 22 | 83539M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
4 | superseded |
| 23 | 82380M |
ГАЙКА NUT |
2 | superseded |
| 24 | 92572M |
ПЛАСТИНА ТРЕНИЕ PLATE FRICTION |
1 | discontinued |
| 25 | 92573M |
ФИКСАТОР ОСНОВАНИЕ МАГНЕТО (ВЕРХНИЙ) RETAINER MAGNETO BASE (UPPER) |
1 | discontinued |
| 26 | 96379M |
ФИКСАТОР ОСНОВАНИЕ МАГНЕТО RETAINER MAGNETO BASE |
1 | discontinued |
| 3 | 81581M |
КУЛАЧОК УПРАВЛЕНИЕ МАГНЕТО CAM MAGENTO CONTROL |
1 | superseded |
| 4 | 83310M |
ВТУЛКА COLLAR |
1 | discontinued |
| 5 | 81969M |
ШАЙБА WASHER |
1 | discontinued |
| 6 | 82405M |
БОЛТ BOLT |
1 | discontinued |
| 7 | 81563M |
КРОНШТЕЙН ТРОС ГАЗА BRACKET THROTTLE CABLE |
1 | discontinued |
| 8 | 84303M |
БОЛТ BOLT |
1 | superseded |
| 9 | 81225M |
ОКОНЕЧНЫЙ END |
3 | superseded |
