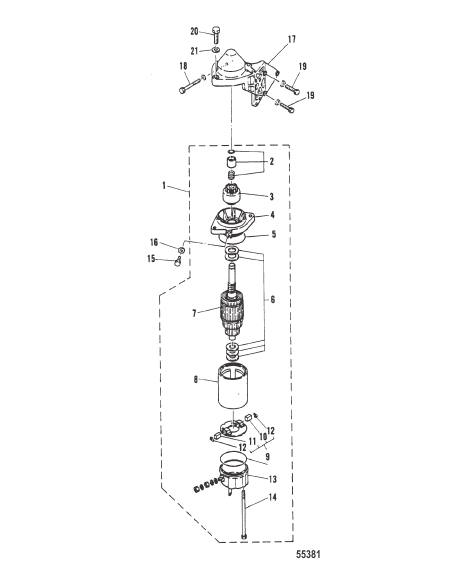

ELECTRIC START MOTOR
Parts (21)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 97693M |
СТАРТЕР В СБОРЕ STARTER MOTOR ASSEMBLY |
1 | discontinued |
| 10 | 96369M |
ЩЕТКА (-) BRUSH (-) |
1 | discontinued |
| 11 | 96368M |
ЩЕТКА (+) BRUSH (+) |
1 | discontinued |
| 12 | 84927M |
ПРУЖИНА ЩЕТКА SPRING BRUSH |
2 | discontinued |
| 13 | 96370M |
КРЫШКА COVER |
1 | discontinued |
| 14 | 84929M |
БОЛТ BOLT |
2 | discontinued |
| 15 | 96371M |
БОЛТ BOLT |
1 | discontinued |
| 16 | 82217M |
ШАЙБА WASHER |
1 | discontinued |
| 17 | 92609M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 18 | 84853M |
БОЛТ BOLT |
1 | superseded |
| 19 | 92523M |
БОЛТ BOLT |
2 | superseded |
| 2 | 96360M |
КОМПЛЕКТ СТОПОРА Шестерня STOPPER KIT Pinion |
1 | discontinued |
| 20 | 95416M |
БОЛТ BOLT |
2 | discontinued |
| 21 | 82217M |
ШАЙБА WASHER |
2 | discontinued |
| 3 | 97694M |
ШЕСТЕРНЯ PINION |
1 | superseded |
| 4 | 96362M |
КРЫШКА COVER |
1 | discontinued |
| 5 | 96363M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | discontinued |
| 6 | 96364M |
КОМПЛЕКТ ШАЙБ WASHER KIT |
1 | discontinued |
| 7 | 96365M |
ЯКОРЬ ARMATURE |
1 | discontinued |
| 8 | 96366M |
СТАТОР STATOR |
1 | discontinued |
| 9 | 96367M |
ДЕРЖАТЕЛЬ Щетка HOLDER Brush |
1 | discontinued |
