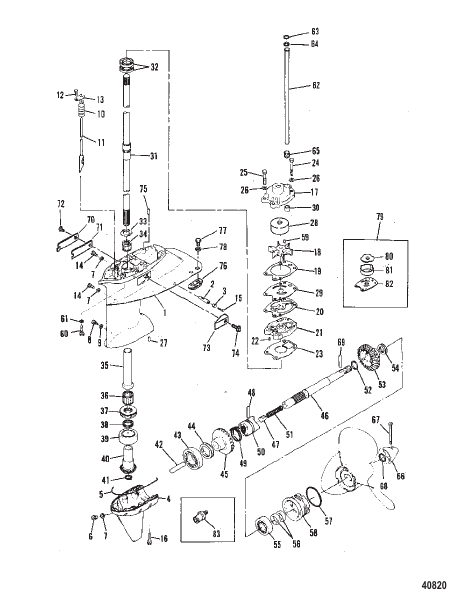

GEARHOUSING ASSEMBLY
Parts (113)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 99981M |
РЕМКОМПЛЕКТ Водяной насос REPAIR KIT Water Pump |
1 | superseded |
| - | 99982M |
КОМПЛЕКТ ПРОКЛАДОК Нижний блок GASKET SET Lower Unit |
1 | discontinued |
| 0-1 | 9824M |
КОРПУС РЕДУКТОРА В СБОРЕ (КОРОТКИЙ ВАЛ) GEAR HOUSING ASSEMBLY Complete (SHORT SHAFT) |
1 | discontinued |
| 0-1 | 9825M |
КОРПУС ШЕСТЕРНИ В СБОРЕ (ДЛИННЫЙ ВАЛ) [M-015221/ML-327508] и выше GEAR HOUSING ASSEMBLY Complete (LONG SHAFT) [M-015221/ML-327508] & Up |
1 | discontinued |
| 0-1 | 9840M |
КОРПУС ШЕСТЕРНИ В СБОРЕ (ДЛИННЫЙ ВАЛ) [M-015220/ML-327507] и ниже GEAR HOUSING ASSEMBLY Complete (LONG SHAFT) [M-015220/ML-327507] & Below |
1 | discontinued |
| 1 | 9826M |
КОРПУС ШЕСТЕРНИ В СБОРЕ [M-015221/ML-327508] И выше GEAR HOUSING ASSEMBLY [M-015221/ML-327508] & Up |
1 | discontinued |
| 1 | 8844M |
КОРПУС ШЕСТЕРНИ В СБОРЕ [M-015220/ML-327507] и ниже GEAR HOUSING ASSEMBLY [M-015220/ML-327507] & Below |
1 | discontinued |
| 10 | 82881M |
ЗАГРУЗКА BOOT |
1 | discontinued |
| 11 | 83445M |
КУЛАЧОК СДВИГА (КОРОТКИЙ) SHIFT CAM (SHORT) |
1 | discontinued |
| 11 | 83446M |
КУЛАЧОК СДВИГА (ДЛИННЫЙ) SHIFT CAM (LONG) |
1 | discontinued |
| 11 | 92615M |
КУЛАЧОК СДВИГА (СУПЕР ДЛИННЫЙ) SHIFT CAM (SUPER LONG) |
1 | discontinued |
| 12 | 84088M |
ВИНТ (M6 x 10) SCREW (M6 x 10) |
1 | discontinued |
| 13 | 82882M |
ТАРЕЛКА PLATE |
1 | discontinued |
| 14 | 81924M |
ПРОБКА PLUG |
2 | discontinued |
| 15 | 11878M |
ВИНТ SCREW |
1 | discontinued |
| 16 | 82476M |
БОЛТ BOLT |
9 | discontinued |
| 17 | 83396M |
КРЫШКА COVER |
1 | discontinued |
| 18 | 99971M |
РАБОЧЕЕ КОЛЕСО IMPELLER |
1 | |
| 19 | 83398M |
ПРОКЛАДКА GASKET |
1 | superseded |
| 2 | 11876M |
КРЫШКА COVER |
1 | discontinued |
| 20 | 83399M |
ПРОКЛАДКА GASKET |
1 | superseded |
| 21 | 83401M |
БАЗА BASE |
1 | discontinued |
| 22 | 82354M |
ПИН-код PIN |
3 | discontinued |
| 23 | 83402M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 24 | 84057M |
БОЛТ BOLT |
2 | discontinued |
| 25 | 82468M |
БОЛТ BOLT |
2 | superseded |
| 26 | 82217M |
ШАЙБА WASHER |
4 | discontinued |
| 27 | 82356M |
ПИН-дюбель PIN Dowel |
1 | discontinued |
| 28 | 83403M |
ВСТАВИТЬ INSERT |
1 | discontinued |
| 29 | 83448M |
ЛИЦЕВАЯ НАКЛЕЙКА [M-018524/ML-333281] И ВВЕРХ FACE PLATE [M-018524/ML-333281] & Up |
1 | discontinued |
| 29 | 83400M |
ЛИЦЕВАЯ НАКЛАДКА [M-018523/ML-333280] И НИЖЕ FACE PLATE [M-018523/ML-333280] & Below |
1 | discontinued |
| 3 | 99968M |
КАП CAP |
1 | discontinued |
| 30 | 81426M |
УПЛОТНЕНИЕ SEAL |
1 | |
| 31 | 83404M |
ПРИВОДНОЙ ВАЛ (КОРОТКИЙ) DRIVESHAFT (SHORT) |
1 | discontinued |
| 31 | 83405M |
ПРИВОДНОЙ ВАЛ (ДЛИННЫЙ) DRIVESHAFT (LONG) |
1 | discontinued |
| 31 | 92610M |
ПРИВОДНОЙ ВАЛ (СУПЕР ДЛИННЫЙ) DRIVESHAFT (SUPER LONG) |
1 | discontinued |
| 32 | 82233M |
УПЛОТНИТЕЛЬНОЕ масло SEAL Oil |
2 | superseded |
| 33 | 83407M |
УПОРНАЯ ШАЙБА THRUST WASHER |
1 | discontinued |
| 34 | 83408M |
ПОДШИПНИК Игольчатый BEARING Needle |
1 | discontinued |
| 35 | 83409M |
РУКАВ SLEEVE |
1 | discontinued |
| 36 | 83410M |
ПОДШИПНИК Игольчатый BEARING Needle |
1 | discontinued |
| 37 | 83411M |
ПОДШИПНИК Упорный BEARING Thrust |
1 | discontinued |
| 38 | 83412M |
ПРОКЛАДКА (0,70 ММ) SHIM (0.70MM) |
AR | superseded |
| 38 | 83413M |
ПРОКЛАДКА (0,75 ММ) SHIM (0.75MM) |
AR | discontinued |
| 38 | 83414M |
ПРОКЛАДКА (0,80 ММ) SHIM (0.80MM) |
AR | discontinued |
| 38 | 83415M |
ПРОКЛАДКА (0,85 ММ) SHIM (0.85MM) |
AR | discontinued |
| 39 | 83416M |
ПОДШИПНИК РОЛИК BEARING Roller |
1 | superseded |
| 4 | 99969M |
КОРПУС ШЕСТЕРНИ В СБОРЕ (НИЖНИЙ) GEAR HOUSING ASSEMBLY (LOWER) |
1 | discontinued |
| 40 | 99972M |
Шестерня Шестерня GEAR Pinion |
1 | superseded |
| 41 | 19259M |
КОЛЬЦО Snap RING Snap |
1 | discontinued |
| 42 | 83419M |
СЛЕДУЮЩАЯ Кэм FOLLOWER Cam |
1 | discontinued |
| 43 | 83420M |
ПОДШИПНИК РОЛИК BEARING Roller |
1 | discontinued |
| 44 | 83421M |
ПРОКЛАДКА (0,7 ММ) SHIM (0.7MM) |
AR | discontinued |
| 44 | 83422M |
ПРОКЛАДКА (0,8 ММ) SHIM (0.8MM) |
AR | discontinued |
| 44 | 83423M |
ПРОКЛАДКА (0,9 ММ) SHIM (0.9MM) |
AR | discontinued |
| 44 | 83424M |
ПРОКЛАДКА (1,0 ММ) SHIM (1.0MM) |
AR | discontinued |
| 44 | 83425M |
ПРОКЛАДКА (1,1 ММ) SHIM (1.1MM) |
AR | discontinued |
| 44 | 83426M |
ПРОКЛАДКА (1,2 ММ) SHIM (1.2MM) |
AR | discontinued |
| 45 | 99973M |
ГИР Вперед GEAR Forward |
1 | superseded |
| 46 | 99974M |
ГРЕНДОВЫЙ ВАЛ PROPELLER SHAFT |
1 | discontinued |
| 47 | 81475M |
СЛАЙД SLIDE |
1 | discontinued |
| 48 | 81903M |
ПИН-код PIN |
1 | discontinued |
| 49 | 81474M |
КОЛЬЦО RING |
1 | discontinued |
| 5 | 83391M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 50 | 81473M |
СЦЕПЛЕНИЕ CLUTCH |
1 | superseded |
| 51 | 83429M |
ВЕСНА SPRING |
1 | discontinued |
| 52 | 19260M |
ШАЙБА [M-018524/ML-333281] И выше WASHER [M-018524/ML-333281] & Up |
1 | discontinued |
| 52 | 83430M |
ШАЙБА [M-018523/ML-333280] и ниже WASHER [M-018523/ML-333280] & Below |
1 | discontinued |
| 53 | 99975M |
Шестерня Реверс GEAR Reverse |
1 | superseded |
| 54 | 83432M |
ПРОКЛАДКА (1,8 ММ) SHIM (1.8MM) |
AR | discontinued |
| 54 | 83433M |
ПРОКЛАДКА (1,9 ММ) SHIM (1.9MM) |
AR | discontinued |
| 54 | 83434M |
ПРОКЛАДКА (2,0 ММ) SHIM (2.0MM) |
AR | discontinued |
| 54 | 83435M |
ПРОКЛАДКА (2,1 ММ) SHIM (2.1MM) |
AR | discontinued |
| 54 | 83436M |
ПРОКЛАДКА (2,2 ММ) SHIM (2.2MM) |
AR | discontinued |
| 54 | 83437M |
ПРОКЛАДКА (2,3 ММ) SHIM (2.3MM) |
AR | discontinued |
| 54 | 83438M |
ПРОКЛАДКА (2,4 ММ) SHIM (2.4MM) |
AR | discontinued |
| 54 | 83439M |
ПРОКЛАДКА (2,5 ММ) SHIM (2.5MM) |
AR | discontinued |
| 55 | 83440M |
ПОДШИПНИК Шаровой BEARING Ball |
1 | discontinued |
| 56 | 82229M |
УПЛОТНИТЕЛЬНОЕ масло SEAL Oil |
2 | discontinued |
| 57 | 83441M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 58 | 83442M |
КАП CAP |
1 | discontinued |
| 59 | 83444M |
КЛЮЧ KEY |
1 | discontinued |
| 6 | 95632M |
ПРОБКА Сливная PLUG Drain |
1 | superseded |
| 60 | 95416M |
БОЛТ BOLT |
6 | discontinued |
| 61 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
6 | discontinued |
| 62 | 83451M |
ТРУБКА ДЛЯ ВОДЫ (КОРОТКАЯ) TUBE Water (SHORT) |
1 | discontinued |
| 62 | 83452M |
ТРУБКА ДЛЯ ВОДЫ (ДЛИННАЯ) TUBE Water (LONG) |
1 | discontinued |
| 62 | 83903M |
ТРУБКА ДЛЯ ВОДЫ (СУПЕР ДЛИННАЯ) TUBE Water (SUPER LONG) |
1 | discontinued |
| 63 | 81852M |
ШАЙБА WASHER |
1 | discontinued |
| 64 | 81989M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 65 | 81427M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 66 | 14279M |
ОПОРНАЯ ГАЙКА PROP NUT |
1 | discontinued |
| 67 | 83454M |
ШПИЛЬНИК COTTER PIN |
1 | superseded |
| 68 | 83447M |
ВОЛНОВАЯ ШАЙБА WAVE WASHER |
1 | discontinued |
| 69 | 99976M |
ПИН-диск PIN Drive |
1 | discontinued |
| 7 | 81987M |
ПРОКЛАДКА GASKET |
3 | superseded |
| 70 | 99977M |
КРЫШКА COVER |
1 | discontinued |
| 71 | 99980M |
СИДЕНЬЕ SEAT |
1 | discontinued |
| 72 | 84367M |
ВИНТ SCREW |
1 | discontinued |
| 73 | 815117M |
АНОД [M-018524/ML-333281] И выше ANODE [M-018524/ML-333281] & Up |
1 | discontinued |
| 73 | 99978M |
АНОД [M-018523/ML-333280] и ниже ANODE [M-018523/ML-333280] & Below |
1 | superseded |
| 74 | 99979M |
БОЛТ BOLT |
1 | discontinued |
| 75 | 82364M |
ПИН-дюбель PIN Dowel |
2 | discontinued |
| 76 | 18852M |
АНОД [M-015221/ML-327508] И выше ANODE [M-015221/ML-327508] & Up |
1 | discontinued |
| 77 | 91725M |
БОЛТ [M-015221/ML-327508] и выше BOLT [M-015221/ML-327508] & Up |
2 | superseded |
| 78 | 82214M |
ШАЙБА [M-015221/ML-327508] И выше WASHER [M-015221/ML-327508] & Up |
2 | discontinued |
| 79 | 83884M |
НАСОС ДЛЯ Воды - Хром PUMP KIT Water - Chrome |
1 | discontinued |
| 8 | 83392M |
ВИНТ SCREW |
1 | discontinued |
| 80 | 83449M |
ВСТАВИТЬ INSERT |
1 | discontinued |
| 81 | 83450M |
ВНУТРЕННЯЯ ПЛАСТИНА INNER PLATE |
1 | discontinued |
| 82 | 83448M |
ЛИЦЕВАЯ ПЛИТА FACE PLATE |
1 | discontinued |
| 83 | 95633M |
ПРОБКА (ПРОВЕРКА ВОДЫ) PLUG (WATER CHECK) |
1 | superseded |
| 9 | 95610M |
ПРОКЛАДКА GASKET |
1 | superseded |
