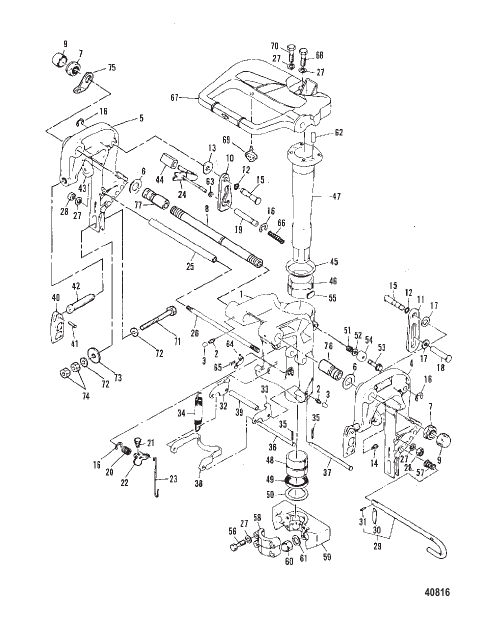

CLAMP AND SWIVEL BRACKET/REVERSE LOCK
Parts (85)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9821M |
КРОНШТЕЙН [M-015221/ML-327508] И выше BRACKET [M-015221/ML-327508] & Up |
1 | discontinued |
| 1 | 6996M |
КРОНШТЕЙН [M-015220/ML-327507] и ниже BRACKET [M-015220/ML-327507] & Below |
1 | discontinued |
| 10 | 14278M |
СТОП STOP |
1 | discontinued |
| 11 | 42441M |
СТОП STOP |
1 | discontinued |
| 12 | 83457M |
ВОЛНОВАЯ ШАЙБА WAVE WASHER |
2 | discontinued |
| 13 | 83458M |
ШАЙБА WASHER |
1 | discontinued |
| 14 | 43097M |
БОЛТ BOLT |
2 | discontinued |
| 15 | 19257M |
PIN-код [M-015221/ML-327508] и выше PIN [M-015221/ML-327508] & Up |
2 | discontinued |
| 15 | 95449M |
PIN-код [M-011806/ML-320745] THRU [M-015220/ML-327507] PIN [M-011806/ML-320745] THRU [M-015220/ML-327507] |
2 | superseded |
| 15 | 83460M |
PIN-код [M-011805/ML-320744] и ниже PIN [M-011805/ML-320744] & Below |
2 | superseded |
| 16 | 83461M |
КОЛЬЦО Snap RING Snap |
5 | discontinued |
| 17 | 83462M |
ШАЙБА WASHER |
2 | discontinued |
| 18 | 95450M |
PIN-код [M-015221/ML-327508] и выше PIN [M-015221/ML-327508] & Up |
1 | discontinued |
| 18 | 83463M |
PIN-код [M-015220/ML-327507] и ниже PIN [M-015220/ML-327507] & Below |
1 | superseded |
| 19 | 83464M |
ВАЛ SHAFT |
1 | discontinued |
| 2 | 82369M |
ФИТИНГ FITTING |
4 | |
| 20 | 83465M |
ВЕСНА SPRING |
1 | discontinued |
| 21 | 82444M |
БОЛТ BOLT |
1 | superseded |
| 22 | 83467M |
РЫЧАГ LEVER |
1 | discontinued |
| 23 | 83468M |
стержень ROD |
1 | discontinued |
| 24 | 14260M |
РЫЧАГ В СБОРЕ Наклон LEVER ASSEMBLY Tilt |
1 | discontinued |
| 25 | 19258M |
ПРОСТАВКА [M-018524/ML-333281] И выше SPACER [M-018524/ML-333281] & Up |
1 | discontinued |
| 25 | 83471M |
ПРОСТАВКА [M-018523/ML-333280] и ниже SPACER [M-018523/ML-333280] & Below |
1 | superseded |
| 26 | 83472M |
ШПИЛЬКА STUD |
1 | discontinued |
| 27 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
10 | discontinued |
| 28 | 82392M |
ГАЙКА NUT |
2 | superseded |
| 29 | 814972M |
ШТИФТ В СБОРЕ Наклон PIN ASSEMBLY Tilt |
1 | superseded |
| 3 | 81439M |
КАП CAP |
4 | discontinued |
| 30 | 84044M |
СТОППЕР STOPPER |
1 | discontinued |
| 31 | 82146M |
ПИН-код PIN |
1 | discontinued |
| 32 | 83905M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 33 | 83906M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 34 | 83476M |
ВЕСНА SPRING |
2 | discontinued |
| 35 | 82128M |
ПИН-код PIN |
4 | discontinued |
| 36 | 83477M |
ПИН-код PIN |
1 | discontinued |
| 37 | 83478M |
ПИН-код PIN |
1 | discontinued |
| 38 | 83479M |
ЗАМОК НАКЛОНА TILT LOCK |
1 | discontinued |
| 39 | 83480M |
ПРОСТАВКА SPACER |
1 | discontinued |
| 4 | 9822M |
ЗАЖИМ КРОНШТЕЙН Порт CLAMP BRACKET Port |
1 | discontinued |
| 40 | 11868M |
РУЧКА HANDLE |
2 | discontinued |
| 41 | 81889M |
ПИН-код PIN |
2 | discontinued |
| 42 | 11869M |
ВИНТ SCREW |
2 | discontinued |
| 43 | 43099M |
ШАЙБА WASHER |
2 | discontinued |
| 44 | 81395M |
КРЫШКА COVER |
1 | discontinued |
| 45 | 83482M |
ШАЙБА WASHER |
1 | discontinued |
| 46 | 83483M |
ВТУЛКА BUSHING |
1 | discontinued |
| 47 | 83907M |
ВАЛ SHAFT |
1 | discontinued |
| 48 | 83485M |
ВТУЛКА BUSHING |
1 | discontinued |
| 49 | 83486M |
УПЛОТНИТЕЛЬНОЕ масло SEAL Oil |
1 | discontinued |
| 5 | 9823M |
ЗАЖИМНЫЙ КРОНШТЕЙН Правый борт [M-015221/ML-327508] И Вверх CLAMP BRACKET Starboard [M-015221/ML-327508] & Up |
1 | discontinued |
| 5 | 9684M |
ЗАЖИМНЫЙ КРОНШТЕЙН Правый борт [M-011806/ML-320745] ПРОХОДНОЙ [M-015220/ML-327507] CLAMP BRACKET Starboard [M-011806/ML-320745] THRU [M-015220/ML-327507] |
1 | superseded |
| 5 | 8929M |
ЗАЖИМНЫЙ КРОНШТЕЙН Правый борт [M-011805/ML-320744] и ниже CLAMP BRACKET Starboard [M-011805/ML-320744] & Below |
1 | superseded |
| 50 | 83487M |
ШАЙБА WASHER |
1 | discontinued |
| 51 | 83488M |
ВЕСНА SPRING |
1 | discontinued |
| 52 | 82217M |
ШАЙБА WASHER |
1 | discontinued |
| 53 | 43106M |
БОЛТ BOLT |
1 | discontinued |
| 54 | 83490M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 55 | 80633M |
ТАРЕЛКА PLATE |
1 | discontinued |
| 56 | 82468M |
БОЛТ BOLT |
4 | superseded |
| 57 | 814973M |
ПРУЖИНА [M-018524/ML-333281] и выше SPRING [M-018524/ML-333281] & Up |
1 | discontinued |
| 58 | 83491M |
ЖИЛЬЕ HOUSING |
1 | discontinued |
| 59 | 83492M |
ЖИЛЬЕ HOUSING |
1 | superseded |
| 6 | 81836M |
ШАЙБА WASHER |
2 | discontinued |
| 60 | 82397M |
ГАЙКА NUT |
2 | discontinued |
| 61 | 84429M |
ШАЙБА WASHER |
2 | discontinued |
| 62 | 82368M |
ПИН-код PIN |
2 | discontinued |
| 63 | 83493M |
ШАЙБА WASHER |
1 | discontinued |
| 64 | 83494M |
ВЕСНА SPRING |
1 | discontinued |
| 65 | 83495M |
ЗАКЛЕПКА RIVET |
1 | discontinued |
| 66 | 83909M |
ВЕСНА SPRING |
1 | discontinued |
| 67 | 83513M |
КРОНШТЕЙН BRACKET |
1 | superseded |
| 68 | 95416M |
БОЛТ BOLT |
2 | discontinued |
| 69 | 92619M |
ДЕРЖАТЕЛЬ HOLDER |
1 | discontinued |
| 7 | 81787M |
ГАЙКА NUT |
2 | superseded |
| 70 | 82466M |
БОЛТ BOLT |
2 | superseded |
| 71 | 84970M |
БОЛТ BOLT |
4 | discontinued |
| 72 | 814576M |
ШАЙБА [M-018524/ML-333281] И выше WASHER [M-018524/ML-333281] & Up |
8 | superseded |
| 72 | 82220M |
ШАЙБА [M-018523/ML-333280] и ниже WASHER [M-018523/ML-333280] & Below |
8 | discontinued |
| 73 | 81812M |
ШАЙБА WASHER |
4 | discontinued |
| 74 | 82395M |
ГАЙКА NUT |
8 | discontinued |
| 75 | 19111M |
ПЛИТА [M-015221/ML-327508] И ВВЕРХ PLATE [M-015221/ML-327508] & Up |
1 | discontinued |
| 76 | 41313M |
ВТУЛКА [M-015221/ML-327508] И выше BUSHING [M-015221/ML-327508] & Up |
2 | discontinued |
| 8 | 18974M |
БОЛТ [M-015221/ML-327508] и выше BOLT [M-015221/ML-327508] & Up |
1 | discontinued |
| 8 | 41312M |
БОЛТ [M-015220/ML-327507] и ниже BOLT [M-015220/ML-327507] & Below |
1 | discontinued |
| 9 | 81388M |
КАП CAP |
2 | superseded |
