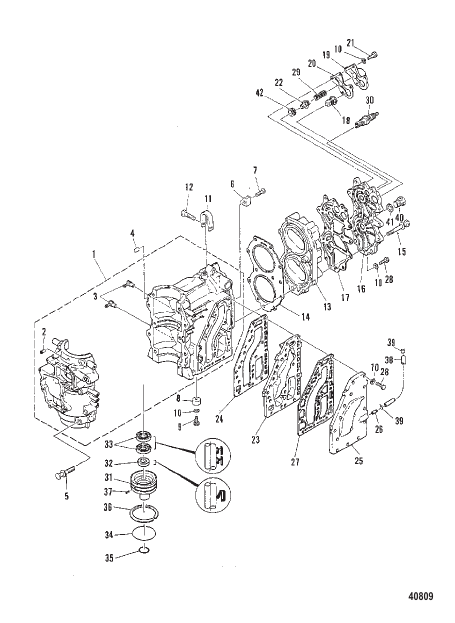

CRANKCASE AND CYLINDER HEAD
Parts (47)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 11764M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET Powerhead |
1 | discontinued |
| - | 11763M |
СИЛОВАЯ ГОЛОВКА В СБОРЕ [M-029924/ML-365385] И НИЖЕ POWERHEAD ASSEMBLY [M-029924/ML-365385] & Below |
1 | superseded |
| - | 827139M |
СИЛОВАЯ ГОЛОВКА В СБОРЕ [M-029925/ML-365386] И выше POWERHEAD ASSEMBLY [M-029925/ML-365386] & Up |
1 | discontinued |
| 1 | 9324M |
КАРТЕР В СБОРЕ CRANKCASE ASSEMBLY |
1 | superseded |
| 10 | 82214M |
ШАЙБА WASHER |
25 | discontinued |
| 11 | 11744M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 12 | 82442M |
БОЛТ BOLT |
1 | discontinued |
| 13 | 9326M |
ГОЛОВКА ЦИЛИНДРА CYLINDER HEAD |
1 | discontinued |
| 14 | 11745M |
ПРОКЛАДКА GASKET |
1 | superseded |
| 15 | 11746M |
БОЛТ BOLT |
11 | discontinued |
| 16 | 11748M |
КРЫШКА COVER |
1 | discontinued |
| 17 | 11750M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 18 | 814554M |
ТЕРМОСТАТ THERMOSTAT |
1 | superseded |
| 19 | 97705M |
КРЫШКА COVER |
1 | discontinued |
| 2 | 80122M |
ФИТИНГ FITTING |
1 | discontinued |
| 20 | 814555M |
ПРОКЛАДКА [M-029925/ML-365386] И выше GASKET [M-029925/ML-365386] & Up |
1 | superseded |
| 20 | 97706M |
ПРОКЛАДКА [M-029924/ML-365385] и ниже GASKET [M-029924/ML-365385] & Below |
1 | superseded |
| 21 | 83285M |
БОЛТ BOLT |
4 | discontinued |
| 22 | 81267M |
КЛАПАН VALVE |
1 | discontinued |
| 23 | 11753M |
КРЫШКА Выхлопная (ВНУТРЕННЯЯ) COVER Exhaust (INNER) |
1 | discontinued |
| 24 | 11754M |
ПРОКЛАДКА GASKET |
1 | superseded |
| 25 | 11755M |
КРЫШКА Выхлопная (НАРУЖНАЯ) COVER Exhaust (OUTER) |
1 | discontinued |
| 26 | 80756M |
ФИТИНГ FITTING |
1 | superseded |
| 27 | 11756M |
ПРОКЛАДКА GASKET |
1 | superseded |
| 28 | 82405M |
БОЛТ BOLT |
20 | discontinued |
| 29 | 83340M |
ВЕСНА SPRING |
1 | discontinued |
| 3 | 80727M |
ОБРАТНЫЙ КЛАПАН В СБОРЕ CHECK VALVE ASSEMBLY |
2 | discontinued |
| 30 | 53098 |
СВЕЧА ЗАЖИГАНИЯ SPARK PLUG |
2 | superseded |
| 31 | 815118M |
КОРПУС [M-018524/ML-365386] И выше HOUSING [M-018524/ML-365386] & Up |
1 | discontinued |
| 31 | 19174M |
КОРПУС [M-015221/ML-309307] ПРОХОДНОЙ [M-018523/ML-365385] HOUSING [M-015221/ML-309307] THRU [M-018523/ML-365385] |
1 | superseded |
| 31 | 11757M |
КОРПУС [M-015220/ML-309306] и ниже HOUSING [M-015220/ML-309306] & Below |
1 | superseded |
| 32 | 83347M |
УПЛОТНИТЕЛЬНОЕ масло SEAL Oil |
1 | discontinued |
| 33 | 11758M |
УПЛОТНИТЕЛЬНОЕ масло SEAL Oil |
2 | discontinued |
| 34 | 11759M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 35 | 83348M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 36 | 11760M |
КОЛЬЦО Snap RING Snap |
1 | discontinued |
| 37 | 82145M |
ПИН-код PIN |
1 | discontinued |
| 38 | 91668M |
ШЛАНГ HOSE |
1 | superseded |
| 39 | 82047M |
ЗАЖИМ CLAMP |
2 | discontinued |
| 4 | 82368M |
ПИН-код PIN |
2 | discontinued |
| 40 | 81926M |
ПРОБКА PLUG |
1 | discontinued |
| 41 | 81990M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 5 | 41838M |
БОЛТ BOLT |
10 | discontinued |
| 6 | 83330M |
АНОД ANODE |
1 | discontinued |
| 7 | 82168M |
ВИНТ SCREW |
1 | discontinued |
| 8 | 14277M |
АНОД ANODE |
1 | superseded |
| 9 | 91725M |
БОЛТ BOLT |
1 | superseded |
