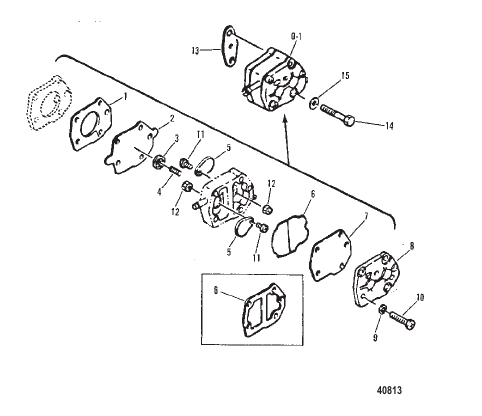

FUEL PUMP
Parts (18)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 11764M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET Powerhead |
1 | discontinued |
| 0-1 | 43113M |
НАСОС В СБОРЕ Топливный PUMP ASSEMBLY Fuel |
1 | superseded |
| 1 | 80613M |
ПРОКЛАДКА GASKET |
1 | superseded |
| 10 | 82522M |
ВИНТ SCREW |
3 | discontinued |
| 11 | 41889M |
ВИНТ (M3 x 5) SCREW (M3 x 5) |
2 | discontinued |
| 12 | 82537M |
ГАЙКА NUT |
2 | discontinued |
| 13 | 80757M |
ПРОКЛАДКА GASKET |
1 | superseded |
| 14 | 82428M |
БОЛТ BOLT |
2 | superseded |
| 15 | 82214M |
ШАЙБА WASHER |
2 | discontinued |
| 2 | 80606M |
ДИАФРАГМА DIAPHRAGM |
1 | |
| 3 | 80611M |
ТАРЕЛКА PLATE |
1 | discontinued |
| 4 | 80610M |
ВЕСНА SPRING |
1 | discontinued |
| 5 | 41888M |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
2 | |
| 6 | 80614M |
ПРОКЛАДКА [M-011806/ML-320745] И выше GASKET [M-011806/ML-320745] & Up |
1 | superseded |
| 6 | 43095M |
ПРОКЛАДКА [M-011805/ML-320744] и ниже GASKET [M-011805/ML-320744] & Below |
1 | discontinued |
| 7 | 84141M |
ДИАФРАГМА DIAPHRAGM |
1 | |
| 8 | 43096M |
КРЫШКА COVER |
1 | superseded |
| 9 | 82208M |
ШАЙБА WASHER |
3 | superseded |
