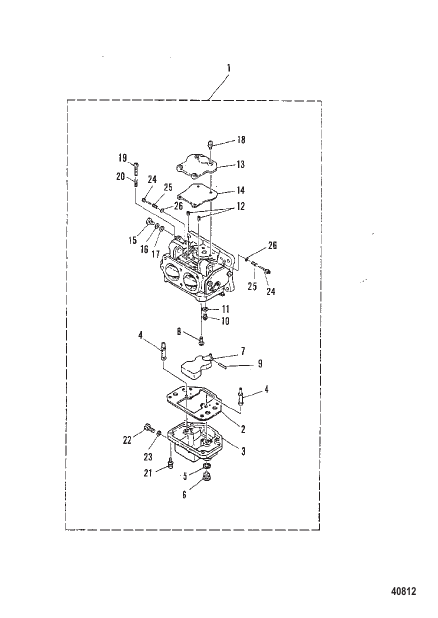

CARBURETOR
Parts (31)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 11810M |
РЕМОНТНЫЙ КОМПЛЕКТ REPAIR KIT |
1 | superseded |
| - | 11764M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET Powerhead |
1 | discontinued |
| 1 | 9332M |
КАРБЮРАТОР [M-029924/ML-365385] и ниже CARBURETOR [M-029924/ML-365385] & Below |
1 | superseded |
| 1 | 827145M |
КАРБЮРАТОР [M-029925/ML-365386] И выше CARBURETOR [M-029925/ML-365386] & Up |
1 | discontinued |
| 10 | 11807M |
СЕДЛО КЛАПАНА В СБОРЕ [M-029924/ML-365385] И НИЖЕ VALVE SEAT ASSEMBLY [M-029924/ML-365385] & Below |
1 | superseded |
| 10 | 827146M |
Клапан SEAT [M-029925/ML-365386] и выше SEAT Valve [M-029925/ML-365386] & Up |
1 | discontinued |
| 11 | 80261M |
ШАЙБА WASHER |
1 | discontinued |
| 12 | 11808M |
ПИЛОТНЫЙ РЕАКТИВ (#84) PILOT JET (#84) |
2 | discontinued |
| 13 | 11809M |
КРЫШКА COVER PLATE |
1 | discontinued |
| 14 | 11795M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 15 | 83523M |
ВИНТ SCREW |
1 | discontinued |
| 16 | 82208M |
ШАЙБА WASHER |
1 | superseded |
| 17 | 82211M |
ШАЙБА WASHER |
1 | discontinued |
| 18 | 11796M |
ВИНТ (M4 x 14) SCREW (M4 x 14) |
4 | discontinued |
| 19 | 80738M |
ВИНТ Холостого хода [M-029924/ML-365385] и ниже SCREW Idle Speed [M-029924/ML-365385] & Below |
1 | discontinued |
| 19 | 827147M |
ВИНТ [M-029925/ML-365386] и вверх SCREW [M-029925/ML-365386] & Up |
1 | discontinued |
| 2 | 11792M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 20 | 80437M |
ВЕСНА SPRING |
1 | discontinued |
| 21 | 94813M |
ВИНТ SCREW |
4 | discontinued |
| 22 | 11798M |
ПРОБКА Сливная PLUG Drain |
2 | discontinued |
| 23 | 11799M |
ПРОКЛАДКА GASKET |
2 | discontinued |
| 24 | 11800M |
ВИНТ SCREW |
2 | discontinued |
| 25 | 11801M |
ВЕСНА SPRING |
2 | discontinued |
| 26 | 11802M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | |
| 3 | 11803M |
ПОПЛАВКА ЧАША FLOAT BOWL |
1 | discontinued |
| 4 | 11804M |
ГЛАВНОЕ СОПЛА MAIN NOZZLE |
2 | discontinued |
| 5 | 80267M |
ПРОКЛАДКА GASKET |
2 | superseded |
| 6 | 11805M |
ГЛАВНЫЙ ЖАКЕТ (#150) MAIN JET (#150) |
2 | discontinued |
| 7 | 95448M |
ПОПЛАВОК В СБОРЕ FLOAT ASSEMBLY |
1 | discontinued |
| 8 | 11806M |
ВИНТ SCREW |
1 | superseded |
| 9 | 11794M |
ПИН-код PIN |
1 | discontinued |
