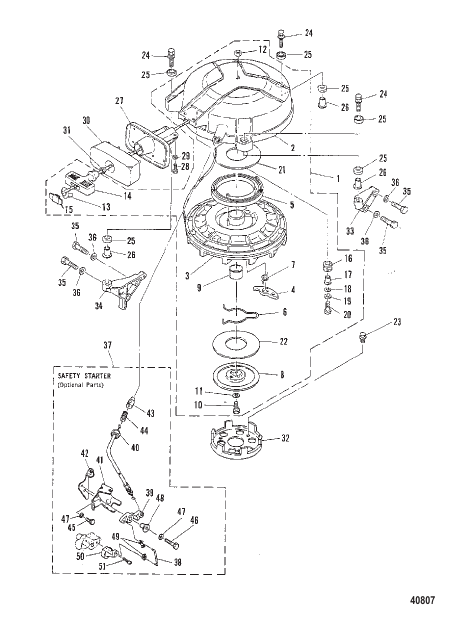

RECOIL STARTER
Parts (54)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 815113M |
СТАРТЕР В СБОРЕ Откат [M-018524/ML-333281] и вверх STARTER ASSEMBLY Recoil [M-018524/ML-333281] & Up |
1 | discontinued |
| 1 | 9320M |
СТАРТЕР В СБОРЕ Откат [M-018523/ML-333280] и ниже STARTER ASSEMBLY Recoil [M-018523/ML-333280] & Below |
1 | superseded |
| 10 | 82441M |
БОЛТ BOLT |
1 | discontinued |
| 11 | 11702M |
ШАЙБА WASHER |
1 | discontinued |
| 12 | 82383M |
ГАЙКА NUT |
1 | discontinued |
| 13 | 12066A9 |
ВЕРЕВКА ROPE |
1 | superseded |
| 14 | 814491M |
РУЧКА [M-018524/ML-333281] И ВВЕРХ HANDLE [M-018524/ML-333281] & Up |
1 | discontinued |
| 14 | 80063M |
РУЧКА [M-018523/ML-333280] и ниже HANDLE [M-018523/ML-333280] & Below |
1 | superseded |
| 15 | 814492M |
КРЫШКА [M-018524/ML-333281] И Вверх COVER [M-018524/ML-333281] & Up |
1 | discontinued |
| 15 | 41882M |
КРЫШКА [M-018523/ML-333280] и ниже COVER [M-018523/ML-333280] & Below |
1 | discontinued |
| 16 | 11704M |
РОЛИК ROLLER |
1 | discontinued |
| 17 | 11705M |
ВТУЛКА BUSHING |
1 | discontinued |
| 18 | 11706M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 19 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 2 | 9321M |
КОРПУС Стартер HOUSING Starter |
1 | superseded |
| 20 | 82405M |
БОЛТ BOLT |
1 | discontinued |
| 21 | 11707M |
ШАЙБА WASHER |
1 | discontinued |
| 22 | 11703M |
Ошейник COLLAR |
1 | discontinued |
| 23 | 93110M |
БОЛТ BOLT |
3 | discontinued |
| 24 | 11709M |
БОЛТ BOLT |
3 | discontinued |
| 25 | 11710M |
ВТУЛКА BUSHING |
6 | discontinued |
| 26 | 84489M |
Ошейник COLLAR |
3 | discontinued |
| 27 | 11711M |
РУКОВОДСТВО GUIDE |
1 | discontinued |
| 28 | 84247M |
БОЛТ BOLT |
2 | superseded |
| 29 | 82214M |
ШАЙБА WASHER |
2 | discontinued |
| 3 | 11695M |
СТАРТЕР В СБОРЕ STARTER ASSEMBLY Recoil |
1 | discontinued |
| 30 | 11712M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 31 | 98968M |
ВТУЛКА GROMMET |
1 | discontinued |
| 32 | 11708M |
ШКИВ PULLEY |
1 | discontinued |
| 33 | 11713M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 34 | 11714M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 35 | 82442M |
БОЛТ BOLT |
4 | discontinued |
| 36 | 82217M |
ШАЙБА WASHER |
4 | discontinued |
| 37 | 11715M |
СТАРТОВЫЙ КОМПЛЕКТ STARTER KIT Recoil |
1 | discontinued |
| 38 | 11716M |
ССЫЛКА LINK |
1 | discontinued |
| 39 | 11717M |
ARM ARM |
1 | discontinued |
| 4 | 11696M |
ПАВЛ PAWL |
1 | discontinued |
| 40 | 11718M |
КАБЕЛЬНАЯ СБОРКА CABLE ASSEMBLY |
1 | discontinued |
| 41 | 11719M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 42 | 11720M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 43 | 81106M |
ПОРШЕНЬ PLUNGER |
1 | discontinued |
| 44 | 82079M |
ВЕСНА SPRING |
1 | discontinued |
| 45 | 83285M |
БОЛТ BOLT |
1 | discontinued |
| 46 | 84237M |
БОЛТ BOLT |
1 | superseded |
| 47 | 82214M |
ШАЙБА WASHER |
2 | discontinued |
| 48 | 94503M |
Ошейник COLLAR |
1 | discontinued |
| 49 | 81191M |
КРОНШТЕЙН BRACKET |
2 | superseded |
| 5 | 11697M |
ВЕСНА SPRING |
1 | superseded |
| 50 | 11721M |
РЫЧАГ управления переключением передач LEVER Shift Control |
1 | discontinued |
| 51 | 11722M |
ВИНТ SCREW |
1 | superseded |
| 6 | 11698M |
ВЕСНА SPRING |
1 | discontinued |
| 7 | 11699M |
ВЕСНА SPRING |
1 | discontinued |
| 8 | 11700M |
ТАРЕЛКА PLATE |
1 | discontinued |
| 9 | 11701M |
ВТУЛКА BUSHING |
1 | discontinued |
