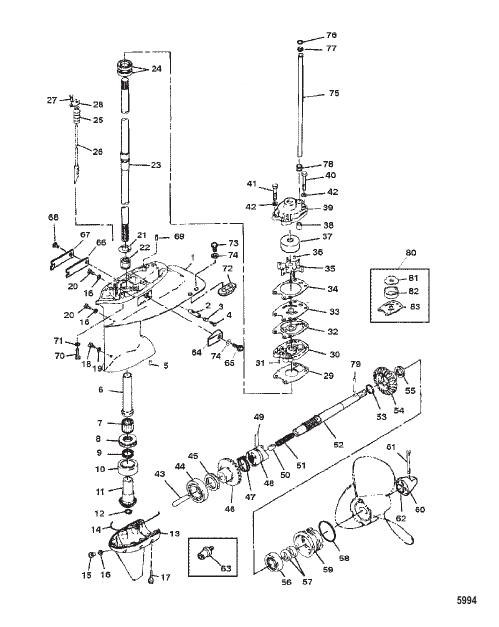

Gear Housing Assembly
Parts (120)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 9839M |
КОРПУС РЕДУКТОРА В СБОРЕ (короткий) GEAR HOUSING ASSEMBLY (Short) |
1 | discontinued |
| - | 9840M |
КОРПУС ШЕСТЕРНИ В СБОРЕ (длинный) GEAR HOUSING ASSEMBLY (Long) |
1 | discontinued |
| - | 99981T |
РЕМКОМПЛЕКТ Водяной насос REPAIR KIT Water Pump |
1 | discontinued |
| - | 99982M |
КОМПЛЕКТ ПРОКЛАДОК Нижний блок GASKET SET Lower Unit |
1 | discontinued |
| 1 | 9826M |
КОРПУС ШЕСТЕРНИ В СБОРЕ [M-001328] и выше GEAR HOUSING ASSEMBLY [M-001328] & Up |
1 | discontinued |
| 1 | 9826M |
КОРПУС ШЕСТЕРНИ В СБОРЕ [ML-305233] и выше GEAR HOUSING ASSEMBLY [ML-305233] & Up |
1 | discontinued |
| 1 | NLA |
Корпус редуктора [M-001327] и ниже больше не доступен No Longer Available Gear Housing [M-001327] & Below |
1 | |
| 1 | NLA |
Корпус редуктора [ML-305232] и ниже больше не доступен No Longer Available Gear Housing [ML-305232] & Below |
1 | |
| 10 | 83416T |
ПОДШИПНИК РОЛИК BEARING Roller |
1 | discontinued |
| 11 | 99972T |
Шестерня Шестерня GEAR Pinion |
1 | discontinued |
| 12 | 19259M |
КОЛЬЦО Snap RING Snap |
1 | discontinued |
| 13 | 99969M |
КОРПУС ШЕСТЕРНИ В СБОРЕ (нижний) GEAR HOUSING ASSEMBLY (Lower) |
1 | discontinued |
| 14 | 83391M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 15 | 95632M |
ПРОБКА Сливная PLUG Drain |
1 | superseded |
| 16 | 81987 |
ПРОКЛАДКА GASKET |
3 | |
| 17 | 82476M |
БОЛТ BOLT |
9 | discontinued |
| 18 | 83392M |
ВИНТ SCREW |
1 | discontinued |
| 19 | 95610 |
ПРОКЛАДКА GASKET |
1 | |
| 2 | 11876M |
КРЫШКА COVER |
1 | discontinued |
| 20 | 81924M |
ПРОБКА PLUG |
2 | discontinued |
| 21 | 83407M |
УПОРНАЯ ШАЙБА THRUST WASHER |
1 | discontinued |
| 22 | 83408M |
ПОДШИПНИК Игольчатый BEARING Needle |
1 | discontinued |
| 23 | 83404M |
ПРИВОДНОЙ ВАЛ (короткий) DRIVESHAFT (Short) |
1 | discontinued |
| 23 | 83405M |
ПРИВОДНОЙ ВАЛ (длинный) DRIVESHAFT (Long) |
1 | discontinued |
| 23 | 92610M |
ПРИВОДНОЙ ВАЛ (Сверхдлинный) DRIVESHAFT (Super Long) |
1 | discontinued |
| 24 | 854017 |
УПЛОТНИТЕЛЬНОЕ масло SEAL Oil |
2 | |
| 25 | 82881M |
ЗАГРУЗКА BOOT |
1 | discontinued |
| 26 | 83445M |
Shift CAM (короткий) SHIFT CAM (Short) |
1 | discontinued |
| 26 | 83446M |
КУЛАЧОК СДВИГА (Длинный) SHIFT CAM (Long) |
1 | discontinued |
| 26 | 92615M |
SHIFT CAM (Супер длинный) SHIFT CAM (Super Long) |
1 | discontinued |
| 27 | 84088M |
ВИНТ (M6 x 10) SCREW (M6 x 10) |
1 | discontinued |
| 28 | 82882M |
ТАРЕЛКА PLATE |
1 | discontinued |
| 29 | 83402M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 3 | 99968M |
КАП CAP |
1 | discontinued |
| 30 | 83401M |
БАЗА BASE |
1 | discontinued |
| 31 | 82354M |
ПИН-код PIN |
3 | discontinued |
| 32 | 83399M |
ПРОКЛАДКА GASKET |
1 | superseded |
| 33 | 83400M |
ЛИЦЕВАЯ ПЛИТА FACE PLATE |
1 | discontinued |
| 34 | 83398 |
ПРОКЛАДКА GASKET |
1 | |
| 35 | 99971M |
РАБОЧЕЕ КОЛЕСО IMPELLER |
1 | |
| 36 | 83444M |
КЛЮЧ KEY |
1 | discontinued |
| 37 | 83403M |
ВСТАВИТЬ INSERT |
1 | discontinued |
| 38 | 81426M |
УПЛОТНЕНИЕ SEAL |
1 | |
| 39 | 83396M |
КРЫШКА COVER |
1 | discontinued |
| 4 | 11878M |
ВИНТ SCREW |
1 | discontinued |
| 40 | 84057M |
БОЛТ BOLT |
2 | discontinued |
| 41 | 85277614 |
БОЛТ BOLT |
2 | discontinued |
| 42 | 82217M |
ШАЙБА WASHER |
4 | discontinued |
| 43 | 83419M |
СЛЕДУЮЩАЯ Кэм FOLLOWER Cam |
1 | discontinued |
| 44 | 83420M |
ПОДШИПНИК РОЛИК BEARING Roller |
1 | discontinued |
| 45 | 83421M |
ПРОКЛАДКА (0,7 ММ) SHIM (0.7MM) |
AR | discontinued |
| 45 | 83422M |
ПРОКЛАДКА (0,8 ММ) SHIM (0.8MM) |
AR | discontinued |
| 45 | 83423M |
ПРОКЛАДКА (0,9 ММ) SHIM (0.9MM) |
AR | discontinued |
| 45 | 83424M |
ПРОКЛАДКА (1,0 ММ) SHIM (1 .0MM) |
AR | discontinued |
| 45 | 83425M |
ПРОКЛАДКА (1,1 ММ) SHIM (1 .1MM) |
AR | discontinued |
| 45 | 83426M |
ПРОКЛАДКА (1,2 ММ) SHIM (1 .2MM) |
AR | discontinued |
| 46 | 99973T |
ГИР Вперед GEAR Forward |
1 | discontinued |
| 47 | 81474M |
КОЛЬЦО RING |
1 | discontinued |
| 48 | 81473T |
СЦЕПЛЕНИЕ CLUTCH |
1 | |
| 49 | 81903M |
ПИН-код PIN |
1 | discontinued |
| 5 | 82356M |
ПИН-дюбель PIN Dowel |
1 | discontinued |
| 50 | 81475M |
СЛАЙД SLIDE |
1 | discontinued |
| 51 | 83429M |
ВЕСНА SPRING |
1 | discontinued |
| 52 | 11879M |
ГРЕНДОВЫЙ ВАЛ PROPELLER SHAFT |
1 | discontinued |
| 53 | 19260M |
ШАЙБА [M-001328] И выше WASHER [M-001328] & Up |
1 | discontinued |
| 53 | 19260M |
ШАЙБА [ML-305233] И выше WASHER [ML-305233] & Up |
1 | discontinued |
| 53 | 83430M |
ШАЙБА [M-001327] и ниже WASHER [M-001327] & Below |
1 | discontinued |
| 53 | 83430M |
ШАЙБА [ML-305232] и ниже WASHER [ML-305232] & Below |
1 | discontinued |
| 54 | 99975T |
Шестерня Реверс GEAR Reverse |
1 | discontinued |
| 55 | 83432M |
ПРОКЛАДКА (1,8 ММ) SHIM (1 .8MM) |
AR | discontinued |
| 55 | 83433M |
ПРОКЛАДКА (1,9 ММ) SHIM (1.9MM) |
AR | discontinued |
| 55 | 83434M |
ПРОКЛАДКА (2,0 ММ) SHIM (2.0MM) |
AR | discontinued |
| 55 | 83435M |
ПРОКЛАДКА (2,1 ММ) SHIM (2.1MM) |
AR | discontinued |
| 55 | 83436M |
ПРОКЛАДКА (2,2 ММ) SHIM (2.2MM) |
AR | discontinued |
| 55 | 83437M |
ПРОКЛАДКА (2,3 ММ) SHIM (2.3MM) |
AR | discontinued |
| 55 | 83438M |
ПРОКЛАДКА (2,4 ММ) SHIM (2.4MM) |
AR | discontinued |
| 55 | 83439M |
ПРОКЛАДКА (2,5 ММ) SHIM (2.5MM) |
AR | discontinued |
| 56 | 83440M |
ПОДШИПНИК Шаровой BEARING Ball |
1 | discontinued |
| 57 | 82229M |
УПЛОТНИТЕЛЬНОЕ масло SEAL Oil |
2 | discontinued |
| 58 | 83441M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 59 | 83442M |
КАП CAP |
1 | discontinued |
| 6 | 83409M |
РУКАВ SLEEVE |
1 | discontinued |
| 60 | 14279M |
ОПОРНАЯ ГАЙКА PROP NUT |
1 | discontinued |
| 61 | 95295 |
ШПИЛЬНИК COTTER PIN |
1 | |
| 62 | 83447M |
ВОЛНОВАЯ ШАЙБА WAVE WASHER |
1 | discontinued |
| 63 | 95633M |
ПРОБКА (проверка воды) PLUG (Water Check) |
1 | superseded |
| 64 | 815117M |
АНОД [M-001558] и выше ANODE [M-001558] & Up |
1 | discontinued |
| 64 | 815117M |
АНОД [ML-306213] И выше ANODE [ML-306213] & Up |
1 | discontinued |
| 64 | 99978M |
АНОД [M-001557] и ниже ANODE [M-001557] & Below |
1 | superseded |
| 64 | 99978M |
АНОД [ML-306212] и ниже ANODE [ML-306212] & Below |
1 | superseded |
| 65 | 99979M |
БОЛТ BOLT |
1 | discontinued |
| 66 | 99980M |
СИДЕНЬЕ SEAT |
1 | discontinued |
| 67 | 99977M |
КРЫШКА COVER |
1 | discontinued |
| 68 | 84367M |
ВИНТ SCREW |
1 | discontinued |
| 69 | 82364M |
ПИН-дюбель PIN Dowel |
2 | discontinued |
| 7 | 83410M |
ПОДШИПНИК Игольчатый BEARING Needle |
1 | discontinued |
| 70 | 85277615 |
БОЛТ BOLT |
6 | discontinued |
| 71 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
6 | discontinued |
| 72 | 18852M |
АНОД [M-001328] и выше ANODE [M-001328] & Up |
1 | discontinued |
| 72 | 18852M |
АНОД [ML-305233] И выше ANODE [ML-305233] & Up |
1 | discontinued |
| 73 | 826957M |
БОЛТ [M-001328] И ВВЕРХ BOLT [M-001328] & Up |
2 | discontinued |
| 73 | 826957M |
БОЛТ [ML-305233] И ВВЕРХ BOLT [ML-305233] & Up |
2 | discontinued |
| 74 | 827055M |
ШАЙБА [M-001328] И выше WASHER [M-001328] & Up |
3 | discontinued |
| 74 | 827055M |
ШАЙБА [ML-305233] И выше WASHER [ML-305233] & Up |
3 | discontinued |
| 75 | 83451M |
ТРУБКА (короткая) TUBE (Short) |
1 | discontinued |
| 75 | 83452M |
ТРУБКА (длинная) TUBE (Long) |
1 | discontinued |
| 75 | 83903M |
ТРУБКА для воды (Супер длинная) TUBE Water (Super Long) |
1 | discontinued |
| 76 | 81852M |
ШАЙБА WASHER |
1 | discontinued |
| 77 | 81989M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 78 | 81427M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 79 | 83443M |
ПИН-диск PIN Drive |
1 | |
| 8 | 83411M |
ПОДШИПНИК Упорный BEARING Thrust |
1 | discontinued |
| 80 | 83884M |
НАСОС ДЛЯ Воды - Хром PUMP KIT Water - Chrome |
1 | discontinued |
| 81 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Внутренняя пластина NOT SOLD SEPARATE Inner Plate |
1 | |
| 82 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Вставка NOT SOLD SEPARATE Insert |
1 | |
| 83 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Внешняя пластина NOT SOLD SEPARATE Outer Plate |
1 | |
| 9 | 83412M |
ПРОКЛАДКА (0,70 ММ) SHIM (0.70MM) |
AR | superseded |
| 9 | 83413M |
ПРОКЛАДКА (0,75 ММ) SHIM (0.75MM) |
AR | discontinued |
| 9 | 83414M |
ПРОКЛАДКА (0,80 ММ) SHIM (0.80MM) |
AR | discontinued |
| 9 | 83415M |
ПРОКЛАДКА (0,85 ММ) SHIM (0.85MM) |
AR | discontinued |
