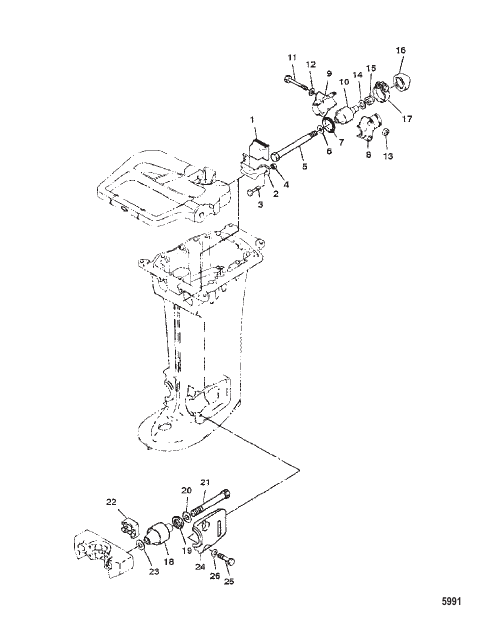

Mounting System
Parts (26)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 83496M |
ДЕМПФЕР DAMPER |
1 | discontinued |
| 10 | 83910T |
МОНТАЖ MOUNT |
2 | superseded |
| 11 | 83506M |
БОЛТ BOLT |
4 | discontinued |
| 12 | 82217M |
ШАЙБА WASHER |
4 | discontinued |
| 13 | 82382M |
ГАЙКА NUT |
4 | discontinued |
| 14 | 83504M |
ШАЙБА WASHER |
2 | discontinued |
| 15 | 84295M |
ГАЙКА NUT |
2 | discontinued |
| 16 | 83912M |
КАП CAP |
2 | discontinued |
| 17 | 827148M |
ЗАЖИМ CLAMP |
2 | discontinued |
| 18 | 83914M |
КРЕПЛЕНИЕ ДЕМПФЕРА MOUNT DAMPER |
2 | superseded |
| 19 | 81860M |
ШАЙБА WASHER |
2 | discontinued |
| 2 | 83497M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 20 | 83915M |
ШАЙБА WASHER |
2 | discontinued |
| 21 | 83510M |
БОЛТ BOLT |
2 | discontinued |
| 22 | 83511M |
ДЕМПФЕР DAMPER |
1 | discontinued |
| 23 | 84429M |
ШАЙБА WASHER |
2 | discontinued |
| 24 | 83512M |
КРЫШКА COVER |
2 | discontinued |
| 25 | 85277615 |
БОЛТ BOLT |
4 | discontinued |
| 26 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
4 | discontinued |
| 3 | 82405M |
БОЛТ BOLT |
2 | discontinued |
| 4 | 8528163 |
ГАЙКА NUT |
2 | discontinued |
| 5 | 83501M |
БОЛТ BOLT |
2 | discontinued |
| 6 | 83911M |
ШАЙБА WASHER |
2 | discontinued |
| 7 | 83505M |
УПЛОТНЕНИЕ SEAL |
2 | discontinued |
| 8 | 83498M |
КРЫШКА COVER |
2 | discontinued |
| 9 | 83499M |
КРЫШКА COVER |
2 | discontinued |
