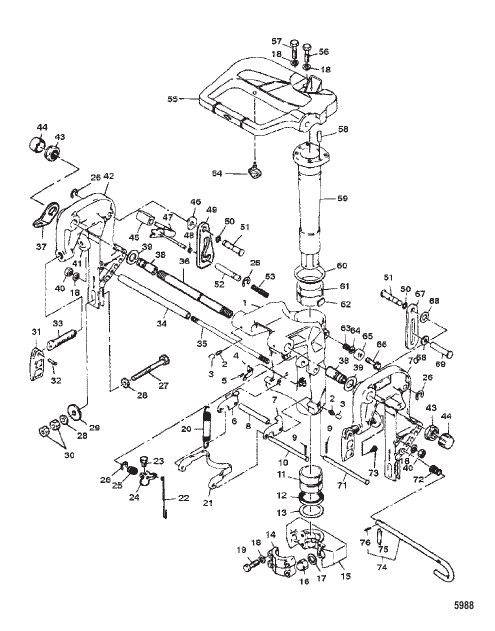

Clamp and Swivel Bracket/Reverse Lock

Clamp and Swivel Bracket/Reverse Lock

Parts (85)

#Part NumberDescriptionQtyStatus
1 9821M КРОНШТЕЙН [M-001328] И Вверх
BRACKET [M-001328] & Up
1 discontinued
1 9821M КРОНШТЕЙН [ML-305233] И выше
BRACKET [ML-305233] & Up
1 discontinued
1 6996M КРОНШТЕЙН [M-001327] и ниже
BRACKET [M-001327] & Below
1 discontinued
1 6996M КРОНШТЕЙН [ML-305232] и ниже
BRACKET [ML-305232] & Below
1 discontinued
10 83477M ПИН-код
PIN
1 discontinued
11 83485M ВТУЛКА
BUSHING
1 discontinued
12 83486M УПЛОТНИТЕЛЬНОЕ масло
SEAL Oil
1 discontinued
13 83487M ШАЙБА
WASHER
1 discontinued
14 83491M ЖИЛЬЕ
HOUSING
1 discontinued
15 83492T ЖИЛЬЕ
HOUSING
1 discontinued
16 82397M ГАЙКА
NUT
2 discontinued
17 84429M ШАЙБА
WASHER
4 discontinued
18 82215M СТОПОРНАЯ ШАЙБА
LOCKWASHER
10 discontinued
19 85277614 БОЛТ
BOLT
4 discontinued
2 82369M ФИТИНГ
FITTING
4
20 83476M ВЕСНА
SPRING
2 discontinued
21 83479M ЗАМОК НАКЛОНА
TILT LOCK
1 discontinued
22 83468M стержень
ROD
1 discontinued
23 84313M БОЛТ
BOLT
1 discontinued
24 83467M РЫЧАГ
LEVER
1 discontinued
25 83465M ВЕСНА
SPRING
1 discontinued
26 83461M КОЛЬЦО Snap
RING Snap
5 discontinued
27 84970M БОЛТ
BOLT
4 discontinued
28 814576M ШАЙБА
WASHER
8 superseded
29 81812M ШАЙБА
WASHER
4 discontinued
3 81439M КАП
CAP
4 discontinued
30 82395M ГАЙКА
NUT
8 discontinued
31 11868M РУЧКА
HANDLE
2 discontinued
32 81889M ПИН-код
PIN
2 discontinued
33 11869M ВИНТ
SCREW
2 discontinued
34 19258M ПРОСТАВКА
SPACER
1 discontinued
35 83472M ШПИЛЬКА
STUD
1 discontinued
36 18974M БОЛТ [M-001328] И ВВЕРХ
BOLT [M-001328] & Up
1 discontinued
36 18974M БОЛТ [ML-305233] И ВВЕРХ
BOLT [ML-305233] & Up
1 discontinued
36 41312M БОЛТ [M-001327] и ниже
BOLT [M-001327] & Below
1 discontinued
36 41312M БОЛТ [ML-305232] и ниже
BOLT [ML-305232] & Below
1 discontinued
37 19111M ПЛИТА [M-001328] И ВВЕРХ
PLATE [M-001328] & Up
1 discontinued
37 19111M ПЛИТА [ML-305233] И ВВЕРХ
PLATE [ML-305233] & Up
1 discontinued
38 41313M ВТУЛКА [M-001328] и выше
BUSHING [M-001328] & Up
2 discontinued
38 41313M ВТУЛКА [ML-305233] И выше
BUSHING [ML-305233] & Up
2 discontinued
39 81836M ШАЙБА
WASHER
2 discontinued
4 83494M ВЕСНА
SPRING
1 discontinued
40 82382M ГАЙКА
NUT
2 discontinued
41 43099M ШАЙБА
WASHER
2 discontinued
42 9823M ЗАЖИМ КРОНШТЕЙН Правый борт (Правый борт)
CLAMP BRACKET Starboard (Starboard)
1 discontinued
43 81787M ГАЙКА
NUT
2 superseded
44 811914M КАП
CAP
2 discontinued
45 81395M КРЫШКА
COVER
1 discontinued
46 83458M ШАЙБА
WASHER
1 discontinued
47 14260M РЫЧАГ В СБОРЕ Наклон
LEVER ASSEMBLY Tilt
1 discontinued
48 83493M ШАЙБА
WASHER
1 discontinued
49 14278M СТОП
STOP
1 discontinued
5 83495M ЗАКЛЕПКА
RIVET
1 discontinued
50 83457M ВОЛНОВАЯ ШАЙБА
WAVE WASHER
2 discontinued
51 19257M ПИН-код
PIN
2 discontinued
52 83464M ВАЛ
SHAFT
1 discontinued
53 83909M ВЕСНА
SPRING
1 discontinued
54 92619M ДЕРЖАТЕЛЬ
HOLDER
1 discontinued
55 83513M КРОНШТЕЙН
BRACKET
1 superseded
56 85277615 БОЛТ
BOLT
2 discontinued
57 82442M БОЛТ
BOLT
2 discontinued
58 82368M ПИН-код
PIN
2 discontinued
59 83907M ВАЛ
SHAFT
1 discontinued
6 83905M КРОНШТЕЙН
BRACKET
1 discontinued
60 83482M ШАЙБА
WASHER
1 discontinued
61 83483M ВТУЛКА
BUSHING
1 discontinued
62 80633M ТАРЕЛКА
PLATE
1 discontinued
63 83488M ВЕСНА
SPRING
1 discontinued
64 82217M ШАЙБА
WASHER
1 discontinued
65 83490M УПЛОТНЕНИЕ
SEAL
1 discontinued
66 43106M БОЛТ
BOLT
1 discontinued
67 42441M СТОП
STOP
1 discontinued
68 83462M ШАЙБА
WASHER
2 discontinued
69 95450M ПИН-код
PIN
1 discontinued
7 83906M КРОНШТЕЙН
BRACKET
1 discontinued
70 9822M ЗАЖИМ КРОНШТЕЙН Порт (Порт)
CLAMP BRACKET Port (Port)
1 discontinued
71 83478M ПИН-код
PIN
1 discontinued
72 814973M ПРУЖИНА [M-001558] и выше
SPRING [M-001558] & Up
1 discontinued
72 814973M ПРУЖИНА [ML-306213] И выше
SPRING [ML-306213] & Up
1 discontinued
73 43097M БОЛТ
BOLT
2 discontinued
74 814972M ШТИФТ В СБОРЕ Наклон
PIN ASSEMBLY Tilt
1 superseded
75 84044M СТОППЕР
STOPPER
1 discontinued
76 82145M ПИН-код
PIN
1 discontinued
8 83480M ПРОСТАВКА
SPACER
1 discontinued
9 82128M ПИН-код
PIN
4 discontinued
