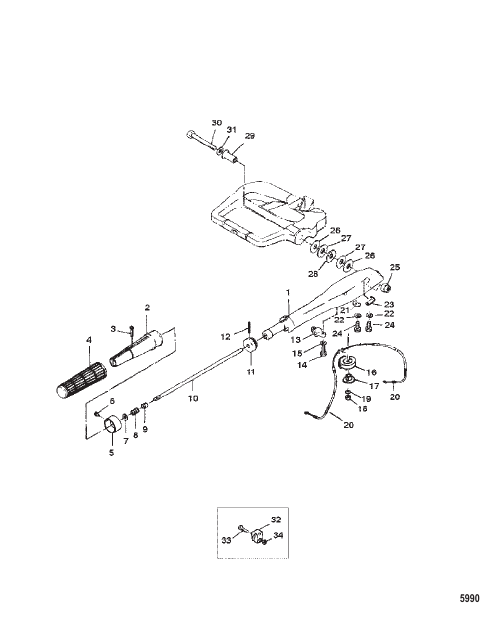

Steering Handle
Parts (35)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 11872M |
РУЧКА В СБОРЕ Рулевое управление HANDLE ASSEMBLY Steering |
1 | discontinued |
| 1 | 84971M |
РУЧКА HANDLE |
1 | discontinued |
| 10 | 83516M |
ВАЛ SHAFT |
1 | discontinued |
| 11 | 80778M |
МЕХАНИЗМ GEAR |
1 | discontinued |
| 12 | 82151M |
ПИН-код PIN |
1 | discontinued |
| 13 | 83517M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 14 | 84058M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
2 | |
| 15 | 881379 |
ШАЙБА WASHER |
2 | superseded |
| 16 | 83518M |
ШЕСТЕРНЯ PINION |
1 | discontinued |
| 17 | 83519M |
ВТУЛКА BUSHING |
1 | discontinued |
| 18 | 82389M |
ГАЙКА NUT |
1 | discontinued |
| 19 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 2 | 81585M |
ГРИП GRIP |
1 | discontinued |
| 20 | 11871M |
ПРОВОД Дроссельной заслонки WIRE Throttle |
2 | discontinued |
| 21 | 83521M |
ДЕРЖАТЕЛЬ HOLDER |
1 | discontinued |
| 22 | 82211M |
ШАЙБА WASHER |
2 | discontinued |
| 23 | 83522M |
ДЕРЖАТЕЛЬ HOLDER |
1 | discontinued |
| 24 | 84313M |
БОЛТ BOLT |
2 | discontinued |
| 25 | 81786M |
ГАЙКА NUT |
1 | discontinued |
| 26 | 81853M |
ШАЙБА WASHER |
2 | discontinued |
| 27 | 81815M |
ШАЙБА WASHER |
2 | discontinued |
| 28 | 81870M |
ШАЙБА WASHER |
1 | discontinued |
| 29 | 81950M |
ВТУЛКА BUSHING |
1 | discontinued |
| 3 | 811916M |
ВИНТ SCREW |
1 | discontinued |
| 30 | 94514M |
БОЛТ BOLT |
1 | discontinued |
| 31 | 83524M |
ШАЙБА WASHER |
1 | discontinued |
| 32 | 82895M |
ФРИКЦИОННАЯ ДЕТАЛЬ FRICTION PIECE |
1 | discontinued |
| 33 | 84058M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
1 | |
| 34 | 83056M |
ГАЙКА NUT |
1 | discontinued |
| 4 | 954971 |
РУЧКА РЕЗИНА HANDLE RUBBER |
1 | superseded |
| 5 | 11873M |
ВИНТ SCREW |
1 | discontinued |
| 6 | 81907M |
ЗАКЛЕПКА RIVET |
1 | discontinued |
| 7 | 82220M |
ШАЙБА WASHER |
1 | discontinued |
| 8 | 82095M |
ВЕСНА SPRING |
1 | discontinued |
| 9 | 81945M |
ВТУЛКА BUSHING |
1 | discontinued |
