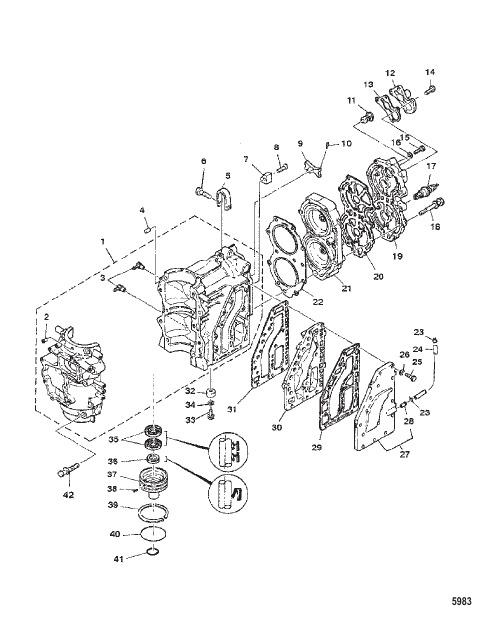

Cylinder Block and Cylinder Head
Parts (47)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 19256M |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | discontinued |
| - | 11765M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET Powerhead |
1 | discontinued |
| 1 | 9324T |
БЛОК ЦИЛИНДРОВ CYLINDER BLOCK |
1 | discontinued |
| 10 | 82522M |
ВИНТ SCREW |
2 | discontinued |
| 11 | 814554M |
ТЕРМОСТАТ THERMOSTAT |
1 | superseded |
| 12 | 19255M |
КРЫШКА COVER |
1 | discontinued |
| 13 | 83336M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 14 | 8257021 |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
4 | discontinued |
| 15 | 82405M |
БОЛТ BOLT |
5 | discontinued |
| 16 | 82214M |
ШАЙБА WASHER |
5 | discontinued |
| 17 | 82371M |
СВЕЧА ЗАЖИГАНИЯ SPARK PLUG |
2 | superseded |
| 18 | 11746M |
БОЛТ BOLT |
11 | discontinued |
| 19 | 11747M |
КРЫШКА COVER |
1 | discontinued |
| 2 | 80122M |
ФИТИНГ FITTING |
1 | discontinued |
| 20 | 11749M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 21 | 9325M |
ГОЛОВКА ЦИЛИНДРА CYLINDER HEAD |
1 | discontinued |
| 22 | 11745 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 23 | 82047M |
ЗАЖИМ (Используйте там, где это применимо) CLAMP (Use where Applicable) |
2 | discontinued |
| 24 | 82012M |
ШЛАНГ HOSE |
1 | discontinued |
| 25 | 82405M |
БОЛТ BOLT |
16 | discontinued |
| 26 | 82214M |
ШАЙБА WASHER |
16 | discontinued |
| 27 | 11755M |
КРЫШКА Выхлопная система (внешняя) COVER Exhaust (Outer) |
1 | discontinued |
| 28 | 94716M |
РАЗЪЕМ CONNECTOR |
1 | discontinued |
| 29 | 11756 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 3 | 80727M |
ОБРАТНЫЙ КЛАПАН В СБОРЕ CHECK VALVE ASSEMBLY |
2 | discontinued |
| 30 | 11753M |
КРЫШКА Выхлопная (внутренняя) COVER Exhaust (Inner) |
1 | discontinued |
| 31 | 11754 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 32 | 83394M |
АНОД ANODE |
1 | discontinued |
| 33 | 826957M |
БОЛТ BOLT |
1 | discontinued |
| 34 | 881379 |
ШАЙБА WASHER |
1 | superseded |
| 35 | 11758M |
УПЛОТНИТЕЛЬНОЕ масло SEAL Oil |
2 | discontinued |
| 36 | 189721 |
Масло SEAL [M-006124] и выше SEAL Oil [M-006124] & Up |
1 | discontinued |
| 36 | 189721 |
Масло SEAL [ML-322159] и выше SEAL Oil [ML-322159] & Up |
1 | discontinued |
| 36 | 83347M |
Масло SEAL [M-006123] и ниже SEAL Oil [M-006123] & Below |
1 | discontinued |
| 36 | 83347M |
Масло SEAL [ML-322158] и ниже SEAL Oil [ML-322158] & Below |
1 | discontinued |
| 37 | 815118M |
ЖИЛЬЕ HOUSING |
1 | discontinued |
| 38 | 82145M |
ПИН-код PIN |
1 | discontinued |
| 39 | 11760M |
КОЛЬЦО Snap RING Snap |
1 | discontinued |
| 4 | 82368M |
ПИН-код PIN |
2 | discontinued |
| 40 | 11759M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 41 | 83348M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 42 | 41838M |
БОЛТ BOLT |
10 | discontinued |
| 5 | 11744M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 6 | 82442M |
БОЛТ BOLT |
1 | discontinued |
| 7 | 83330M |
АНОД ANODE |
1 | discontinued |
| 8 | 82168M |
ВИНТ SCREW |
1 | discontinued |
| 9 | 11761M |
АНОД ANODE |
1 | discontinued |
