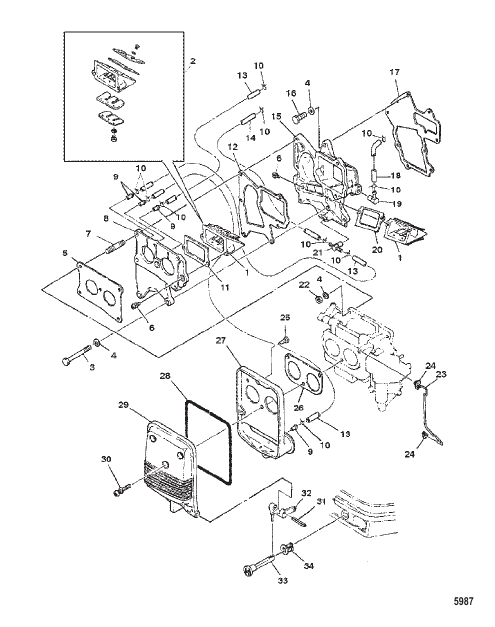

Intake Manifold
Parts (36)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 11765M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET Powerhead |
1 | discontinued |
| - | 11835T |
РЕМКОМПЛЕКТ Карбюратора REPAIR KIT Carburetor |
1 | discontinued |
| 1 | 11772M |
КЛАПАН В СБОРЕ REED VALVE ASSEMBLY |
2 | discontinued |
| 10 | 82046M |
ЗАЖИМ CLAMP |
10 | discontinued |
| 11 | 11778M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 12 | 11781M |
ПРОКЛАДКА GASKET |
1 | superseded |
| 13 | 811045M |
ШЛАНГ HOSE |
3 | discontinued |
| 14 | 811045M |
ШЛАНГ HOSE |
1 | discontinued |
| 15 | 11775M |
ПАТРУБОК Впускной MANIFOLD Intake |
1 | discontinued |
| 16 | 82405M |
БОЛТ BOLT |
7 | discontinued |
| 17 | 11776M |
ПРОКЛАДКА GASKET |
1 | superseded |
| 18 | 811045M |
ШЛАНГ HOSE |
1 | discontinued |
| 19 | 80727M |
ОБРАТНЫЙ КЛАПАН В СБОРЕ CHECK VALVE ASSEMBLY |
1 | discontinued |
| 2 | 11774M |
Тростниковый НАБОР REED SET |
1 | discontinued |
| 20 | 11778M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 21 | 11791M |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | discontinued |
| 22 | 8528163 |
ГАЙКА NUT |
4 | discontinued |
| 23 | 11789M |
стержень ROD |
1 | discontinued |
| 24 | 16333 |
Стержень Snap ROD Snap |
2 | |
| 25 | 95526M |
ВИНТ SCREW |
4 | discontinued |
| 26 | 11786M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 27 | 11783M |
КРЫШКА COVER |
1 | discontinued |
| 28 | 95558M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 29 | 11784M |
КРЫШКА COVER |
1 | discontinued |
| 3 | 84658M |
БОЛТ BOLT |
2 | discontinued |
| 30 | 11785M |
ВИНТ SCREW |
3 | discontinued |
| 31 | 11790M |
ПИН-код PIN |
1 | discontinued |
| 32 | 11787M |
РЫЧАГ Дроссель LEVER Choke |
1 | discontinued |
| 33 | 83960M |
РУЧКА KNOB |
1 | discontinued |
| 34 | 84760M |
ВТУЛКА GROMMET |
1 | discontinued |
| 4 | 82214M |
ШАЙБА WASHER |
13 | discontinued |
| 5 | 11782M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 6 | 83356M |
ВИНТ SCREW |
4 | discontinued |
| 7 | 11779M |
ШПИЛЬКА STUD |
4 | discontinued |
| 8 | 811013M |
КРЫШКА COVER |
1 | discontinued |
| 9 | 80122M |
ФИТИНГ FITTING |
4 | discontinued |
