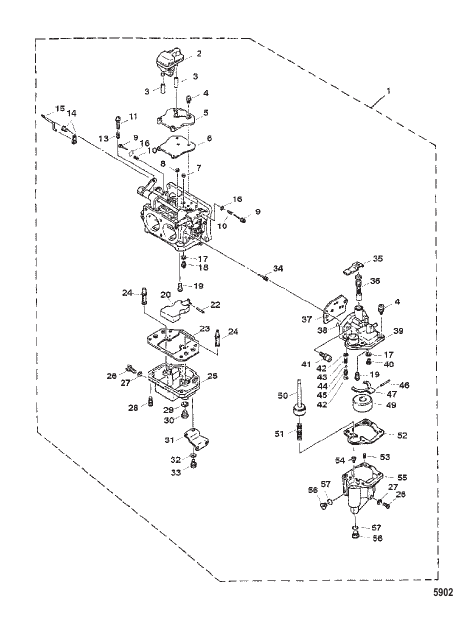

Carburetor
Parts (66)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 11765M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET Powerhead |
1 | discontinued |
| - | 11835T |
РЕМКОМПЛЕКТ Карбюратора REPAIR KIT Carburetor |
1 | discontinued |
| 1 | 9333M |
КАРБЮРАТОР CARBURETOR |
1 | discontinued |
| 10 | 11801M |
ВЕСНА SPRING |
2 | discontinued |
| 11 | 827147M |
ВИНТ [M-003723] и вверх SCREW [M-003723] & Up |
1 | discontinued |
| 11 | 827147M |
ВИНТ [ML-314106] и вверх SCREW [ML-314106] & Up |
1 | discontinued |
| 12 | 80738M |
ВИНТ Холостой ход [M-003722] и ниже SCREW Idle Speed [M-003722] & Below |
1 | discontinued |
| 12 | 80738M |
ВИНТ Холостого хода [ML-314105] и ниже SCREW Idle Speed [ML-314105] & Below |
1 | discontinued |
| 13 | 80437M |
ВЕСНА SPRING |
1 | discontinued |
| 14 | 11829M |
ФИКСАТОР RETAINER |
2 | |
| 15 | 11830M |
стержень ROD |
1 | discontinued |
| 16 | 11802M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | |
| 17 | 80261M |
ШАЙБА WASHER |
2 | discontinued |
| 18 | 827146M |
СИДЕНЬЕ Клапан SEAT Valve |
1 | discontinued |
| 19 | 8095711 |
ВИНТ (M4 x 5) SCREW (M4 x 5) |
2 | discontinued |
| 2 | 11834M |
ДЕМПФЕР DAMPER |
1 | discontinued |
| 20 | 954481 |
ПОПЛАВОК В СБОРЕ [M-006124] И выше FLOAT ASSEMBLY [M-006124] & Up |
1 | discontinued |
| 20 | 954481 |
ПОПЛАВОК В СБОРЕ [ML-322159] И выше FLOAT ASSEMBLY [ML-322159] & Up |
1 | discontinued |
| 20 | 95448M |
ПОПЛАВОК В СБОРЕ [M-006123] и ниже FLOAT ASSEMBLY [M-006123] & Below |
1 | discontinued |
| 20 | 95448M |
ПОПЛАВОК В СБОРЕ [ML-322158] и ниже FLOAT ASSEMBLY [ML-322158] & Below |
1 | discontinued |
| 22 | 11794M |
PIN-код с плавающей запятой PIN Float |
1 | discontinued |
| 23 | 11792M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 24 | 11812M |
ГЛАВНОЕ СОПЛА MAIN NOZZLE |
2 | discontinued |
| 25 | 11811M |
ПОПЛАВКА ЧАША FLOAT BOWL |
1 | discontinued |
| 26 | 11798M |
ПРОБКА Сливная PLUG Drain |
2 | discontinued |
| 27 | 11799M |
ПРОКЛАДКА GASKET |
2 | discontinued |
| 28 | 94813M |
ВИНТ SCREW |
4 | discontinued |
| 29 | 80267 |
ПРОКЛАДКА GASKET |
2 | discontinued |
| 3 | 82012M |
ШЛАНГ HOSE |
2 | discontinued |
| 30 | 11813M |
Джет главный (#145) JET Main (#145) |
2 | discontinued |
| 31 | 11831M |
ТАРЕЛКА PLATE |
1 | discontinued |
| 32 | 84401M |
ШАЙБА WASHER |
4 | discontinued |
| 33 | 11832M |
ВИНТ SCREW |
4 | discontinued |
| 34 | 11833M |
СОПЛО NOZZLE |
1 | discontinued |
| 35 | 11827M |
ТАРЕЛКА PLATE |
1 | discontinued |
| 36 | 11826M |
ПОРШЕНЬ PLUNGER |
1 | discontinued |
| 37 | 11818M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 38 | 11802M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 39 | 11819M |
КРЫШКА COVER |
1 | discontinued |
| 4 | 11796M |
ВИНТ (M4 x 14) SCREW (M4 x 14) |
8 | discontinued |
| 40 | 11820M |
СИДЕНЬЕ Клапан SEAT Valve |
1 | discontinued |
| 41 | 11828M |
ВИНТ SCREW |
2 | discontinued |
| 42 | 95560M |
СИДЕНЬЕ SEAT |
2 | discontinued |
| 43 | 95559M |
ВЕСНА SPRING |
1 | discontinued |
| 44 | 95574M |
ШАР BALL |
1 | discontinued |
| 45 | 97576M |
СИДЕНЬЕ SEAT |
1 | discontinued |
| 46 | 11821M |
PIN-код с плавающей запятой PIN Float |
1 | discontinued |
| 47 | 11963M |
ПЛАВАЮЩИЙ РЫЧАГ [M-000788] И ВВЕРХ FLOAT ARM [M-000788] & Up |
1 | discontinued |
| 47 | 11963M |
ПОПЛАВКА [ML-302322] И выше FLOAT ARM [ML-302322] & Up |
1 | discontinued |
| 48 | 80202M |
ПОПЛАВКА [M-000787] и ниже FLOAT ARM [M-000787] & Below |
1 | discontinued |
| 48 | 80202M |
ПОПЛАВКА [ML-302321] и ниже FLOAT ARM [ML-302321] & Below |
1 | discontinued |
| 49 | 80450M |
ПЛАВАТЬ FLOAT |
1 | discontinued |
| 5 | 11814M |
ТАРЕЛКА PLATE |
1 | discontinued |
| 50 | 11824M |
ПОРШЕНЬ PLUNGER |
1 | discontinued |
| 51 | 11825M |
ВЕСНА SPRING |
1 | discontinued |
| 52 | 11823M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 53 | 83089M |
ДжЕТ (#70) (#70) JET (#70) (#70) |
1 | discontinued |
| 54 | 852869 |
ОБРАТНЫЙ КЛАПАН [M-005674] И ВВЕРХ CHECK VALVE [M-005674] & Up |
1 | discontinued |
| 54 | 852869 |
ОБРАТНЫЙ КЛАПАН [ML-319656] И ВВЕРХ CHECK VALVE [ML-319656] & Up |
1 | discontinued |
| 55 | 11822M |
ПОПЛАВКА ЧАША FLOAT BOWL |
1 | discontinued |
| 56 | 97602M |
КЛАПАН VALVE |
1 | discontinued |
| 57 | 94699M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 6 | 11795M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 7 | 11815M |
ПИЛОТНЫЙ РЕАКТИВ (#90) PILOT JET (#90) |
2 | discontinued |
| 8 | 11816M |
ПИЛОТНЫЙ РЕАКТИВ (#60) PILOT JET (#60) |
2 | discontinued |
| 9 | 11800M |
ВИНТ SCREW |
2 | discontinued |
