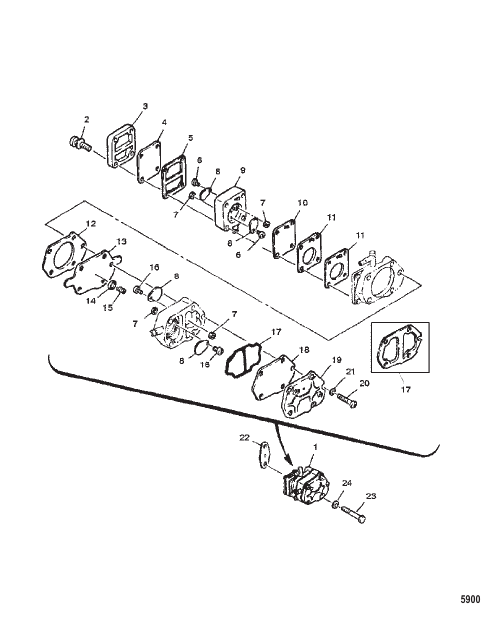

Fuel Pump
Parts (31)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 11765M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET Powerhead |
1 | discontinued |
| 1 | 16816M |
НАСОС В СБОРЕ Топливный PUMP ASSEMBLY Fuel |
1 | discontinued |
| 10 | 84262M |
ДИАФРАГМА DIAPHRAGM |
1 | |
| 11 | 815009 |
ПРОКЛАДКА GASKET |
1 | |
| 12 | 80613 |
ПРОКЛАДКА GASKET |
1 | |
| 13 | 80606M |
ДИАФРАГМА DIAPHRAGM |
1 | |
| 14 | 80611M |
ТАРЕЛКА PLATE |
1 | discontinued |
| 15 | 80610M |
ВЕСНА SPRING |
1 | discontinued |
| 16 | 41889M |
ВИНТ (M3 x 5) SCREW (M3 x 5) |
2 | discontinued |
| 17 | 80614 |
ПРОКЛАДКА [M-001221] И выше GASKET [M-001221] & Up |
1 | |
| 17 | 80614 |
ПРОКЛАДКА [ML-304429] И выше GASKET [ML-304429] & Up |
1 | |
| 17 | 43095M |
ПРОКЛАДКА [M-001220] и ниже GASKET [M-001220] & Below |
1 | discontinued |
| 17 | 43095M |
ПРОКЛАДКА [ML-304428] и ниже GASKET [ML-304428] & Below |
1 | discontinued |
| 18 | 84141M |
ДИАФРАГМА DIAPHRAGM |
1 | |
| 19 | 80607M |
КРЫШКА COVER |
1 | discontinued |
| 2 | 80954M |
ВИНТ SCREW |
4 | discontinued |
| 20 | 82522M |
ВИНТ SCREW |
3 | discontinued |
| 21 | 82186M |
ШАЙБА WASHER |
3 | discontinued |
| 22 | 80757 |
ПРОКЛАДКА GASKET |
1 | |
| 23 | 8527765 |
БОЛТ BOLT |
2 | discontinued |
| 24 | 881379 |
ШАЙБА WASHER |
2 | superseded |
| 3 | 84266M |
КРЫШКА COVER |
1 | discontinued |
| 4 | 84265M |
ДИАФРАГМА DIAPHRAGM |
1 | |
| 5 | 815010M |
ПРОКЛАДКА [M-001558] И выше GASKET [M-001558] & Up |
1 | discontinued |
| 5 | 815010M |
ПРОКЛАДКА [ML-306213] И выше GASKET [ML-306213] & Up |
1 | discontinued |
| 5 | 84264 |
ПРОКЛАДКА [M-001557] и ниже GASKET [M-001557] & Below |
1 | |
| 5 | 84264 |
ПРОКЛАДКА [ML-306212] и ниже GASKET [ML-306212] & Below |
1 | |
| 6 | 11837M |
ВИНТ SCREW |
2 | discontinued |
| 7 | 82537M |
ГАЙКА NUT |
4 | discontinued |
| 8 | 41888M |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
4 | |
| 9 | 84263M |
ТЕЛО BODY |
1 |
