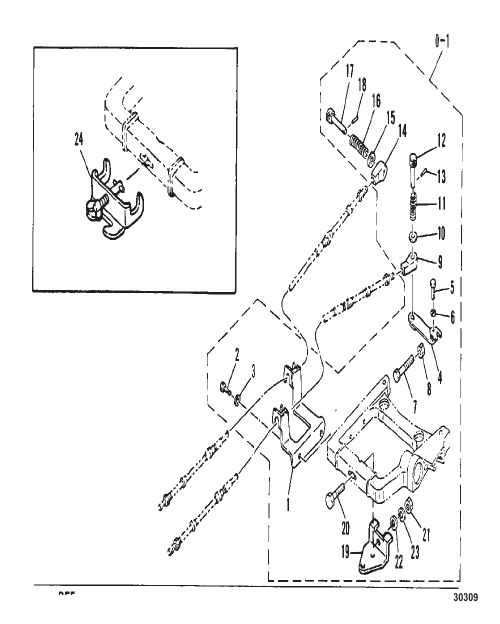

REMOTE CONTROL ATTACHING KIT
Parts (26)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 0-1 | 43986A1 |
КОМПЛЕКТ КРЕПЕЖА Дистанционное управление ATTACHING KIT Remote Control |
1 | |
| 1 | 84224M |
КРОНШТЕЙН КАБЕЛЬ BRACKET CABLE |
1 | discontinued |
| 10 | 82217M |
ШАЙБА WASHER |
1 | discontinued |
| 11 | 83725M |
ПРУЖИНА SPRING |
1 | discontinued |
| 12 | 83726M |
КРЮК HOOK |
1 | superseded |
| 13 | 82146M |
ШТИФТ РОЛИК PIN ROLL |
1 | discontinued |
| 14 | 83724M |
ОКОНЕЧНЫЙ Кабель END Cable |
1 | discontinued |
| 15 | 82217M |
ШАЙБА WASHER |
1 | discontinued |
| 16 | 83721M |
ПРУЖИНА SPRING |
1 | discontinued |
| 17 | 83722M |
КРЮК HOOK |
1 | superseded |
| 18 | 82146M |
ШТИФТ РОЛИК PIN ROLL |
1 | discontinued |
| 19 | 11670M |
КРОНШТЕЙН КРЕПЛЕНИЕ РУЛЕВОГО МЕХАНИЗМА. [M-057971/ML-383909/MUL-702821] & Up BRACKET STEERING ATTACHING . [M-057971/ML-383909/MUL-702821] & Up |
1 | superseded |
| 19 | 83698M |
КРЮК КРЕПЛЕНИЕ РУЛЕВОГО МЕХАНИЗМА. [M-057970/ML-383908/MUL-702820] & Below HOOK STEERING ATTACHING . [M-057970/ML-383908/MUL-702820] & Below |
1 | discontinued |
| 2 | 84541M |
БОЛТ BOLT |
2 | discontinued |
| 20 | 91636M |
БОЛТ BOLT |
1 | discontinued |
| 21 | 81785M |
КОНТРГАЙКА LOCKNUT |
1 | discontinued |
| 22 | 82220M |
ШАЙБА WASHER |
1 | discontinued |
| 23 | 82218M |
СТОПОРНАЯ ШАЙБА [M-060863/ML-389232/MUL-702828] & Below LOCKWASHER [M-060863/ML-389232/MUL-702828] & Below |
1 | discontinued |
| 24 | 83727M |
КРОНШТЕЙН РУЛЕВОЙ МЕХАНИЗМ (КАНАТНОГО ТИПА, ДОП.) BRACKET STEERING (ROPE TYPE, OPT) |
1 | discontinued |
| 3 | 82214M |
ШАЙБА WASHER |
2 | discontinued |
| 4 | 84225M |
РЫЧАГ УПРАВЛЕНИЕ ГАЗОМ LEVER THROTTLE CONTROL |
1 | discontinued |
| 5 | 82447M |
БОЛТ BOLT |
1 | discontinued |
| 6 | 82211M |
ШАЙБА WASHER |
1 | discontinued |
| 7 | 92536M |
БОЛТ BOLT |
1 | superseded |
| 8 | 83611M |
ГАЙКА NUT |
1 | superseded |
| 9 | 84227M |
ОКОНЕЧНЫЙ Кабель END Cable |
1 | discontinued |
