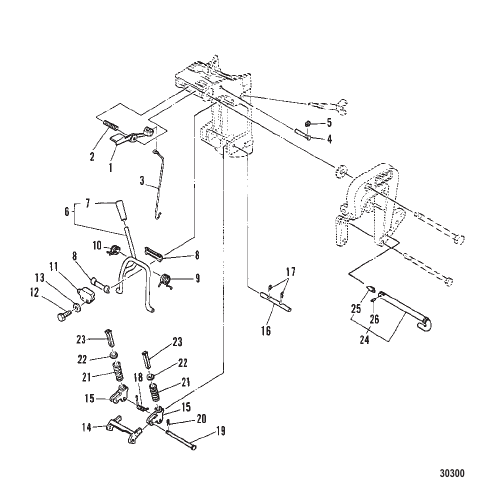

REVERSE LOCK
Parts (27)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 84664M |
РЫЧАГ Наклон LEVER Tilt |
1 | discontinued |
| 10 | 82110M |
ПРУЖИНА SPRING |
1 | discontinued |
| 11 | 80976M |
КРОНШТЕЙН НАКЛОН BRACKET TILT |
1 | discontinued |
| 12 | 82453M |
БОЛТ BOLT |
2 | superseded |
| 13 | 82214M |
ШАЙБА WASHER |
2 | discontinued |
| 14 | 80522M |
ПЛАСТИНА ШТИФТ ЗАПИРАНИЯ НАКЛОНА PLATE TILT LOCK |
1 | discontinued |
| 15 | 80523M |
ПЛАСТИНА ШТИФТ ЗАПИРАНИЯ НАКЛОНА PLATE TILT LOCK |
2 | discontinued |
| 16 | 80527M |
ВАЛ ФИКСАТОР РЕВЕРСА SHAFT REVERSE LOCK |
1 | discontinued |
| 17 | 82049M |
ШПЛИНТ COTTER PIN |
2 | discontinued |
| 18 | 82112M |
ПРУЖИНА SPRING |
1 | discontinued |
| 19 | 81883M |
ШТИФТ PIN |
1 | discontinued |
| 2 | 82090M |
ПРУЖИНА SPRING |
1 | discontinued |
| 20 | 82051M |
ШПЛИНТ COTTER PIN |
1 | discontinued |
| 21 | 82097M |
ПРУЖИНА Короткие и длинные SPRING Short and Long |
2 | discontinued |
| 21 | 83749M |
ПРУЖИНА Сверхдлинный и суперсверхдлинный SPRING Ultra Long and Super Ultra Long |
2 | discontinued |
| 22 | 80525M |
СТОП STOP |
2 | discontinued |
| 23 | 80521M |
РЫЧАГ ЗАПИРАНИЯ НАКЛОНА TILT LOCK ARM |
2 | discontinued |
| 24 | 80266M |
ПАЛЕЦ В СБОРЕ Штифт запирания наклона PIN ASSEMBLY Tilt Lock |
1 | discontinued |
| 25 | 82857M |
ПЛАСТИНА Стопор PLATE Stopper |
1 | discontinued |
| 26 | 82144M |
ШТИФТ РОЛИК PIN ROLL |
1 | discontinued |
| 3 | 84665M |
ШТОК ЗАПИРАНИЯ НАКЛОНА TILT LOCK ROD |
1 | discontinued |
| 4 | 84666M |
ШТИФТ PIN |
1 | discontinued |
| 5 | 82327M |
СТОПОРНОЕ ПРУЖИННОЕ КОЛЬЦО CIRCLIP |
1 | discontinued |
| 6 | 80519M |
РЫЧАГ В СБОРЕ Ограничитель наклона LEVER ASSEMBLY Tilt Stop |
1 | discontinued |
| 7 | 80100M |
РУЧКА НАКЛОНА TILT KNOB |
1 | discontinued |
| 8 | 80097M |
ВТУЛКА BUSHING |
2 | discontinued |
| 9 | 82111M |
ПРУЖИНА SPRING |
1 | discontinued |
