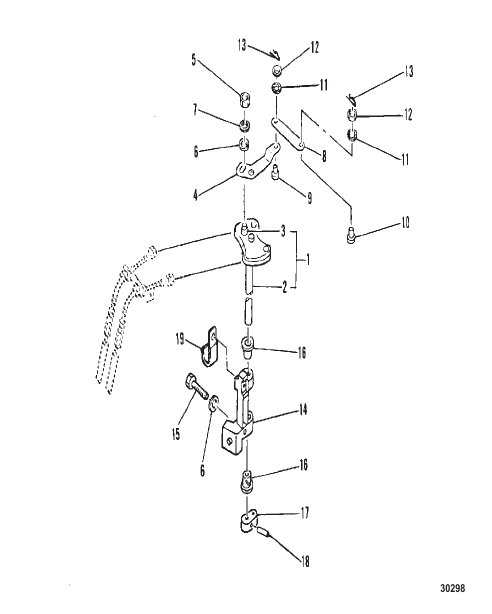

THROTTLE LINKAGE
Parts (19)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 83070M |
ВАЛИК ГАЗА В СБОРЕ THROTTLE SHAFT ASSEMBLY |
1 | discontinued |
| 10 | 81878M |
ШТИФТ PIN |
1 | discontinued |
| 11 | 81865M |
ШАЙБА ВОЛНА WASHER WAVE |
2 | discontinued |
| 12 | 82209M |
ШАЙБА WASHER |
2 | discontinued |
| 13 | 82051M |
ШПЛИНТ COTTER PIN |
2 | discontinued |
| 14 | 83269M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 15 | 83285M |
БОЛТ BOLT |
2 | discontinued |
| 16 | 81945M |
ВТУЛКА BUSHING |
2 | discontinued |
| 17 | 81091M |
ШТАГ STAY |
1 | discontinued |
| 18 | 14264M |
ШТИФТ Ролик PIN Roll |
1 | discontinued |
| 19 | 82040M |
ЗАЖИМ CLAMP |
1 | discontinued |
| 2 | 82888M |
ВАЛ СОЕДИНИТЕЛЬ SHAFT LINK CONNECTOR |
1 | superseded |
| 3 | 82872M |
ВТУЛКА РЫЧАГ BOSS LEVER |
1 | discontinued |
| 4 | 83267M |
РЫЧАГ Управление магнето LEVER Magneto Control |
1 | discontinued |
| 5 | 82380M |
ГАЙКА NUT |
1 | superseded |
| 6 | 82214M |
ШАЙБА WASHER |
3 | discontinued |
| 7 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 8 | 83268M |
РЫЧАГ УПРАВЛЕНИЕ МАГНЕТО LEVER MAGNETO CONTROL |
1 | discontinued |
| 9 | 80501M |
ШТИФТ Вилка УПРАВЛЕНИЕ МАГНЕТО PIN Clevis MAGNETO CONTROL |
1 | discontinued |
