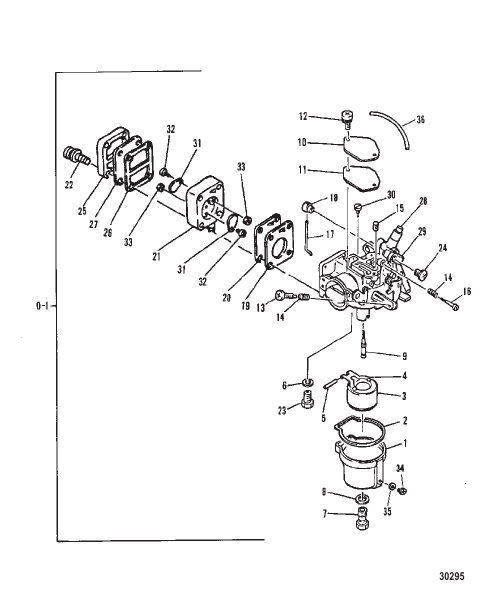

CARBURETOR
Parts (49)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 814480M |
РЕМОНТНЫЙ КОМПЛЕКТ [M-059525/ML-387112/MUL-702821] & Up REPAIR KIT [M-059525/ML-387112/MUL-702821] & Up |
1 | discontinued |
| - | 84473M |
РЕМОНТНЫЙ КОМПЛЕКТ [M-059524/ML-387111/MUL-702820] & Below REPAIR KIT [M-059524/ML-387111/MUL-702820] & Below |
1 | superseded |
| 0-1 | 9523M |
КАРБЮРАТОР В СБОРЕ [M-059525/ML-387112/MUL-702821] & Up CARBURETOR ASSEMBLY [M-059525/ML-387112/MUL-702821] & Up |
1 | discontinued |
| 0-1 | 7189M |
КАРБЮРАТОР В СБОРЕ [M-059524/ML-387111/MUL-702820] & Below CARBURETOR ASSEMBLY [M-059524/ML-387111/MUL-702820] & Below |
1 | superseded |
| 1 | 14217M |
ПОПЛАВКОВАЯ КАМЕРА [M-059525/ML-387112/MUL-702821] & Up FLOAT BOWL [M-059525/ML-387112/MUL-702821] & Up |
1 | discontinued |
| 1 | 84252M |
ПОПЛАВКОВАЯ КАМЕРА [M-059524/ML-387111/MUL-702820] & Below FLOAT BOWL [M-059524/ML-387111/MUL-702820] & Below |
1 | discontinued |
| 10 | 84258M |
ПЛАСТИНА PLATE |
1 | discontinued |
| 11 | 84259M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 12 | 84260M |
ВИНТ SCREW |
2 | superseded |
| 13 | 82623M |
ВИНТ СКОРОСТЬ ХОЛОСТОГО ХОДА SCREW IDLE SPEED |
1 | superseded |
| 14 | 80329M |
ПРУЖИНА SPRING |
2 | superseded |
| 15 | 95404M |
ВОДОМЕТНЫЙ Пилотный клапан (№44) [M-057971/ML-383909/MUL-702821] & Up JET Pilot (#44) [M-057971/ML-383909/MUL-702821] & Up |
1 | discontinued |
| 15 | 94665M |
ВОДОМЕТНЫЙ Пилотный клапан (№42) [M-057970/ML-383908/MUL-702820] & Below JET Pilot (#42) [M-057970/ML-383908/MUL-702820] & Below |
1 | discontinued |
| 16 | 80573M |
ВИНТ СМЕСЬ ДЛЯ ХОЛОСТОГО ХОДА SCREW IDLE MIXTURE |
1 | discontinued |
| 17 | 83299M |
ШТОК ROD |
1 | discontinued |
| 18 | 83300M |
ФИКСАТОР КОНЕЦ РЫЧАГА RETAINER LEVER END |
1 | discontinued |
| 19 | 84261M |
ПРОКЛАДКА НАСОС GASKET PUMP |
2 | superseded |
| 2 | 43115M |
ПРОКЛАДКА ПОПЛАВКОВАЯ КАМЕРА GASKET FLOAT CHAMBER |
1 | |
| 20 | 84262M |
ДИАФРАГМА НАСОС DIAPHRAGM PUMP |
1 | |
| 21 | 99966M |
КРЫШКА НАСОС COVER PUMP |
1 | discontinued |
| 22 | 80954M |
ВИНТ SCREW |
4 | discontinued |
| 23 | 14216M |
СЕДЛО КЛАПАНА [M-059525/ML-387112/MUL-702821] & Up VALVE SEAT [M-059525/ML-387112/MUL-702821] & Up |
1 | discontinued |
| 23 | 11930M |
СИДЕНЬЕ Клапан [M-057971/ML-383909] THRU [M-059524/ML-387111] SEAT Valve [M-057971/ML-383909] THRU [M-059524/ML-387111] |
1 | discontinued |
| 23 | 80447M |
СЕДЛО КЛАПАНА В СБОРЕ [M-057970/ML-383908/MUL-702820] & Below VALVE SEAT ASSEMBLY [M-057970/ML-383908/MUL-702820] & Below |
1 | discontinued |
| 24 | 80091M |
ВИНТ SCREW |
1 | discontinued |
| 25 | 84266M |
КРЫШКА НАСОС COVER PUMP |
1 | discontinued |
| 26 | 84264M |
ПРОКЛАДКА КРЫШКА GASKET COVER |
1 | superseded |
| 27 | 84265M |
ДИАФРАГМА НАСОС DIAPHRAGM PUMP |
1 | |
| 28 | 80227M |
ВТУЛКА НАПРАВЛЯЮЩИЙ ШТИФТ BUSHING GUIDE PIN |
1 | discontinued |
| 29 | 81148M |
РЫЧАГ В СБОРЕ Дроссельная заслонка ARM ASSEMBLY Throttle |
1 | discontinued |
| 3 | 14180M |
ПОПЛАВОК [M-059525/ML-387112/MUL-702821] & Up FLOAT [M-059525/ML-387112/MUL-702821] & Up |
1 | discontinued |
| 3 | 80450M |
ПОПЛАВОК [M-059524/ML-387111/MUL-702820] & Below FLOAT [M-059524/ML-387111/MUL-702820] & Below |
1 | discontinued |
| 30 | 80434M |
ВИНТ SCREW |
1 | discontinued |
| 31 | 41888M |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
2 | |
| 32 | 11837M |
ВИНТ [M-057971/ML-383909/MUL-702821] & Up SCREW [M-057971/ML-383909/MUL-702821] & Up |
2 | discontinued |
| 32 | 94801M |
ВИНТ [M-057970/ML-383908/MUL-702820] & Below SCREW [M-057970/ML-383908/MUL-702820] & Below |
2 | superseded |
| 33 | 82537M |
ГАЙКА NUT |
2 | discontinued |
| 34 | 82512M |
ВИНТ [M-059525/ML-387112/MUL-702821] & Up SCREW [M-059525/ML-387112/MUL-702821] & Up |
1 | discontinued |
| 35 | 14218M |
ПРОКЛАДКА [M-059525/ML-387112/MUL-702821] & Up GASKET [M-059525/ML-387112/MUL-702821] & Up |
1 | discontinued |
| 36 | 14281M |
ТРУБА [M-059525/ML-387112/MUL-702821] & Up TUBE [M-059525/ML-387112/MUL-702821] & Up |
1 | discontinued |
| 4 | 80202M |
РЫЧАГ ПОПЛАВКА [M-059524/ML-387111/MUL-702820] & Below FLOAT ARM [M-059524/ML-387111/MUL-702820] & Below |
1 | discontinued |
| 5 | 80451M |
ШТИФТ ПОПЛАВОК [M-059525/ML-387112/MUL-702821] & Up PIN FLOAT [M-059525/ML-387112/MUL-702821] & Up |
1 | discontinued |
| 5 | 80201M |
ШТИФТ ПОПЛАВОК [M-059524/ML-387111/MUL-702820] & Below PIN FLOAT [M-059524/ML-387111/MUL-702820] & Below |
1 | superseded |
| 6 | 80261M |
ШАЙБА СЕДЛО КЛАПАНА WASHER VALVE SEAT |
1 | discontinued |
| 7 | 83289M |
ГЛАВНЫЙ ЖИКЛЕР (№80) [M-059525/ML-387112/MUL-702821] & Up MAIN JET (#80) [M-059525/ML-387112/MUL-702821] & Up |
1 | discontinued |
| 7 | 84670M |
ВОДОМЕТНЫЙ Главн. (№78) [M-059524/ML-387111/MUL-702820] & Below JET Main (#78) [M-059524/ML-387111/MUL-702820] & Below |
1 | discontinued |
| 8 | 80267M |
ПРОКЛАДКА GASKET |
1 | superseded |
| 9 | 14272M |
ШТУЦЕР ГЛАВН. (№66) [M-059525/ML-387112/MUL-702821] & Up NOZZLE MAIN (#66) [M-059525/ML-387112/MUL-702821] & Up |
1 | discontinued |
| 9 | 94664M |
ШТУЦЕР ГЛАВН. (№66) [M-059524/ML-387111/MUL-702820] & Below NOZZLE MAIN (#66) [M-059524/ML-387111/MUL-702820] & Below |
1 | discontinued |
