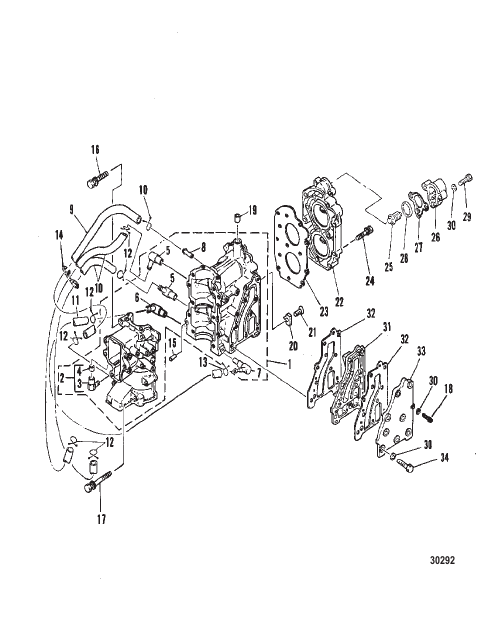

CRANKCASE AND CYLINDER HEAD
Parts (39)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 95403M |
СИЛОВАЯ ГОЛОВКА В СБОРЕ [M-057971/ML-383909/MUL-702821] & Up POWERHEAD ASSEMBLY [M-057971/ML-383909/MUL-702821] & Up |
1 | discontinued |
| - | 83783M |
СИЛОВАЯ ГОЛОВКА В СБОРЕ [M-057970/ML-383908/MUL-702820] & Below POWERHEAD ASSEMBLY [M-057970/ML-383908/MUL-702820] & Below |
1 | discontinued |
| - | 84161M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 6973M |
КАРТЕР В СБОРЕ CRANKCASE ASSEMBLY |
1 | discontinued |
| 10 | 84235M |
РУКАВ HOSE |
2 | superseded |
| 11 | 82992M |
РУКАВ HOSE |
1 | superseded |
| 12 | 82046M |
ЗАЖИМ CLAMP |
6 | discontinued |
| 13 | 84656M |
ЗАЖИМ CLAMP |
2 | superseded |
| 14 | 82038M |
ЗАЖИМ CLAMP |
1 | discontinued |
| 15 | 82359M |
ШТИФТ Штифт PIN Dowel |
2 | discontinued |
| 16 | 95592M |
БОЛТ С ШАЙБОЙ BOLT WITH WASHER |
8 | discontinued |
| 17 | 95593M |
БОЛТ С ШАЙБОЙ BOLT WITH WASHER |
2 | discontinued |
| 18 | 84247M |
БОЛТ BOLT |
1 | superseded |
| 19 | 14214M |
ШТИФТ Штифт [M-059525/ML-387112/MUL-702821] & Up PIN Dowel [M-059525/ML-387112/MUL-702821] & Up |
1 | discontinued |
| 19 | 82161M |
ШТИФТ ШТИФТ [M-059524/ML-387111/MUL-702820] & Below PIN DOWEL [M-059524/ML-387111/MUL-702820] & Below |
1 | superseded |
| 2 | 80727M |
ОБРАТНЫЙ КЛАПАН В СБОРЕ CHECK VALVE ASSEMBLY |
1 | discontinued |
| 20 | 84732M |
АНОД [M-060864/ML-389233/MUL-702829] & Up ANODE [M-060864/ML-389233/MUL-702829] & Up |
1 | discontinued |
| 21 | 95594M |
ВИНТ SCREW |
1 | discontinued |
| 22 | 6964M |
ГОЛОВКА ЦИЛИНДР HEAD CYLINDER |
1 | discontinued |
| 23 | 95595M |
ПРОКЛАДКА ГОЛОВКА ЦИЛИНДРА GASKET CYLINDER HEAD |
1 | superseded |
| 24 | 43092M |
БОЛТ (M6 x 14) С ШАЙБОЙ BOLT (M6 x 14) WITH WASHER |
13 | discontinued |
| 25 | 11919M |
ТЕРМОСТАТ [M-057971/ML-383909/MUL-702821] & Up THERMOSTAT [M-057971/ML-383909/MUL-702821] & Up |
1 | superseded |
| 25 | 83282M |
ТЕРМОСТАТ [M-057970/ML-383908/MUL-702820] & Below THERMOSTAT [M-057970/ML-383908/MUL-702820] & Below |
1 | |
| 26 | 83241M |
КРЫШКА ТЕРМОСТАТ COVER THERMOSTAT |
1 | discontinued |
| 27 | 83242M |
ПРОКЛАДКА КРЫШКА ТЕРМОСТАТА GASKET THERMOSTAT COVER |
1 | superseded |
| 28 | 81835M |
ШАЙБА [M-059524/ML-387111/MUL-702820] & Below WASHER [M-059524/ML-387111/MUL-702820] & Below |
1 | |
| 29 | 82405M |
БОЛТ BOLT |
3 | discontinued |
| 3 | 82975M |
КОЛЕНЧАТЫЙ СЛИВ [M-057970/ML-383908/MUL-702820] & Below ELBOW DRAIN [M-057970/ML-383908/MUL-702820] & Below |
1 | discontinued |
| 30 | 82214M |
ШАЙБА WASHER |
14 | discontinued |
| 31 | 95596M |
КРЫШКА Выхлоп Внутр. COVER Exhaust Inner |
1 | discontinued |
| 32 | 95596M |
КРЫШКА Выхлоп COVER Exhaust |
2 | discontinued |
| 33 | 95598M |
КРЫШКА Выхлоп Наружная часть COVER Exhaust Outer |
1 | discontinued |
| 34 | 84237M |
БОЛТ BOLT |
10 | superseded |
| 4 | 80107M |
КЛАПАН ПРОВЕРКА [M-057970/ML-383908/MUL-702820] & Below VALVE CHECK [M-057970/ML-383908/MUL-702820] & Below |
1 | discontinued |
| 5 | 82692M |
ОБРАТНЫЙ КЛАПАН В СБОРЕ CHECK VALVE ASSEMBLY |
2 | discontinued |
| 6 | 84661M |
ФИТИНГ Слив FITTING Drain |
1 | discontinued |
| 7 | 83326M |
ФИТИНГ СЛИВ FITTING DRAIN |
1 | discontinued |
| 8 | 80122M |
ФИТИНГ СЛИВ FITTING DRAIN |
1 | discontinued |
| 9 | 81658M |
РУКАВ HOSE |
1 | superseded |
