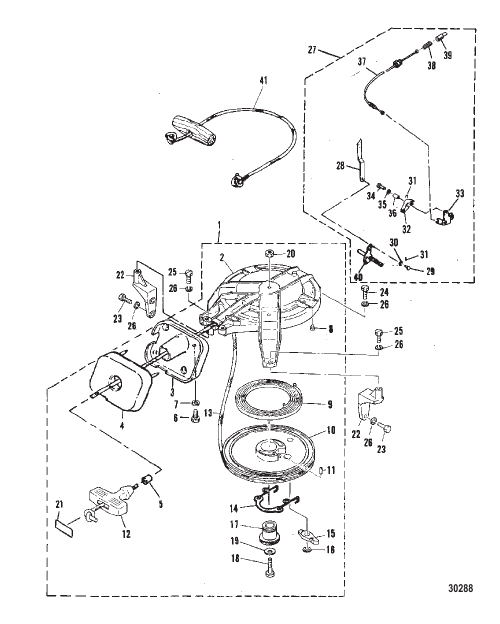

RECOIL STARTER
Parts (42)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9254M |
СТАРТЕР В СБОРЕ Обратный ход STARTER ASSEMBLY Recoil |
1 | superseded |
| 10 | 83250M |
РОЛИК Стартер SHEAVE Starter |
1 | discontinued |
| 11 | 82157M |
ШТИФТ РОЛИК PIN ROLL |
1 | discontinued |
| 12 | 80063M |
РУКОЯТКА СТАРТЕР HANDLE STARTER |
1 | superseded |
| 13 | 79629A1 |
ТРОС Стартер ROPE Starter |
1 | superseded |
| 14 | 95589M |
ПРУЖИНА ПРИВОД СТОПОРА SPRING PAWL DRIVE |
1 | discontinued |
| 15 | 83252M |
СТОПОР ПРИВОД PAWL DRIVE |
1 | |
| 16 | 84895M |
КОЛЬЦО Защелка RING Snap |
1 | discontinued |
| 17 | 95590M |
ВАЛ SHAFT |
1 | discontinued |
| 18 | 84237M |
БОЛТ BOLT |
1 | superseded |
| 19 | 81557M |
ШАЙБА WASHER |
1 | discontinued |
| 2 | 8398M |
КОРПУС Стартер HOUSING Starter |
1 | discontinued |
| 20 | 82380M |
ГАЙКА NUT |
1 | superseded |
| 21 | 41882M |
КРЫШКА COVER |
1 | discontinued |
| 22 | 83258M |
КРОНШТЕЙН BRACKET |
2 | discontinued |
| 23 | 82423M |
БОЛТ BOLT |
4 | discontinued |
| 24 | 83285M |
БОЛТ BOLT |
1 | discontinued |
| 25 | 83539M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
2 | superseded |
| 26 | 82214M |
ШАЙБА WASHER |
7 | discontinued |
| 27 | 81560M |
КОМПЛЕКТ СРЕДСТВ БЕЗОПАСНОСТИ Стартер SAFETY KIT Starter |
1 | discontinued |
| 28 | 83254M |
СОЕДИНИТЕЛЬ LINK |
1 | discontinued |
| 29 | 80501M |
ШТИФТ Вилка РЫЧАГ УПРАВЛЕНИЯ МАГНЕТО PIN Clevis MAGNETO CONTROL LEVER |
1 | discontinued |
| 3 | 96567M |
НАПРАВЛЯЮЩАЯ ТРОС СТАРТЕРА GUIDE STARTER ROPE |
1 | discontinued |
| 30 | 83768M |
ШАЙБА WASHER |
1 | discontinued |
| 31 | 82051M |
ШПЛИНТ COTTER PIN |
2 | discontinued |
| 32 | 83253M |
ARM ARM |
1 | discontinued |
| 33 | 83259M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 34 | 83539M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
1 | superseded |
| 35 | 82979M |
ШАЙБА WASHER |
1 | superseded |
| 36 | 81974M |
ВТУЛКА COLLAR |
1 | discontinued |
| 37 | 96568M |
ПРОВОДКА В СБОРЕ БЛОКИРОВКА СТАРТЕРА WIRE COMPLETE STARTER LOCKOUT |
1 | discontinued |
| 38 | 82079M |
ПРУЖИНА SPRING |
1 | discontinued |
| 39 | 81106M |
ПЛУНЖЕР БЛОКИРОВКА СТАРТЕРА PLUNGER STARTER LOCKOUT |
1 | discontinued |
| 4 | 98967M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 40 | 83279M |
ВАЛ ИЗМЕНЕНИЕ SHAFT CHANGE |
1 | discontinued |
| 41 | 47341A1 |
КОМПЛЕКТ ТРОСА И РУКОЯТКИ Ручной/аварийный запуск ROPE AND HANDLE KIT Manual/Emergency Start |
1 | superseded |
| 5 | 98968M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 6 | 84247M |
БОЛТ BOLT |
2 | superseded |
| 7 | 82214M |
ШАЙБА WASHER |
2 | discontinued |
| 7 | 82214M |
ШАЙБА WASHER |
2 | discontinued |
| 8 | 80604M |
ПРОБКА PLUG |
1 | discontinued |
| 9 | 95588M |
ПРУЖИНА SPRING |
1 | discontinued |
