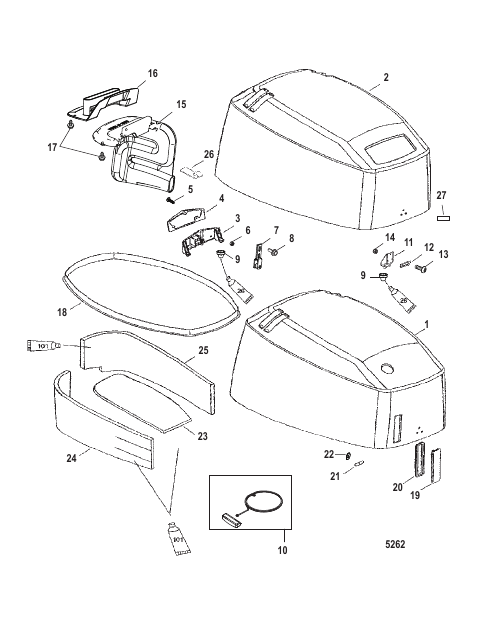

Top Cowl
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 825239T13 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (Black)(Electric) TOP COWL ASSEMBLY (Black)(Electric) |
1 | superseded |
| 1 | 825239T14 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (Silver)(Electric) TOP COWL ASSEMBLY (Silver)(Electric) |
1 | discontinued |
| 10 | 47341A11 |
КОМПЛЕКТ ТРОСА И РУКОЯТКИ Ручной пуск ROPE AND HANDLE KIT Manual Starting |
1 | |
| 11 | 828468 |
КРОНШТЕЙН Опора кожуха – передняя (Front) BRACKET Cowl Support - Front (Front) |
1 | superseded |
| 12 | 828503 |
КОНТРГАЙКА ЗАЩЕЛКИ LATCH KEEPER |
1 | discontinued |
| 13 | 83208616 |
ВИНТ SCREW |
3 | |
| 14 | 400632 |
ГАЙКА NUT |
1 | |
| 15 | 892844 |
DUCT Air Inlet DUCT Air Inlet |
1 | superseded |
| 16 | None |
NOT SOLD SEPARATE Induction Insert NOT SOLD SEPARATE Induction Insert |
1 | |
| 17 | F2317 |
ВИНТ (0.250-20 x 875) SCREW (.250-20 x .875) |
2 | |
| 18 | 831905 |
УПЛОТНЕНИЕ SEAL |
1 | superseded |
| 19 | 813504A1 |
КОМПЛЕКТ УКАЗАТЕЛЯ Уровень масла (Electric) GAUGE KIT Oil Level (Electric) |
1 | |
| 2 | 825239T11 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (Black)(Manual) TOP COWL ASSEMBLY (Black)(Manual) |
1 | discontinued |
| 2 | 825239T12 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (Silver)(Manual) TOP COWL ASSEMBLY (Silver)(Manual) |
1 | discontinued |
| 20 | 813505 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (Electric) GROMMET (Electric) |
1 | |
| 21 | 113171 |
ФИКСАТОР (Electric) RETAINER (Electric) |
1 | |
| 22 | 113161 |
ГАЙКА (Electric) NUT (Electric) |
1 | superseded |
| 23 | 828180A1 |
КОМПЛЕКТ ЗВУКОПОГЛОТИТЕЛЯ (Hot Glue Adhesive) SOUND BLANKET KIT (Hot Glue Adhesive) |
1 | superseded |
| 23 | 828180A02 |
SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive) SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive) |
1 | discontinued |
| 24 | None |
NOT SOLD SEPARATE Starboard and Rear NOT SOLD SEPARATE Starboard and Rear |
1 | |
| 25 | None |
NOT SOLD SEPARATE Port and Rear NOT SOLD SEPARATE Port and Rear |
1 | |
| 26 | None |
NOT SOLD SEPARATE Tape NOT SOLD SEPARATE Tape |
1 | |
| 27 | 82409316 |
НАКЛЕЙКА Передача F-N-R DECAL F-N-R Shift |
1 | |
| 3 | 813549F3 |
КРОНШТЕЙН Опора картера (Rear) BRACKET Cowl Support (Rear) |
1 | superseded |
| 4 | 828433 |
ПРОСТАВКА Кронштейн SPACER Bracket |
1 | superseded |
| 5 | 83208630 |
ВИНТ SCREW |
3 | discontinued |
| 6 | 400632 |
ГАЙКА NUT |
3 | |
| 7 | 18173 |
КРОНШТЕЙН В СБОРЕ Роликовая защелка BRACKET ASSEMBLY Latch Roller |
1 | superseded |
| 8 | 4006731 |
ВИНТ (M6 x 16) SCREW (M6 x 16) |
2 | |
| 9 | 813546003 |
КРЕПЛЕНИЕ MOUNT |
3 |
