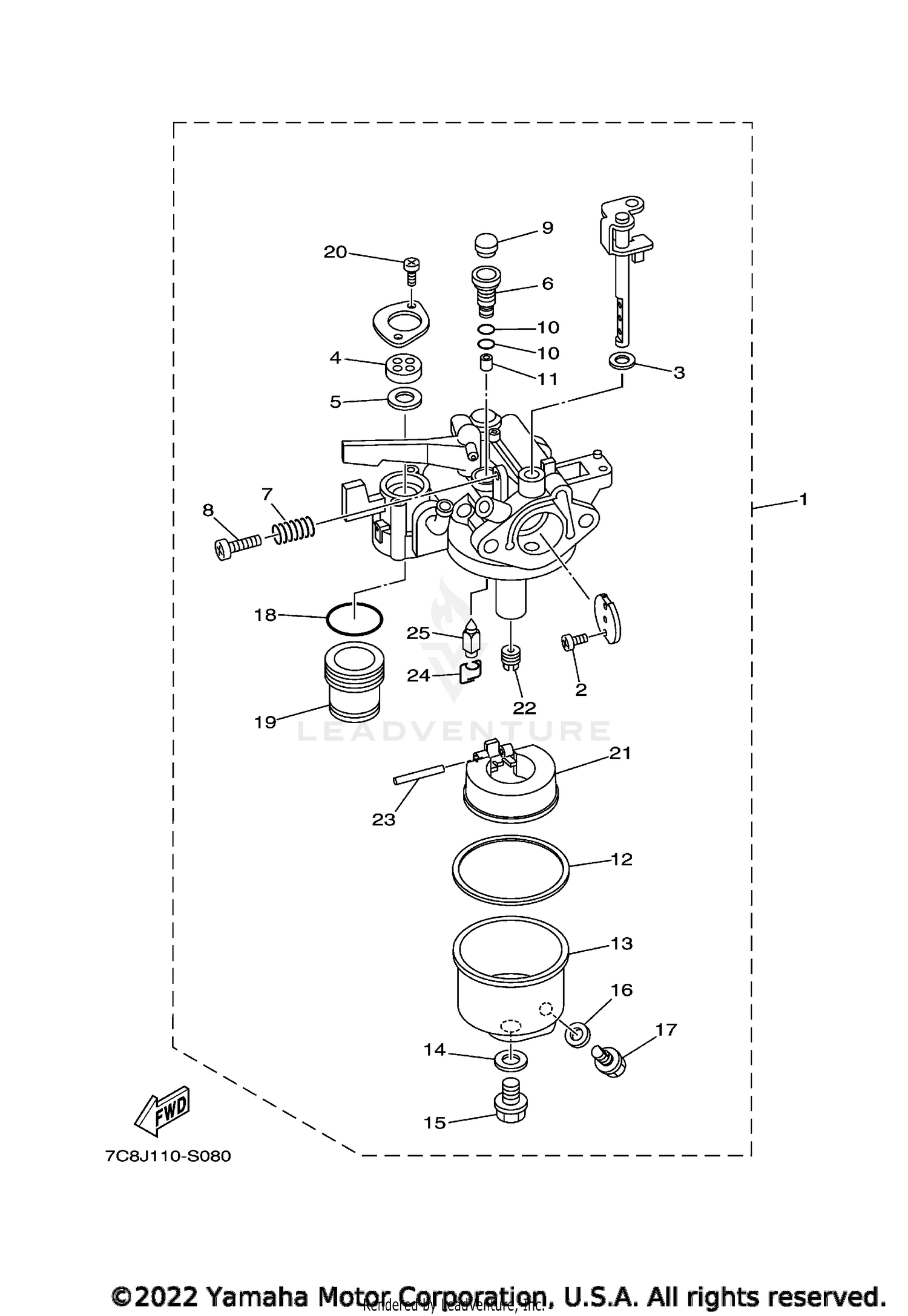

CARBURETOR
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 7C8-E4301-00-00 | CARBURETOR ASSY 1 Price: $134.99 |
| 2 | 7BX-E4216-00-00 | SCREW Price: $0.35 |
| 3 | 7HC-E4239-00-00 | SEAL Price: $2.70 |
| 4 | 7DB-E4199-00-00 | GASKET Price: $12.99 |
| 5 | 7DB-E4366-00-00 | WASHER, WAVE Price: $0.95 |
| 6 | 63P-13446-01-00 | CONNECTOR This part replaces 7DB-E4942-00-00. Price: $140.65 |
| 7 | 7DB-E4212-00-00 | SPRING, PILOT ADJUST Price: $0.75 |
| 8 | 7HC-E4922-00-00 | SCREW, THROTTLE Price: $1.25 |
| 9 | 7DB-E4293-00-00 | COVER 1 Price: $2.40 |
| 10 | 7DB-E416A-00-00 | O-RING Price: $2.15 |
| 11 | 6EG-42610-10-00 | TOP COWLING ASSY This part replaces 7DB-E4A42-19-00. Price: $448.50 |
| 12 | 7DB-E4184-00-00 | GASKET, FLOAT CHAMBE Price: $7.49 |
| 13 | 7DB-E4A81-00-00 | BODY, FLOAT CHAMBER Price: $12.99 |
| 14 | 7HC-E4227-00-00 | WASHER Price: $2.50 |
| 15 | 7HC-E4162-00-00 | BOLT, HOLDING Price: $4.20 |
| 16 | 7DB-E4198-00-00 | GASKET Price: $1.25 |
| 17 | 6FM-45331-00-CA | HOUSING, BEARING This part replaces 7DB-E4191-00-00. Price: $71.15 |
| 18 | 7DB-E4147-00-00 | O-RING Price: $1.25 |
| 19 | 7DB-E4689-00-00 | CUP Price: $5.99 |
| 20 | 7BX-E4216-00-00 | SCREW Price: $0.35 |
| 21 | 7DB-E4185-00-00 | FLOAT Price: $4.30 |
| 22 | 7DB-E4A43-78-00 | JET, MAIN Price: $5.49 |
| 23 | 7DB-E4186-00-00 | PIN, FLOAT Price: $1.05 |
| 24 | 7DB-E4159-00-00 | CLIP Price: $1.95 |
