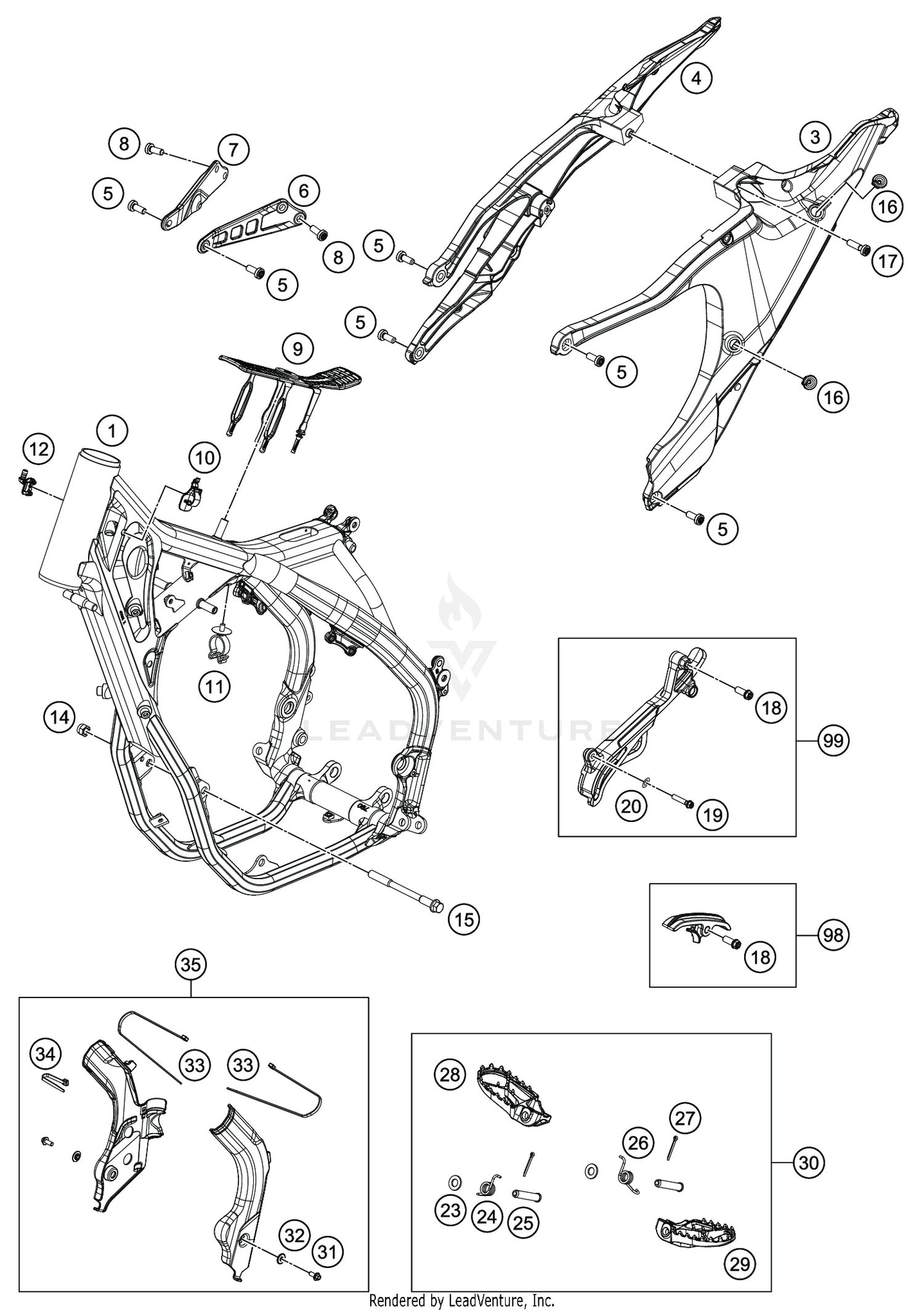

| Ref | Part Number | Description |
|---|
| 1 |
5550300100069 |
Frame 555S3 250 SX Price: $2,207.36 |
| 3 |
25103002144 |
Subframe kit le. This part replaces 25103002210C1. Price: $313.93 |
| 4 |
25103002244 |
Subframe kit ri. This part replaces 25103002220C1. Price: $335.60 |
| 5 |
0035080206S |
SHCS M8x20 TX45 Price: $6.26 |
| 6 |
5550301300001S |
Engine brace, left KTM 250 SX Price: $66.76 |
| 7 |
5550301400001S |
Engine brace, right KTM 250 SX Price: $66.10 |
| 8 |
0035080156S |
AH-COLLAR SCREW M8X15 TORX45 Price: $2.99 |
| 9 |
79607012000 |
TANK REST RUBBER Price: $11.87 |
| 11 |
79711013010 |
Cable bracket d8 This part replaces 61111041000. Price: $1.99 |
| 14 |
54310086100 |
SELF LOCKING NUT M10 CU WS=14 Price: $2.99 |
| 17 |
0035080306S |
AH-COLLAR SCREW M8X30 ISA45 Price: $3.99 |
| 18 |
0025080306 |
HH collar screw M8x30 Price: $3.62 |
| 19 |
0025060406 |
HH collar screw M6x40 TX30 Price: $3.99 |
| 20 |
0125060003 |
WASHER DIN0125-A 6,4 Price: $1.99 |
| 24 |
79003044000 |
FOOTREST SPRING R/S 2016 Price: $2.99 |
| 25 |
54803044000 |
PIN FOR FOOT PED 51.5X9.8 MM This part replaces 79003046000. Price: $14.62 |
| 26 |
79003045000 |
FOOTREST SPRING L/S 2016 Price: $2.99 |
| 27 |
0094032250 |
PIN DIN 0094-3.2X25 NIRO This part replaces 0094032253. Price: $1.99 |
| 28 |
79003041000 |
FOOTREST R/S 2016 This part replaces 79003041100. Price: $48.83 |
| 29 |
79003040000 |
FOOTREST L/S 2016 This part replaces 79003040100. Price: $48.83 |
| 30 |
79003040033 |
FOOT PEGS SET CPL. 2016 This part replaces 79003040133. Price: $119.01 |
| 31 |
0014050123 |
HH COLLAR SCREW M 5X12 WS=6 Price: $2.99 |
| 32 |
54803092060 |
BUSH F. FRAME PROTECTION 03 Price: $4.99 |
| 33 |
44011076305 |
CABLE TIE 300/4,8MM BLACK Price: $2.99 |
| 34 |
76311093200 |
CABLE TIE 200MM Price: $1.99 |
| 35 |
25103094100HA |
Frame protection set This part replaces 25103094000HA. Price: $29.47 |
| 98 |
55403096010 |
SPROCKET COVER KIT Price: $28.92 |
