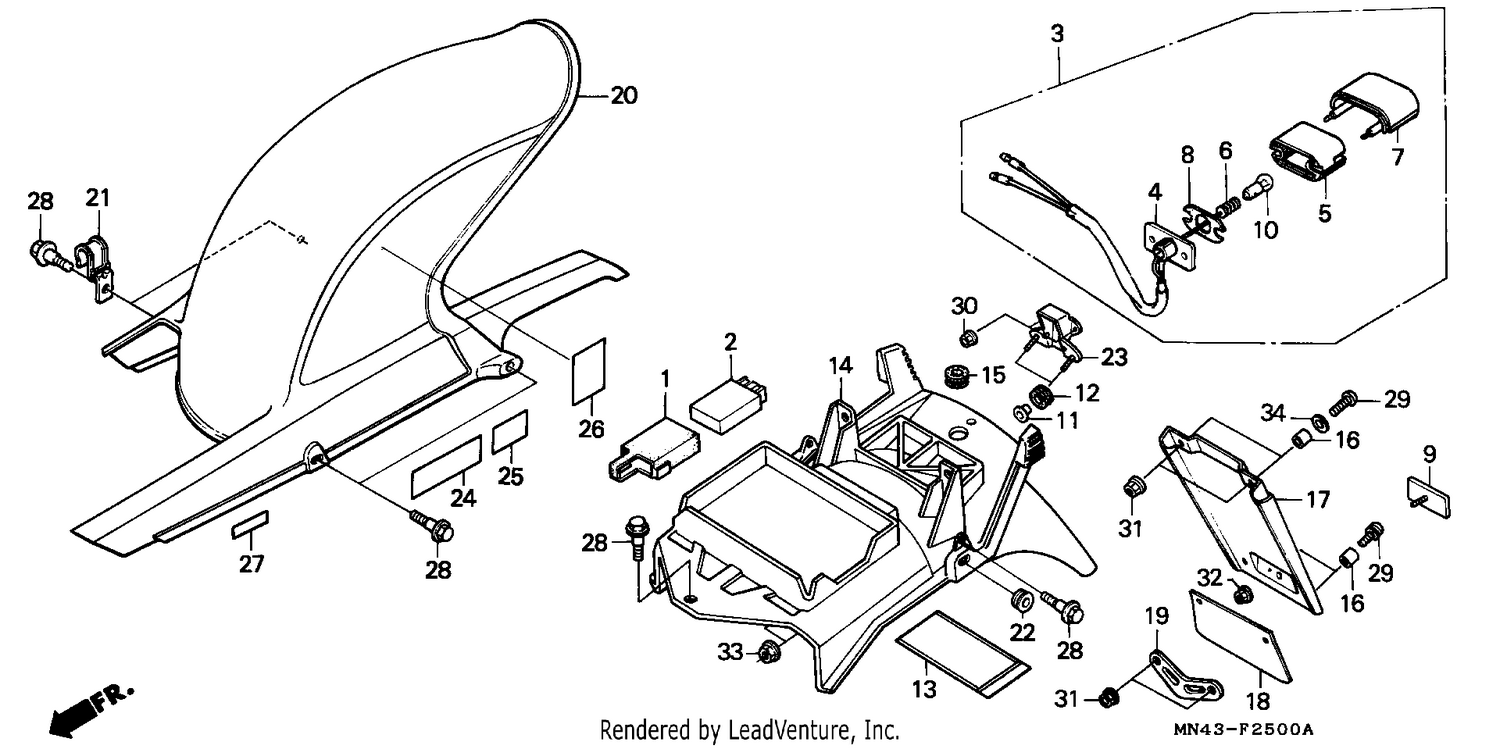

REAR FENDER (1)

REAR FENDER (1)

Parts (30)

RefPart NumberDescription
1 30405MN4000 SUSPENSION, SPARK UNIT Price: Call Us
2 30410MT6601 SPARK UNIT Price: Call Us
3 33720MN4611 LIGHT ASSY., LICENSE (12V 5W) Price: Call Us
4 33721MK5611 BASE COMP. Price: Call Us
5 33722MB1013 LENS, LICENSE LIGHT Price: Call Us
6 33725MN4610 CORD COMP., LICENSE Price: Call Us
7 33727ME4671 COVER COMP., LICENSE (STANLEY) Price: Call Us
8 33729MB1003 PACKING, LENS Price: Call Us
9 33741MC7612 REFLECTOR, REFLEX Price: Call Us
10 34904634611 BULB (12V 5W) (ECE) Price: Call Us
11 61104422000 COLLAR, SETTING Price: Call Us
12 64122KV0000 RUBBER B, SIDE SHELTER Price: Call Us
13 77251342000 BAG, SERVICE BOOK Price: Call Us
14 80101MN4610 FENDER A, RR. Price: Call Us
15 80102323000 GROMMET, WIRE CORD Price: Call Us
17 80121MN4610 MUDGUARD, RR. FENDER Price: Call Us
20 80201MN4770 FENDER, RR. Price: Call Us
21 81200MN4000 CLAMPER, BRAKE HOSE Price: Call Us
22 83551MA6000 GROMMET, SIDE COVER Price: Call Us
23 84705MN4600 BRACKET, LICENSE LIGHT Price: Call Us
24 87505MN4600 MARK, TIRE CAUTION Price: Call Us
25 87507MT6670 MARK, DRIVE CHAIN CAUTION Price: Call Us
26 87512MN4300 MARK, ACCESSORIES & LOADING CAUTION Price: Call Us
27 87519MN4300 LABEL, DAMPER ADJUSTING Price: Call Us
28 90111187000 BOLT, FLANGE, 6MM Price: Call Us
29 938940501607 SCREW-WASHER, 5X16 Price: Call Us
30 94021040700S NUT, CAP, 4MM Price: Call Us
31 9405005000 NUT, FLANGE, 5MM Price: Call Us
32 9405005000 NUT, FLANGE, 5MM Price: Call Us
33 9405006000 NUT, FLANGE, 6MM Price: Call Us
