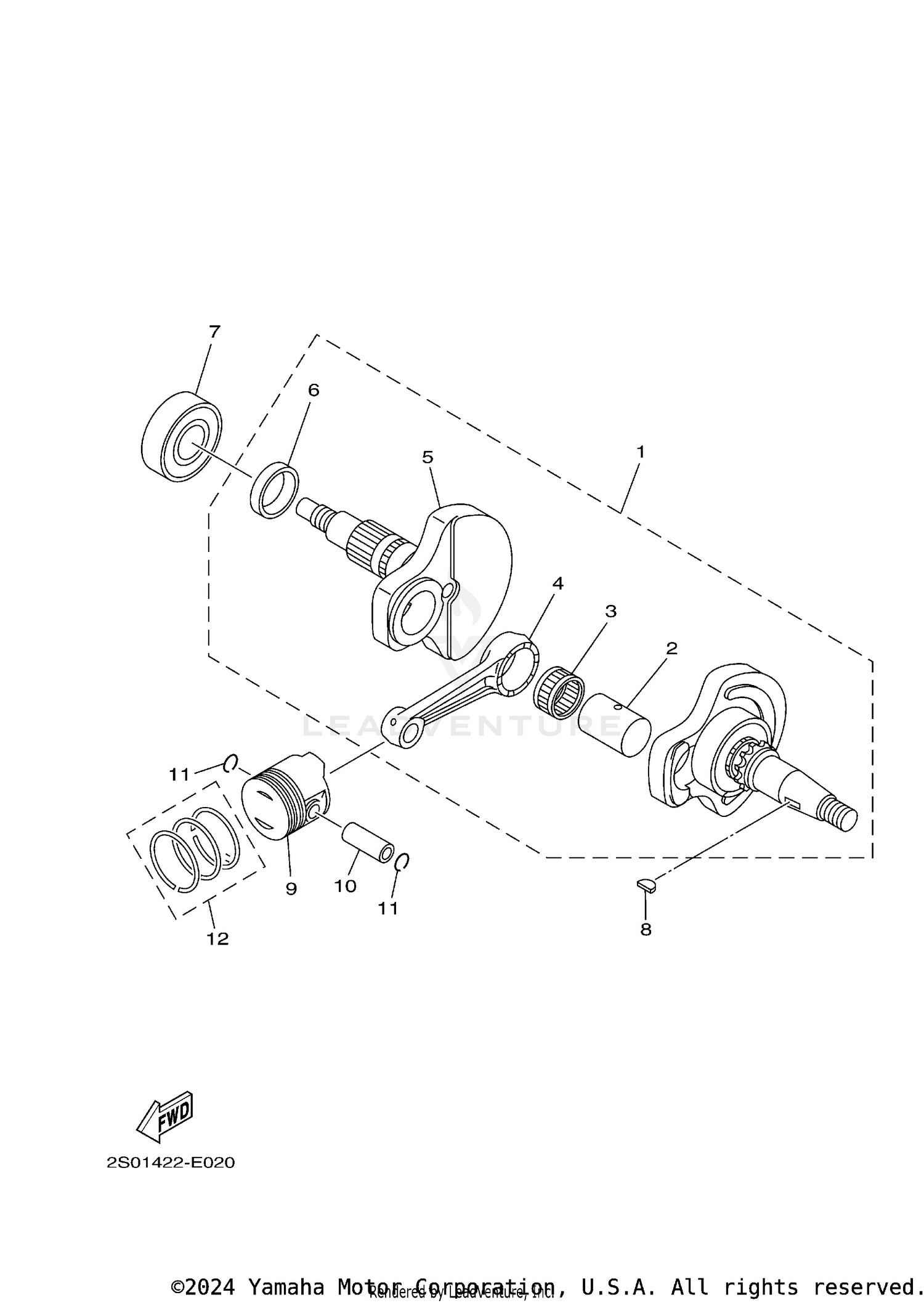

CRANKSHAFT PISTON
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5TP-WE140-30-00 | CRANKSHAFT ASSY (2P23,3P91,17B This part replaces 5TP-WE140-20-00. Price: $161.99 |
| 2 | 5LM-E1681-00-00 | PIN, CRANK 1 Price: $20.99 |
| 3 | 93310-526X0-00 | BEARING This part replaces 93310-526Y6-00. Price: $65.99 |
| 4 | 5TN-E1651-02-00 | ROD, CONNECTING Price: $22.99 |
| 5 | 5TP-E1422-00-00 | CRANK 2 Price: $45.99 |
| 6 | 5ER-E1445-00-00 | SPACER Price: $5.49 |
| 7 | 93306-205YG-00 | BEARING Price: $34.99 |
| 8 | 90280-03017-00 | KEY, WOODRUFF Price: $8.49 |
| 9 | 3S0-E1631-00-A0 | PISTON (STD) Price: $17.49 |
| 10 | 5LM-E1633-00-00 | PIN, PISTON Price: $4.25 |
| 11 | 93450-14088-00 | CIRCLIP Price: $4.40 |
| 12 | 5TP-E1603-20-00 | PISTON RING SET (STD) Price: $63.99 |
