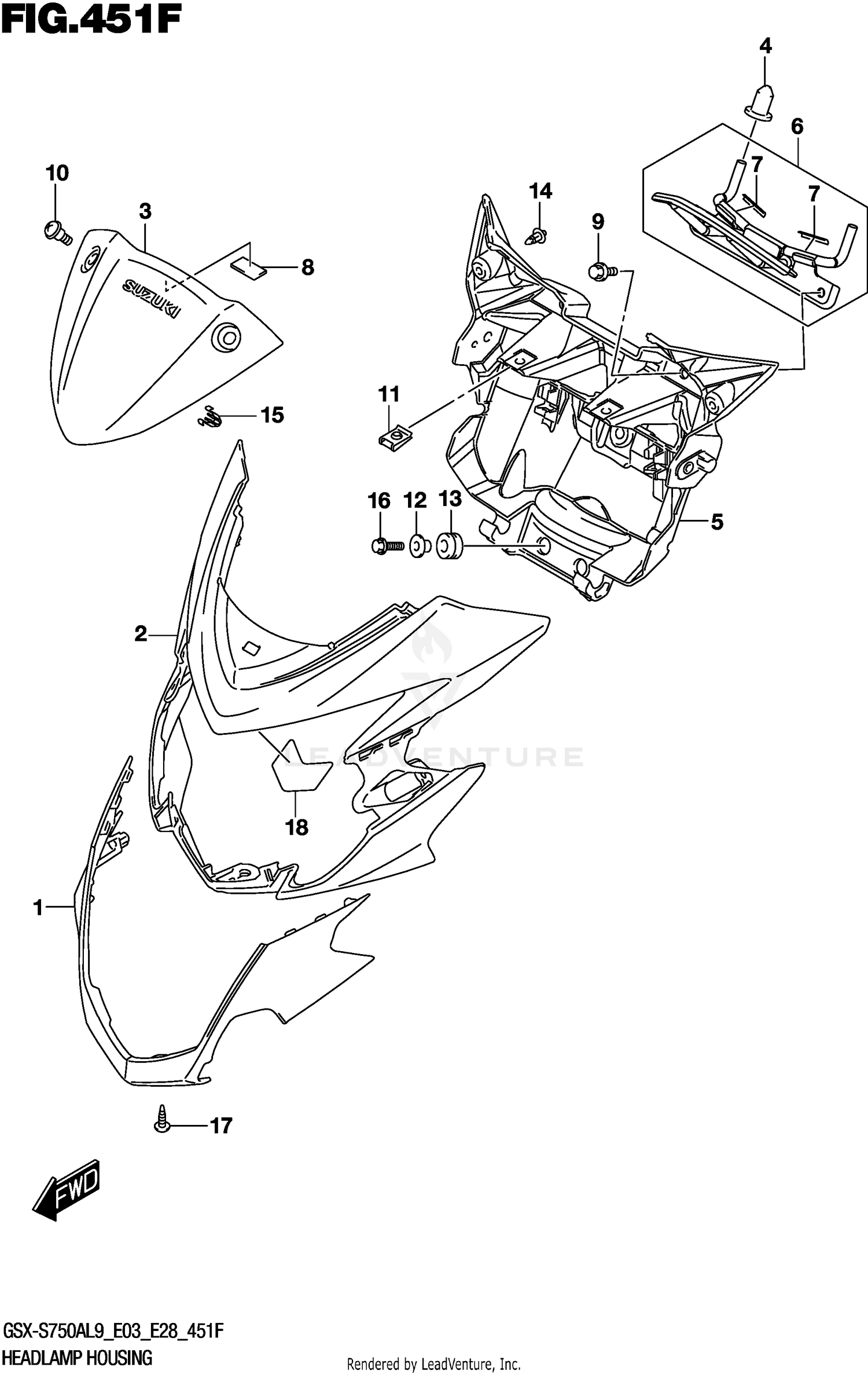

HEADLAMP HOUSING (GSX-S750ZAL9 E28)
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 51831-13K00 | COVER, HEADLAMP FRONT Price: $40.01 |
| 2 | 51821-13K00-YKV | COVER, HEADLAMP (BLACK) Price: $248.10 |
| 3 | 51811-13K00 | COVER, METER Price: $43.60 |
| 4 | 51831-30H10 | CUSHION, METER BRACE This part replaces 51831-30H00. Price: $3.74 |
| 5 | 51841-13K00 | COVER, HEADLAMP REAR Price: $50.47 |
| 6 | 51800-13K00 | BRACE, METER Price: $83.90 |
| 8 | 33652-47F00 | CUSHION,LICENSE PLATE(10X30X6 Price: $4.57 |
| 9 | 09111-06107 | BOLT (6X12) Price: $3.02 |
| 10 | 09139-05503 | SCREW (5X13) Price: $3.27 |
| 11 | 09148-06020 | NUT (M6) Price: $5.41 |
| 12 | 09169-06062 | WASHER (6.3X17X1.6) Price: $3.02 |
| 13 | 09320-09501 | CUSHION (9X18X10) Price: $2.48 |
| 14 | 09409-06314-5PK | CLIP (5.9X20.5,BLACK) Price: $3.23 |
| 15 | 09409-08326 | CLIP (10.5X14.3) Price: $2.87 |
| 16 | 01550-0620A | BOLT (6X20) Price: $2.37 |
| 17 | 03541-0516A | SCREW Price: $1.65 |
