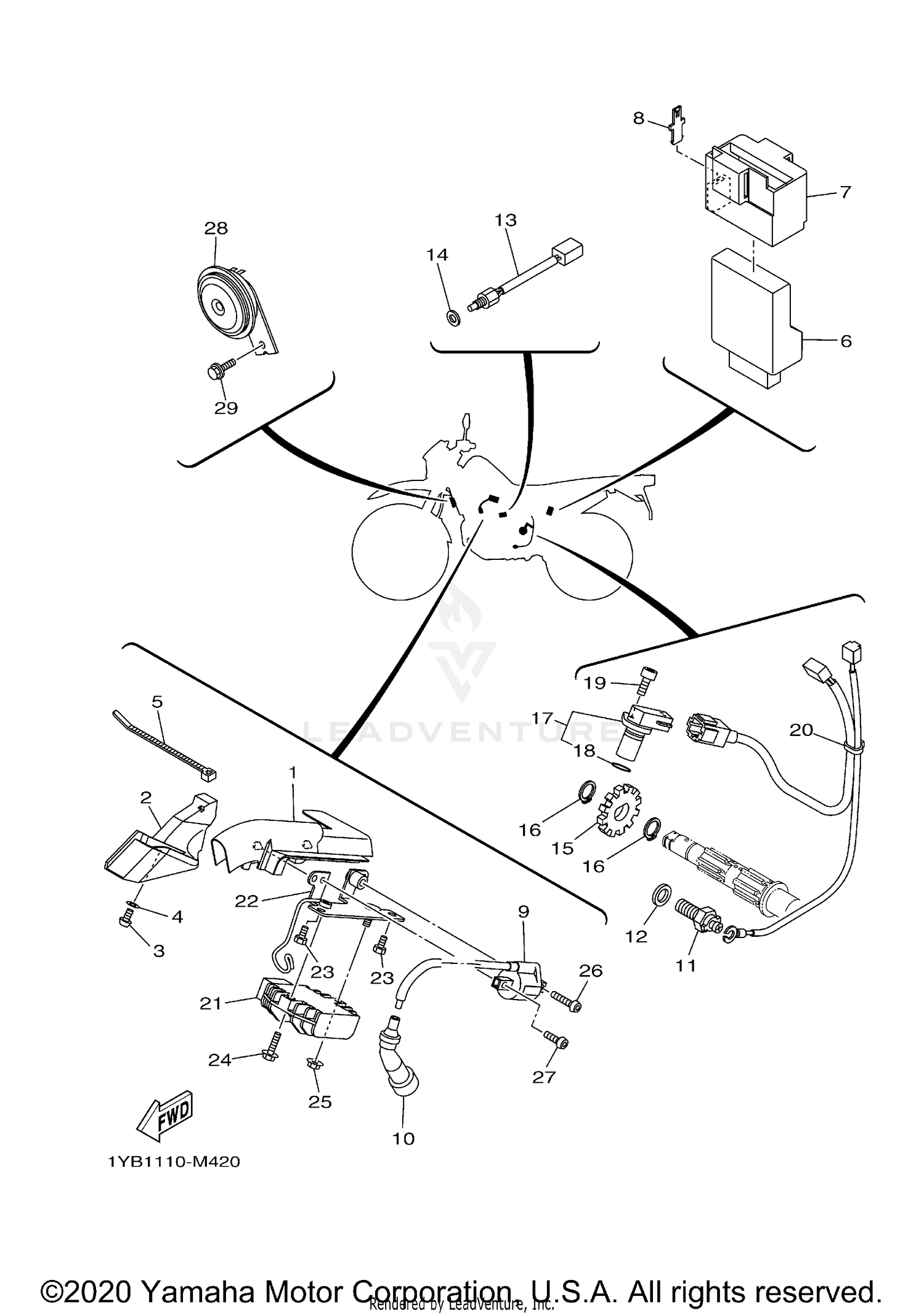

ELECTRICAL 2
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5XT-2117N-00-00 | COVER 3 Price: $45.99 |
| 2 | 5XT-2117R-00-00 | COVER 4 Price: $28.99 |
| 3 | 90149-06298-00 | SCREW Price: $6.49 |
| 4 | 90201-06020-00 | WASHER, PLATE This part replaces 90201-06058-00. Price: $10.49 |
| 5 | 1UA-82591-00-00 | BAND Price: $5.49 |
| 6 | 1YB-8591A-00-00 | ENGINE CONTROL UNIT ASSY Price: $382.99 |
| 7 | 5XT-85546-10-00 | BAND Price: $17.99 |
| 8 | 5XT-82171-00-00 | STAY, FUSE BOX Price: $14.49 |
| 9 | 1S4-82310-03-00 | IGNITION COIL ASSY This part replaces 1S4-82310-02-00. Price: $56.99 |
| 10 | 5VK-82370-00-00 | PLUG CAP ASSY Price: $68.99 |
| 11 | 4GY-82540-10-00 | NEUTRAL SWITCH ASSY This part replaces 4KM-82540-00-00. Price: $41.99 |
| 12 | 90430-10148-00 | GASKET Price: $5.99 |
| 13 | 5XT-83591-00-00 | THERMO UNIT Price: $78.99 |
| 14 | 90430-08204-00 | GASKET Price: $8.99 |
| 15 | 3C5-8354W-00-00 | ROTOR Price: $95.99 |
| 16 | 99009-17400-00 | CIRCLIP Price: $5.49 |
| 17 | 1S4-83755-01-00 | SENSOR, SPEED Price: $106.99 |
| 18 | 1S4-81168-00-00 | O-RING Price: $6.49 |
| 19 | 91312-06014-00 | BOLT, HEXAGON SOCKET HEAD Price: $5.49 |
| 20 | 3C5-82309-00-00 | WIRE, SUB LEAD Price: $42.99 |
| 21 | 5GT-81960-00-00 | RECTIFIER & REGULATOR ASSY Price: $282.99 |
| 23 | 97012-06010-00 | BOLT Price: $0.55 |
| 24 | 95817-06020-00 | BOLT, FLANGE This part replaces 95802-06020-00. Price: $3.50 |
| 25 | 95604-06200-00 | NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
| 26 | 92012-06025-00 | BOLT, BUTTON HEAD Price: $3.40 |
| 27 | 92012-06016-00 | BOLT, BUTTON HEAD Price: $9.49 |
| 28 | 3C5-83371-00-00 | HORN Price: $58.99 |
