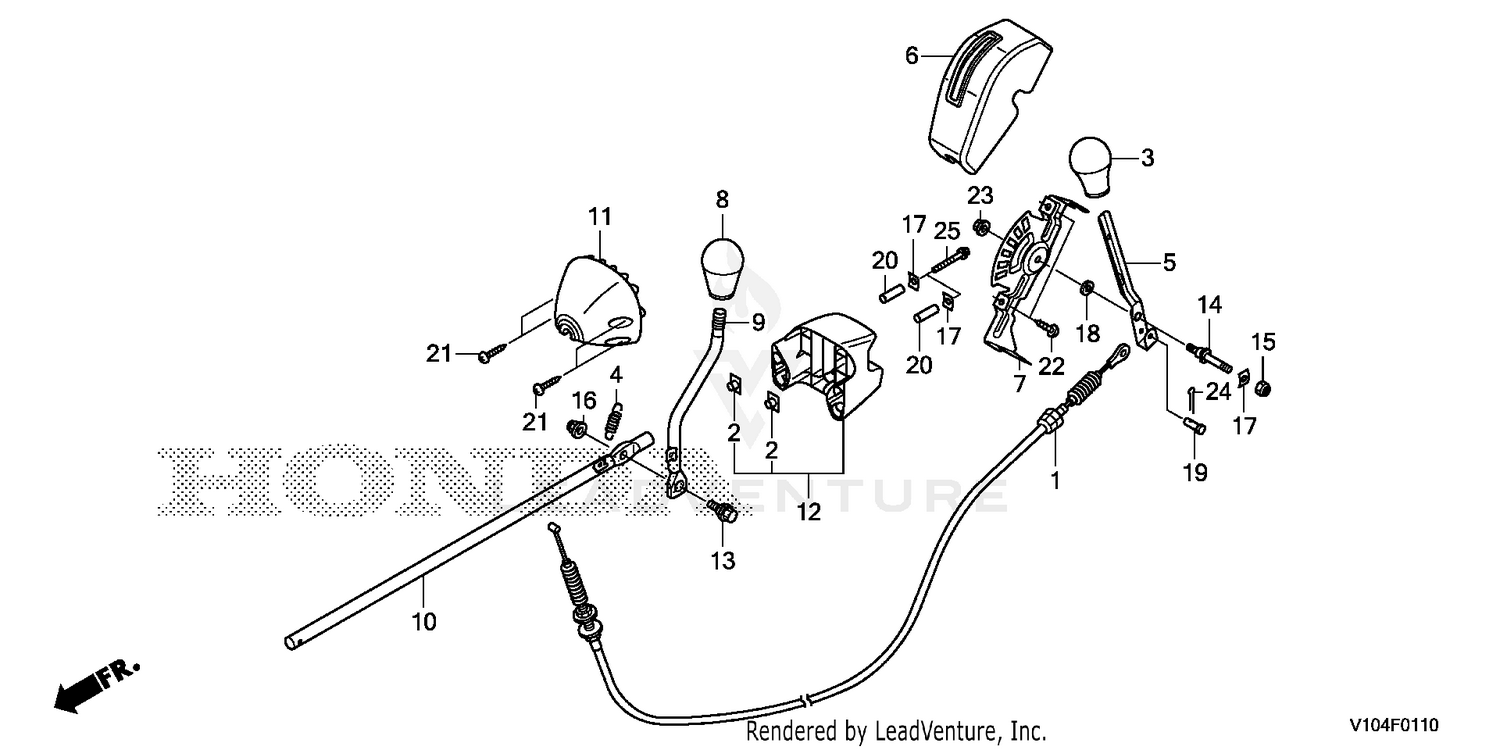

| Ref | Part Number | Description |
|---|
| 1 |
54580-V10-S12 |
CABLE, CHUTE GUIDE Price: $101.90 |
| 2 |
61304-958-003 |
NUT, SPECIAL (6X7) Price: $4.48 |
| 3 |
76272-VH7-300ZB |
GRIP, SHUTTER ADJUST *NH164* (GRIP GRAY) Price: $9.72 |
| 4 |
76329-V10-S10 |
SPRING, CHUTE CONTROL Price: $1.08 |
| 5 |
76333-V10-S10 |
LEVER, CHUTE GUIDE Price: $2.36 |
| 6 |
76335-V10-S10 |
COVER, CHUTE GUIDE Price: $87.18 |
| 7 |
76336-V10-S10 |
PLATE, CHUTE GUIDE Price: $95.48 |
| 8 |
76352-V10-S10 |
GRIP, CHUTE HANDLE Price: $5.80 |
| 9 |
76353-V10-S10 |
HANDLE, CHUTE Price: $9.00 |
| 10 |
76355-V10-S10 |
ROD, CONTROL Price: $70.54 |
| 11 |
76357-V10-S11 |
CASE, FR. CHUTE Price: $14.55 |
| 12 |
76358-V10-S11 |
CASE, RR. CHUTE Price: $13.97 |
| 13 |
90110-V10-S10 |
BOLT, SHOULDER Price: $1.18 |
| 14 |
90114-V10-S10 |
BOLT, CHUTE GUIDE Price: $5.18 |
| 15 |
90303-VH3-N10 |
NUT, NYLON LOCK (6MM) Price: $1.56 |
| 16 |
90309-428-731 |
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) Price: $4.62 |
| 17 |
90501-V25-000 |
WASHER, FRAME JOINT Price: $0.62 |
| 18 |
90503-V10-S10 |
WASHER (10.4MM) Price: $0.20 |
| 19 |
90754-VA9-P40 |
PIN, CABLE JOINT Price: $7.16 |
| 20 |
91559-VH7-B00 |
COLLAR, BATTERY MOUNTING Price: $2.48 |
| 21 |
90118-V10-S10 |
SCREW, TAPPING (4.2X32) (PO) Price: $0.20 |
| 22 |
93913-25220 |
SCREW, TAPPING (5X12) (PO) Price: $0.62 |
| 23 |
94050-06070 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) Price: $1.82 |
| 24 |
94201-16120 |
PIN, COTTER (1.6X12) Price: $1.30 |
