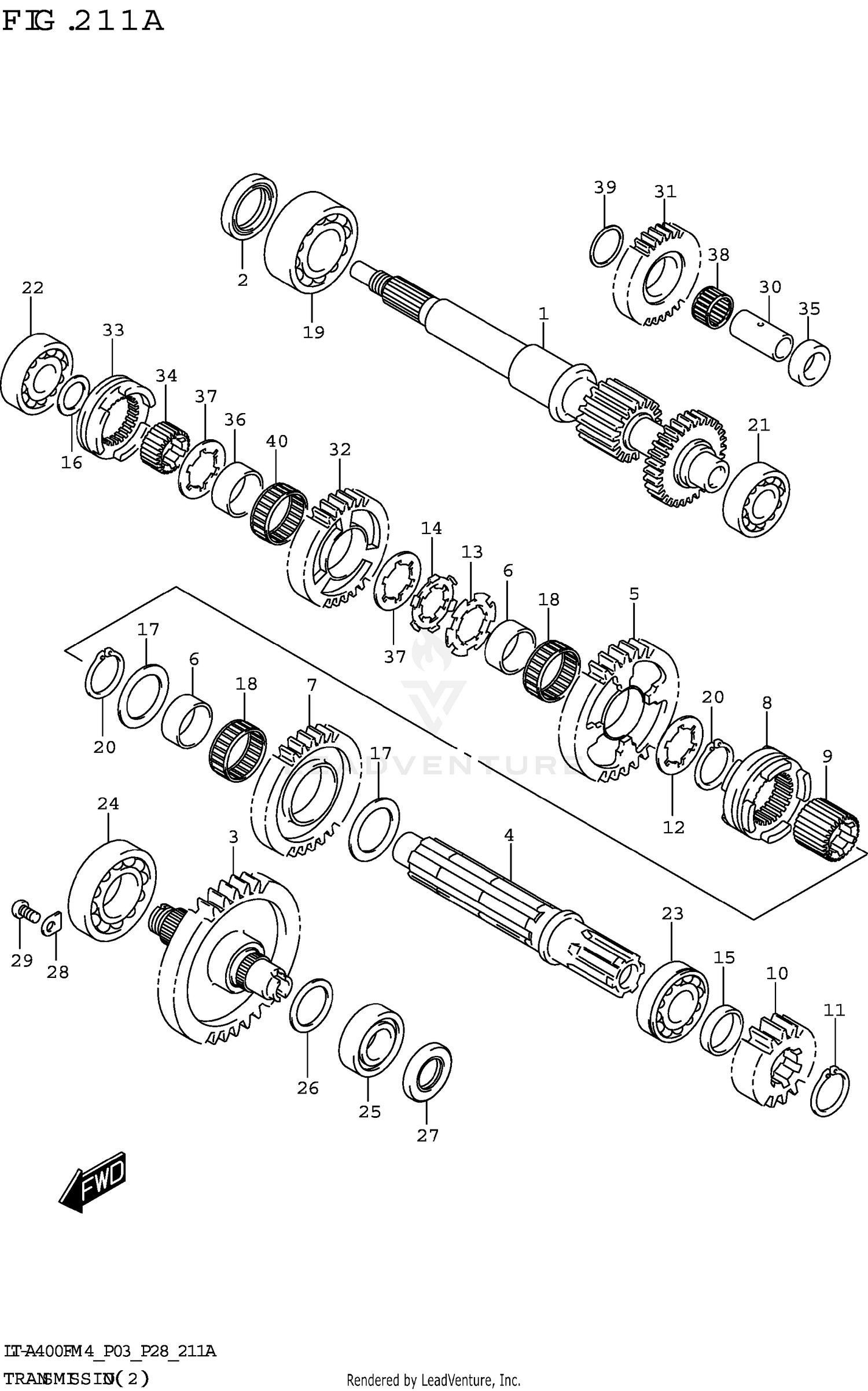

| Ref | Part Number | Description |
|---|
| 1 |
29111-38F10 |
SHAFT,DRIVE (NT:24/16) Price: $284.73 |
| 3 |
29120-27H10 |
SHAFT,SUB T/M OUTPUT (NT:42) Price: $267.82 |
| 4 |
29131-27H00 |
SHAFT,SUB T/M COUNTER Price: $82.02 |
| 6 |
29315-09F51 |
BUSH Price: $30.34 |
| 7 |
29321-09F51 |
GEAR SUB T/M DRIVEN,HI (NT:33 Price: $186.49 |
| 8 |
29331-38F10 |
DOG,SUB T/M SELECT SLIDING Price: $91.07 |
| 9 |
29332-38F10 |
SPACER,SUB T/M SELECT Price: $26.19 |
| 11 |
08331-31259 |
CIRCLIP Price: $2.62 |
| 12 |
09167-25017 |
WASHER (25.1X40X1.5) Price: $4.06 |
| 13 |
09167-25013 |
WASHER,LOCK (25.1X41X1.5) Price: $3.47 |
| 14 |
09169-25001 |
WASHER (25.1X37X2.5) Price: $2.85 |
| 15 |
09180-25097 |
SPACER (25X30X7) Price: $10.72 |
| 16 |
09181-20195 |
SHIM (20X30X1) Price: $3.02 |
| 17 |
09181-25251 |
SHIM (25X40X1) Price: $4.06 |
| 18 |
09263-30018 |
BEARING (30X35X12.8) Price: $27.49 |
| 19 |
08113-62060 |
BEARING Price: $35.98 |
| 20 |
09380-25003 |
RING,SNAP Price: $3.76 |
| 21 |
09262-20069 |
BEARING (20X47X14) Price: $28.35 |
| 22 |
09262-20073 |
BEARING (20X52X15) Price: $28.35 |
| 23 |
09262-25003 |
BEARING (25X52X15) Price: $30.23 |
| 24 |
09262-35038 |
BEARING (35X72X17) Price: $56.94 |
| 25 |
09262-25003 |
BEARING (25X52X15) Price: $30.23 |
| 26 |
09181-25167 |
WASHER, 5TH DRIVE This part replaces 09181-25059. Price: $3.85 |
| 27 |
09283-25076 |
SEAL,OIL (25X45X5) Price: $12.59 |
| 28 |
24741-21A00 |
RETAINER Price: $3.38 |
| 29 |
09125-06122 |
SCREW (6X12) Price: $2.58 |
| 30 |
24551-38F00 |
SHAFT,REVERSE IDLE Price: $16.98 |
| 31 |
24561-27H00 |
GEAR,REVERSE IDLE (NT:28) Price: $106.85 |
| 32 |
24571-27H00 |
GEAR,REVERSE DRIVEN (NT:34) Price: $81.91 |
| 33 |
24581-27H00 |
DOG,REVERSE GR SELECT SLIDING Price: $57.94 |
| 34 |
24582-38F10 |
SPACER,REVERSE SELECT SLIDING Price: $31.03 |
| 35 |
24562-27H00 |
SPACER,REVERSE IDLE GEAR Price: $15.92 |
| 36 |
29315-09F51 |
BUSH Price: $30.34 |
| 37 |
09167-25017 |
WASHER (25.1X40X1.5) Price: $4.06 |
| 38 |
09263-20060 |
BEARING (20X24X12.8) Price: $21.77 |
| 39 |
09181-20195 |
SHIM (20X30X1) Price: $3.02 |
