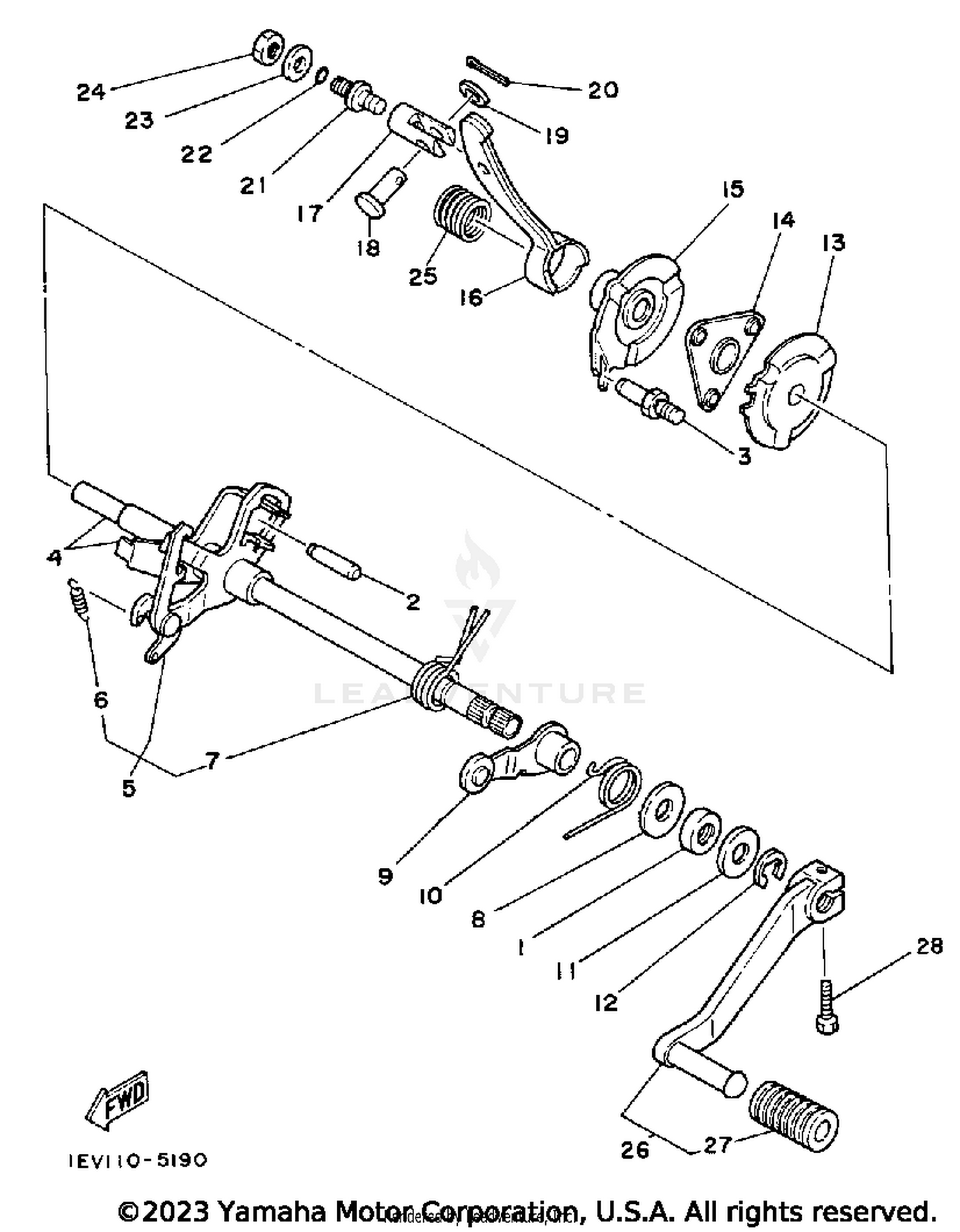

| Ref | Part Number | Description |
|---|
| 1 |
93102-12321-00 |
OIL SEAL (SD 12-22-5 HS) Price: $13.49 |
| 2 |
93608-30152-00 |
PIN, DOWEL Price: $3.50 |
| 3 |
21V-18177-00-00 |
BOLT, STOPPER Price: $16.49 |
| 4 |
29U-W1813-01-00 |
SHIFT SHAFT COMP. Price: $55.99 |
| 5 |
21V-18120-00-00 |
SHIFT LEVER ASSY Price: $108.99 |
| 6 |
90506-08227-00 |
SPRING, TENSION Price: $4.55 |
| 7 |
90508-29570-00 |
SPRING, TORSION Price: $4.90 |
| 8 |
90201-12588-00 |
WASHER, PLATE Price: $8.49 |
| 9 |
4G0-18140-00-00 |
STOPPER LEVER ASSY Price: $44.99 |
| 10 |
90508-26539-00 |
SPRING, TORSION Price: $9.49 |
| 11 |
90201-12575-00 |
WASHER, PLATE Price: $9.49 |
| 12 |
99009-12400-00 |
CIRCLIP Price: $3.59 |
| 13 |
24W-18179-00-00 |
GUIDE Price: $19.99 |
| 14 |
21V-18181-00-00 |
HOLDER, PAWL Price: $24.99 |
| 15 |
24W-18104-00-00 |
SHIFT GUIDE COMP. This part replaces 29U-18104-00-00. Price: $47.99 |
| 16 |
2HT-1817A-00-00 |
ARM, SHIFT 3 Price: $27.99 |
| 17 |
21V-18126-00-00 |
PIN, LEVER Price: $24.99 |
| 18 |
21V-18118-00-00 |
PIN, JOINT Price: $8.99 |
| 19 |
92990-08600-00 |
WASHER, PLATE This part replaces 92901-08600-00. Price: $2.70 |
| 20 |
91490-16020-00 |
PIN, COTTER (91402-16015) Price: $6.70 |
| 21 |
21V-18127-00-00 |
STOPPER, SCREW Price: $18.99 |
| 22 |
93210-07590-00 |
O-RING Price: $8.49 |
| 23 |
90201-08649-00 |
WASHER, PLATE Price: $10.49 |
| 24 |
95317-08700-00 |
NUT This part replaces 95316-08700-00. Price: $10.49 |
| 25 |
90501-16768-00 |
SPRING, COMPRESSION Price: $1.75 |
| 26 |
52H-18110-01-00 |
SHIFT PEDAL ASSEMBLY Price: $39.99 |
| 27 |
132-18113-01-00 |
COVER, CHANGE PEDAL Price: $8.49 |
