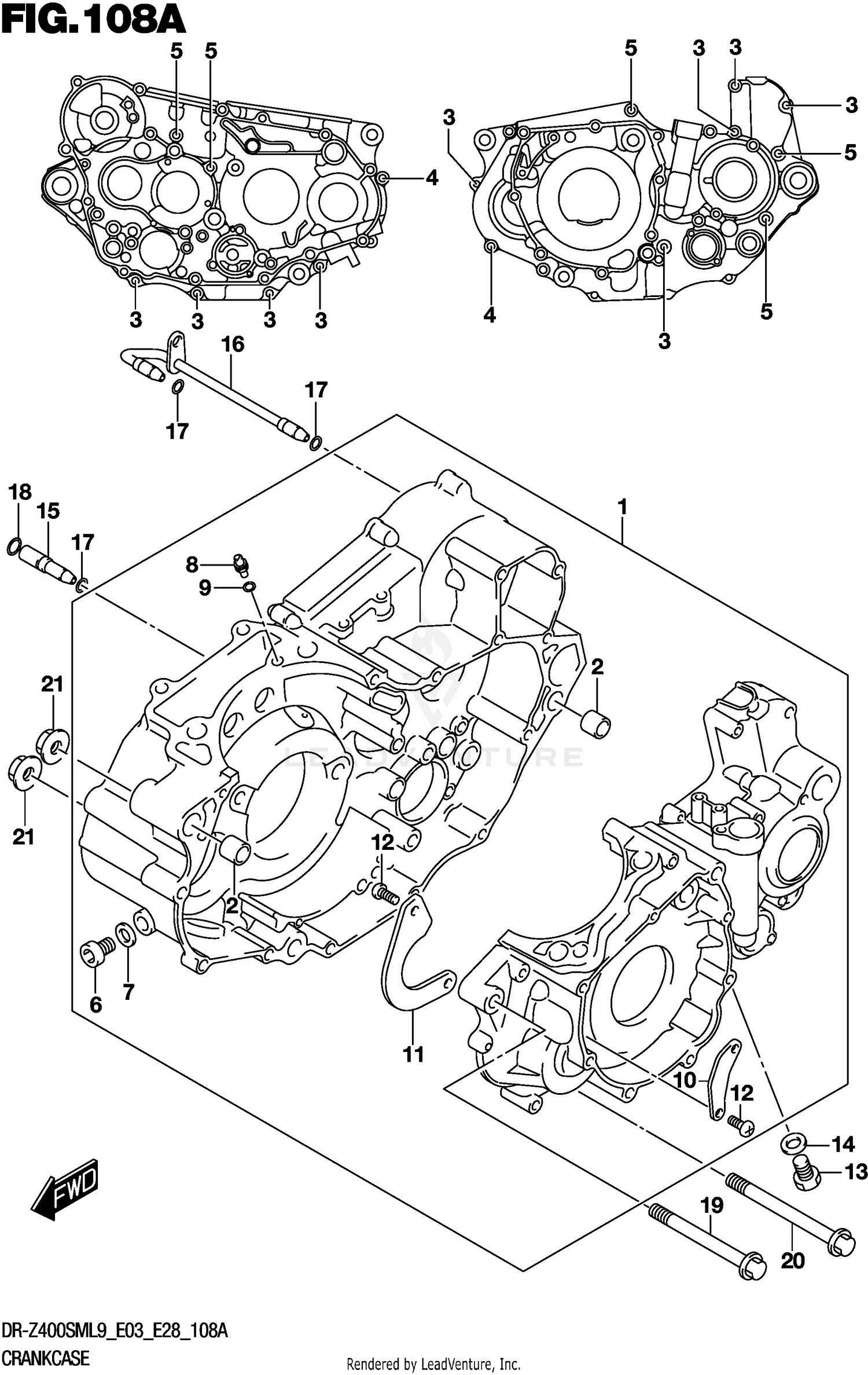

CRANKCASE
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11301-29854 | CRANKCASE SET This part replaces 11301-29853. Price: $772.48 |
| 2 | 04211-13189 | PIN (10.4X13X18) Price: $2.64 |
| 3 | 01547-0640A | BOLT Price: $2.79 |
| 6 | 09248-10010 | PLUG (10X10) Price: $5.16 |
| 7 | 09168-10002 | GASKET (10X14X3.6) Price: $2.22 |
| 8 | 09493-80005 | JET (#80) Price: $17.07 |
| 9 | 09280-04004 | O-RING (D:1.2,ID:4) Price: $1.99 |
| 12 | 09125-06122 | SCREW (6X12) Price: $2.58 |
| 14 | 09168-12002 | GASKET (12.1X16.2X3.7) Price: $1.92 |
| 15 | 11451-29F00 | PIPE,OIL INNER NO.1 Price: $20.98 |
| 16 | 11460-29F00 | PIPE T/M OIL INNER NO.2 Price: $85.12 |
| 17 | 09280-05004 | O-RING (D:1.9,ID:4.8) Price: $2.45 |
| 18 | 09280-07004 | O-RING (D:1.9,ID:6.8) Price: $1.81 |
| 19 | 18601-29F11 | BOLT ENGINE MOUNTING (L:90) Price: $13.22 |
| 20 | 09103-10063 | BOLT (10X115) Price: $9.18 |
