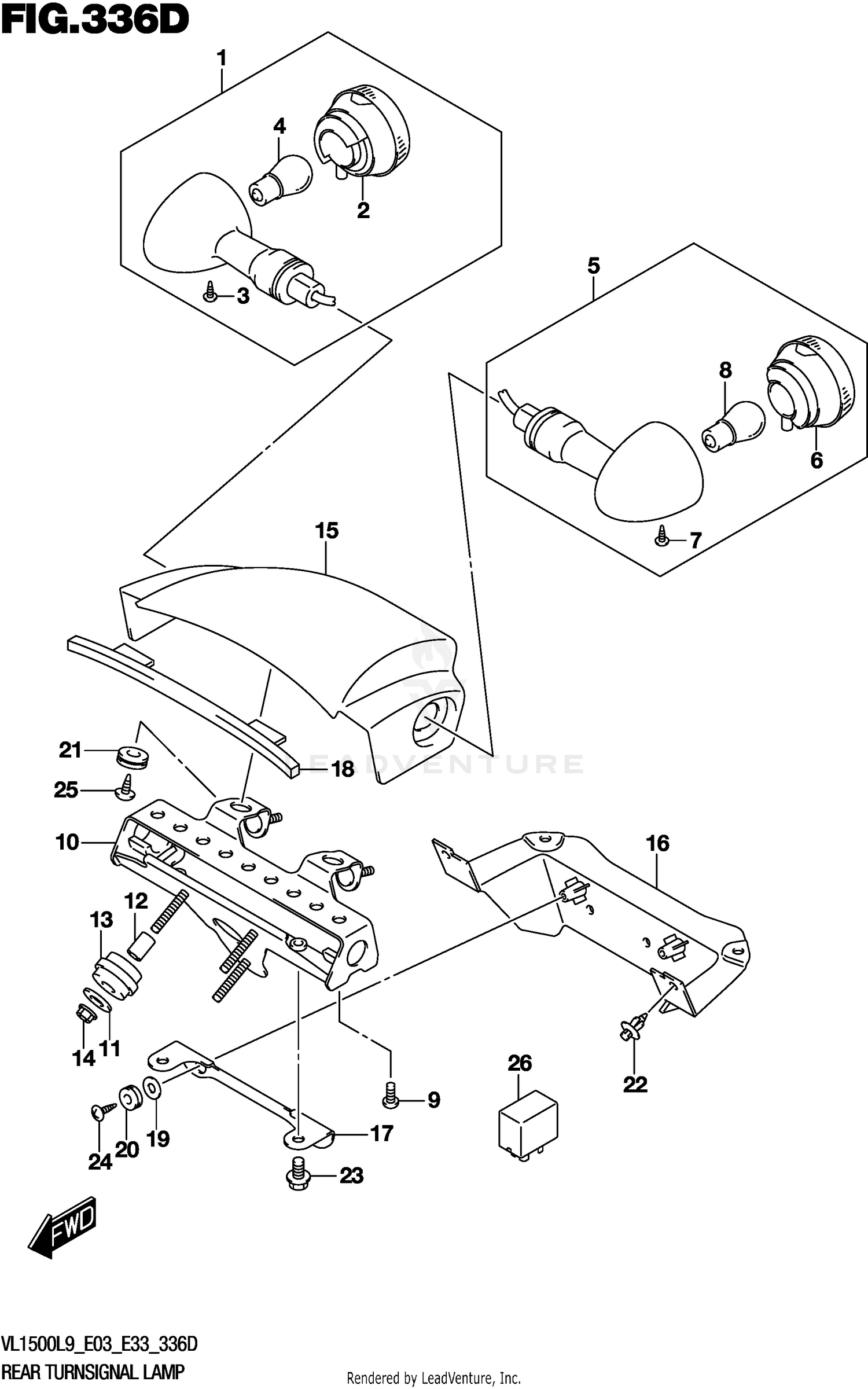

REAR TURNSIGNAL LAMP (VL1500TL9 E33)
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 35603-38AH0 | LAMP ASSY,REAR TURNSIGNAL RH Price: $151.38 |
| 5 | 35604-38AH0 | LAMP ASSY,REAR TURNSIGNAL LH Price: $145.70 |
| 9 | 09103-06507 | BOLT (6X14) Price: $4.54 |
| 10 | 35620-43H01 | BRACKET,REAR TURNSIGNAL Price: $58.31 |
| 11 | 09160-06077 | WASHER (6.5X20X1.2) Price: $2.30 |
| 12 | 09180-06195 | SPACER (6.4X10X18) Price: $4.54 |
| 13 | 09320-10504 | CUSHION Price: $6.08 |
| 14 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 15 | 35621-06J00 | COVER Price: $152.08 |
| 16 | 35622-06J00 | COVER,REAR TURNSIGNAL LWR Price: $46.20 |
| 17 | 35623-43H00 | BRACKET,REAR TURNSIGNAL COVER Price: $11.43 |
| 18 | 35657-06J00 | GASKET Price: $12.60 |
| 19 | 09160-04022 | WASHER (4.3X14X0.8) Price: $2.27 |
| 20 | 09320-06027 | CUSHION (6.5X14X6) This part replaces 09320-06016. Price: $2.56 |
| 21 | 09320-08066 | CUSHION (8.4X18X6) Price: $10.04 |
| 22 | 09409-06314-5PK | CLIP (5.9X20.5,BLACK) Price: $3.23 |
| 23 | 01550-0612A | BOLT Price: $2.37 |
| 24 | 03541-0412A | SCREW Price: $1.65 |
| 25 | 03541-0510A | SCREW Price: $1.73 |
