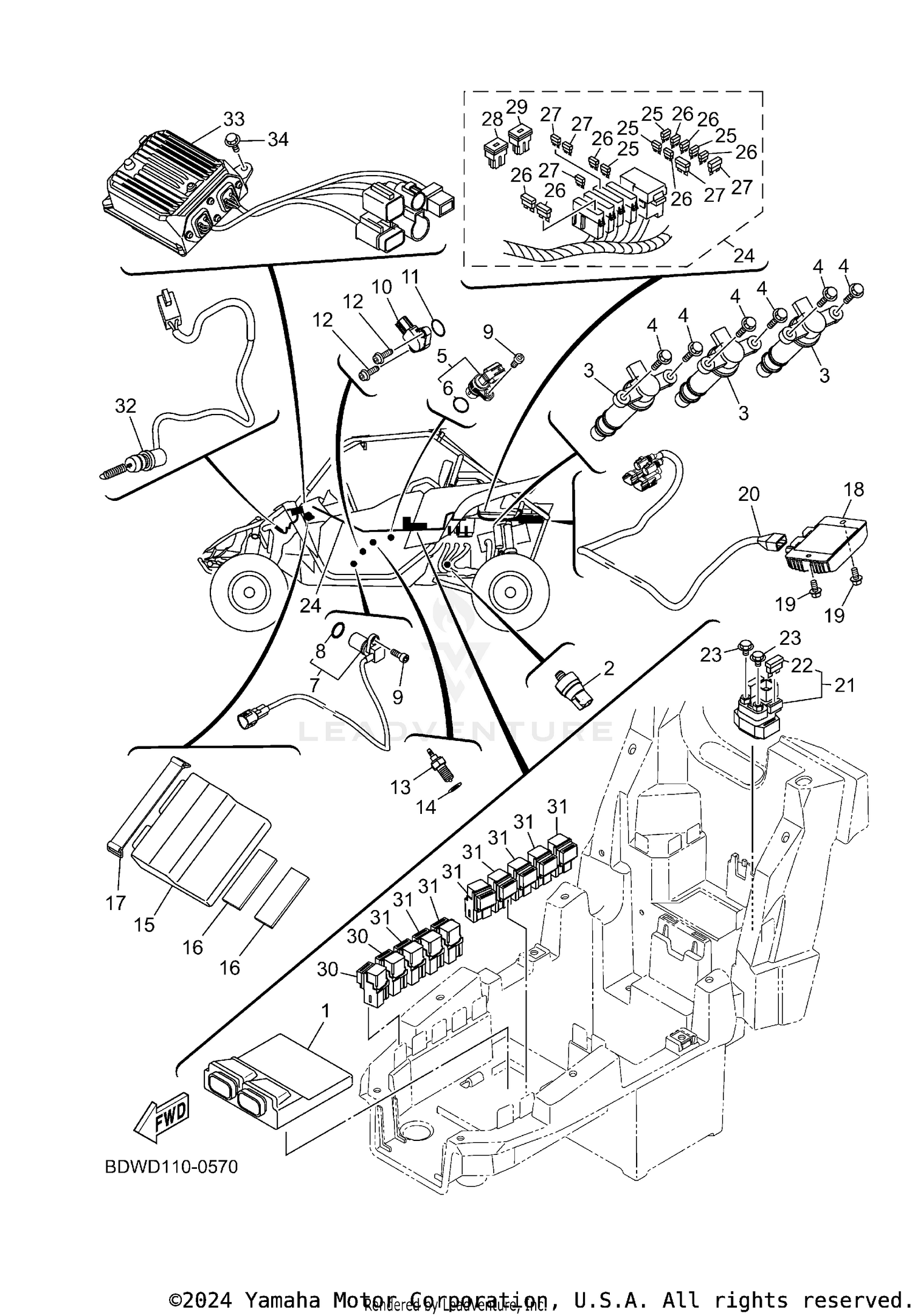

ELECTRICAL 1
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BDW-8591A-00-00 | ENGINE CONTROL UNIT ASSY Price: $262.99 |
| 2 | 8FP-82504-01-00 | OIL PRESSURE SWITCH ASSY Price: $71.99 |
| 3 | 2HC-82310-00-00 | IGNITION COIL ASSY Price: $127.99 |
| 4 | 95D32-06025-00 | BOLT, FLANGE DEEP RECESS Price: $1.15 |
| 5 | 1TP-83755-00-00 | SENSOR, SPEED Price: $84.99 |
| 6 | 4D9-81168-00-00 | O-RING Price: $7.49 |
| 7 | 3D8-83755-01-00 | Sensor Speed Price: $144.99 |
| 8 | 4D9-81168-00-00 | O-RING Price: $7.49 |
| 9 | 91317-06016-00 | BOLT (4MY) This part replaces 90110-06193-00. Price: $1.25 |
| 10 | BDW-85899-00-00 | SENSOR, GEAR POSITION Price: $105.99 |
| 11 | 93210-17008-00 | O-RING Price: $2.65 |
| 12 | 90110-05038-00 | BOLT, HEXAGON SOCKET HEAD This part replaces 90110-05067-00. Price: $8.49 |
| 13 | 3GB-82540-01-00 | NEUTRAL SWITCH ASSY Price: $63.99 |
| 14 | 90430-10148-00 | GASKET Price: $5.99 |
| 15 | BDW-86510-10-00 | MOTOR CONTROL UNIT ASSY Price: $933.99 |
| 16 | 1HP-H2176-01-00 | DAMPER This part replaces 34D-82176-00-00. Price: $2.40 |
| 17 | 2T4-82131-00-00 | BAND, BATTERY Price: $9.99 |
| 18 | BDW-81963-00-00 | GENERATOR CONTROL UNIT Price: $596.99 |
| 19 | 95817-08016-00 | BOLT,FLANGE (JN5) Price: $5.49 |
| 20 | BDW-82583-00-00 | WIRE, SUB LEAD Price: $367.99 |
| 21 | 4D3-81940-00-00 | STARTER RELAY ASSY (RC19-077A) Price: $115.99 |
| 22 | 36Y-82151-00-00 | FUSE (15A-BLUE) Price: $6.49 |
| 23 | 95022-06008-00 | BOLT, FLANGE Price: $9.49 |
| 24 | BDW-H2590-11-00 | WIRE HARNESS ASSY Price: $590.99 |
| 25 | 67F-82151-50-00 | FUSE (15A) This part replaces 5JJ-82151-10-00. Price: $4.05 |
| 26 | 67F-82151-40-00 | FUSE (10A) This part replaces 5JJ-82151-30-00. Price: $7.10 |
| 27 | 5JJ-82151-60-00 | FUSE (30A-BL) Price: $8.49 |
| 30 | 5DM-81950-01-00 | RELAY ASSY (G8HN-1C4T-DJ-Y52) Price: $31.99 |
| 31 | 8DM-81950-11-00 | RELAY ASSY (8DM-11) Price: $33.99 |
| 32 | B90-82530-01-00 | STOP SWITCH ASSY Price: $57.99 |
| 33 | B5H-859A0-01-00 | POWER STRG. CONT. UNIT ASSY Price: $875.99 |
