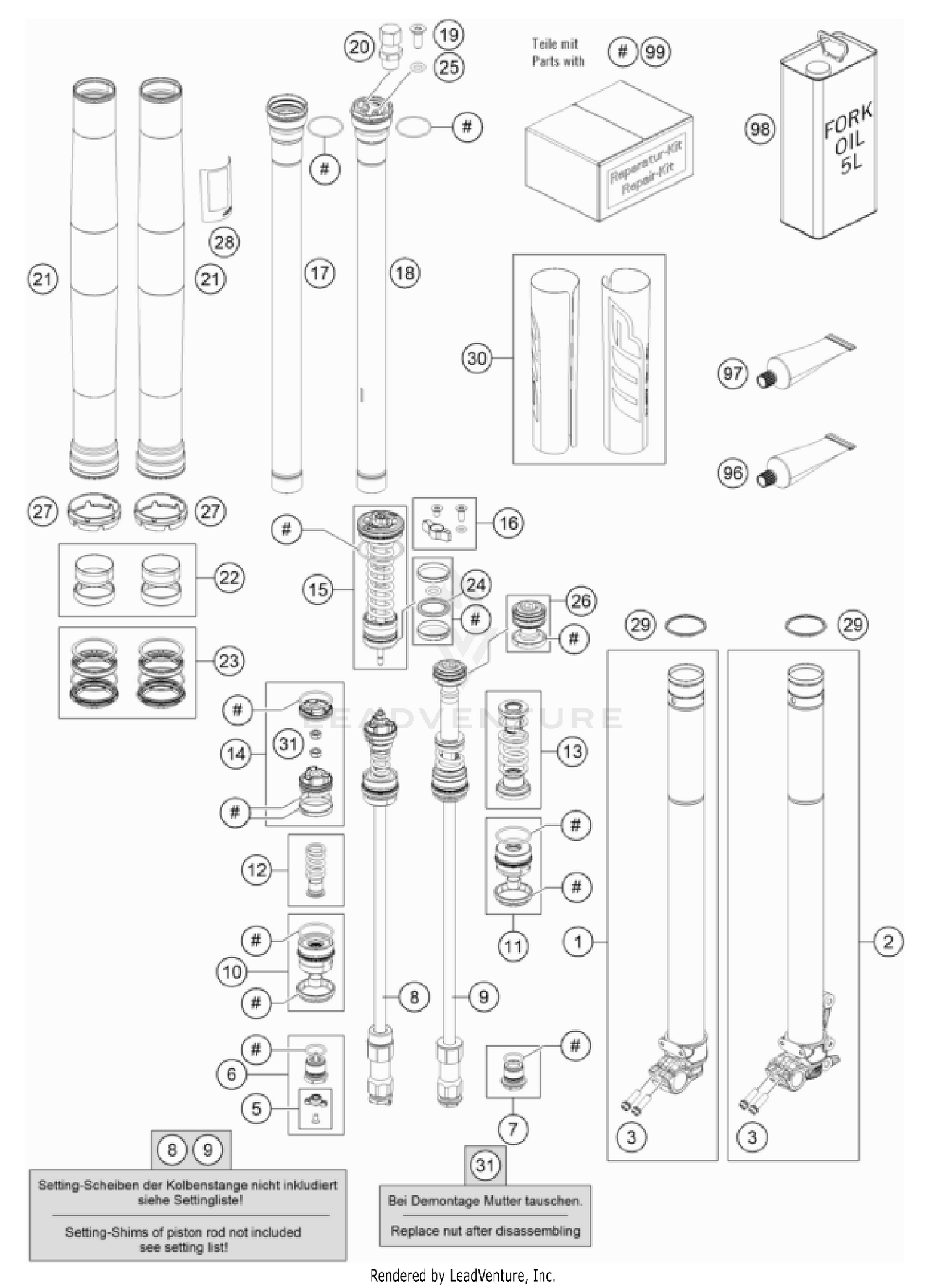

| Ref | Part Number | Description |
|---|
| 1 |
48602046S2 |
Axle clamp ri. with inner tube cpl. Price: $420.85 |
| 2 |
48602045S2 |
Axle clamp le. with inner tube cpl. Price: $445.60 |
| 3 |
0025080256 |
HH collar screw M8x25 Price: $2.41 |
| 7 |
48601533S |
HH collar screw M20x1x18 cpl. Price: $25.07 |
| 8 |
48601574S6 |
Pistonrod D12 M9x1 L385 cpl. Price: $358.37 |
| 9 |
48601501S3 |
Piston rod 12x470 cpl. Price: $344.18 |
| 10 |
48602131S2 |
Screw sleeve M35,5x0,8 cpl Price: $63.57 |
| 11 |
48602138S2 |
Screw sleeve M35,5x0,8 cpl. Price: $56.31 |
| 12 |
48600578S |
Spring (13,9) 37-32 rebound cpl. Price: $4.83 |
| 13 |
48601820S |
Spring (22) 60-30 rebound cpl. Price: $30.46 |
| 15 |
48602049S5 |
Basevalve cpl. This part replaces 48602049S2. Price: $187.98 |
| 17 |
48602048S2 |
Screw cap M51x1,5 cpl. Price: $246.83 |
| 18 |
48602047S3 |
Screw cap M51x1,5 cpl. Price: $318.55 |
| 19 |
00700007 |
ISA Senkkopfschraube M4x8 lt. Zchng Price: $1.20 |
| 20 |
48601494ST |
Schrader valve M8x1 cmpl. This part replaces 48601494S. Price: $29.39 |
| 21 |
48602148 |
Outer fork tube 49.13x567 dt54 db60 Price: $305.24 |
| 24 |
04100002 |
X-ring 26,57x3,53 FKM80 Price: $6.15 |
| 25 |
50180222 |
O-ring 4x1,5 NBR70 Price: $1.20 |
| 26 |
48602135S |
Piston 33,6x35,4 cpl. Price: $61.15 |
| 27 |
S639200001000FA |
Fork protection ring 59,8mm This part replaces 48601948. Price: $2.41 |
| 28 |
52000247 |
Sticker Warning Price: $74.35 |
| 29 |
48602007 |
Stroke indicator 48mm red Price: $4.83 |
| 30 |
52000235SET |
Sticker set XACT 5 AER CC 182.5x238 Price: $34.99 |
| 31 |
48602128 |
Nut M6 h5,4 SW10 Price: $1.20 |
