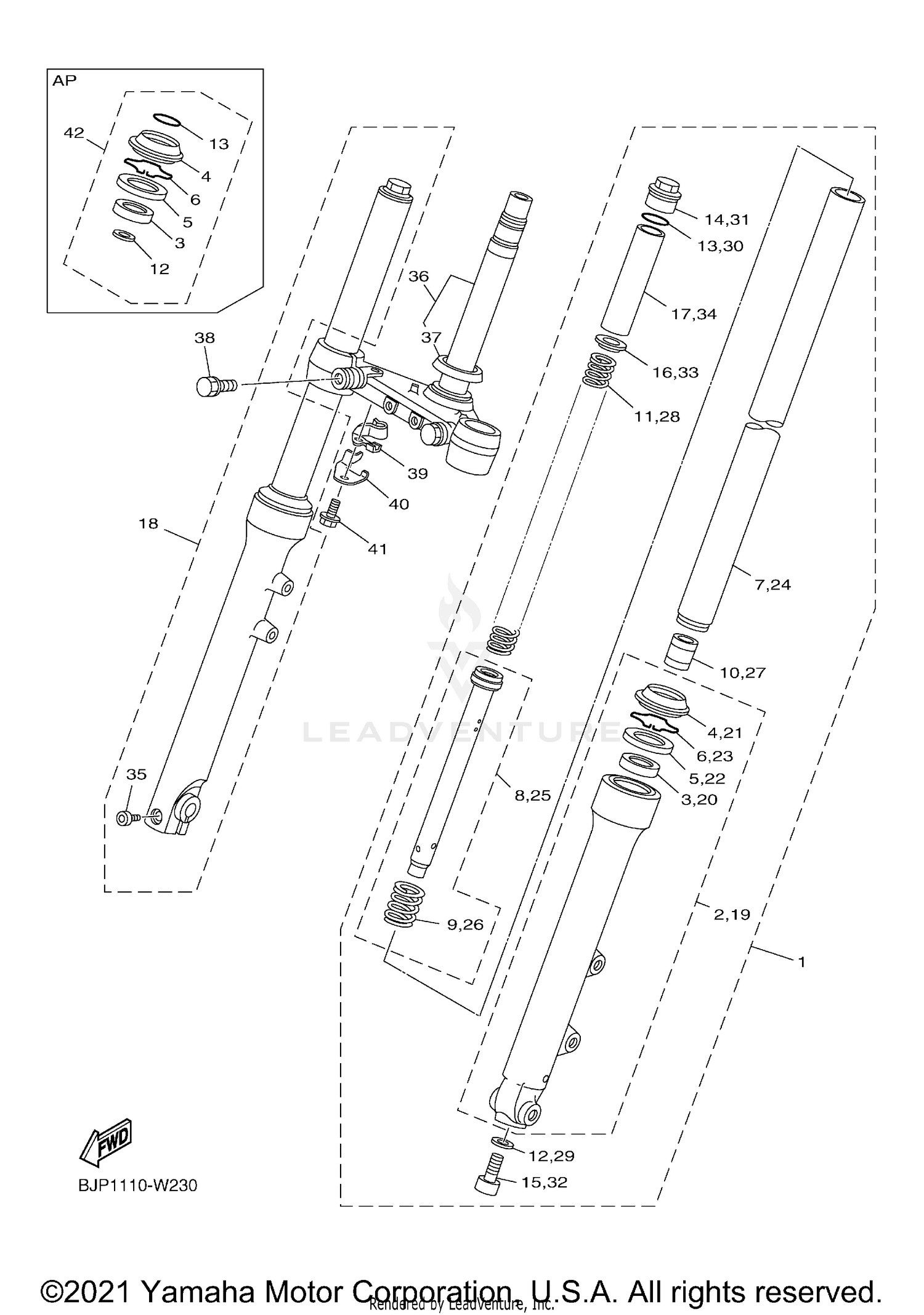

| Ref | Part Number | Description |
|---|
| 1 |
2UJ-23102-30-00 |
FRONT FORK ASSY (L.H) Price: $716.99 |
| 2 |
2UJ-23126-30-00 |
TUBE, OUTER (LEFT) Price: $244.99 |
| 3 |
51Y-23125-00-00 |
METAL, SLIDE 1 Price: $32.99 |
| 4 |
2UJ-23144-00-00 |
SEAL, DUST Price: $32.99 |
| 5 |
2UJ-23145-00-00 |
OIL SEAL Price: $24.99 |
| 6 |
22W-23153-L0-00 |
RING, SNAP Price: $9.49 |
| 7 |
2UJ-23110-00-00 |
INNER TUBE COMP. 1 Price: $171.99 |
| 8 |
2UJ-23170-00-00 |
CYLINDER COMP., FRONT FORK Price: $76.99 |
| 9 |
509-23151-L0-00 |
SPRING, REBOUND This part replaces 2W6-23151-00-00. Price: $16.99 |
| 10 |
3R6-23173-L0-00 |
SPINDLE, TAPER Price: $18.99 |
| 11 |
2UJ-23141-00-00 |
SPRING, FRONT FORK Price: $32.99 |
| 13 |
3J2-23114-00-00 |
O-RING Price: $9.49 |
| 14 |
2JN-23111-00-00 |
BOLT, CAP Price: $44.99 |
| 15 |
3D8-23181-00-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 278-23181-50-00. Price: $9.49 |
| 16 |
3DM-23149-10-00 |
WASHER, SPRING UPPER Price: $6.49 |
| 17 |
58T-23118-L0-00 |
SPACER This part replaces 15R-23118-00-00. Price: $13.49 |
| 18 |
2UJ-23103-30-00 |
FRONT FORK ASSY (R.H) Price: $421.99 |
| 19 |
2UJ-23136-30-00 |
TUBE, OUTER (RIGHT) Price: $190.99 |
| 20 |
51Y-23125-00-00 |
METAL, SLIDE 1 Price: $32.99 |
| 21 |
2UJ-23144-00-00 |
SEAL, DUST Price: $32.99 |
| 22 |
2UJ-23145-00-00 |
OIL SEAL Price: $24.99 |
| 23 |
22W-23153-L0-00 |
RING, SNAP Price: $9.49 |
| 24 |
2UJ-23110-00-00 |
INNER TUBE COMP. 1 Price: $171.99 |
| 25 |
2UJ-23170-00-00 |
CYLINDER COMP., FRONT FORK Price: $76.99 |
| 26 |
509-23151-L0-00 |
SPRING, REBOUND This part replaces 2W6-23151-00-00. Price: $16.99 |
| 27 |
3R6-23173-L0-00 |
SPINDLE, TAPER Price: $18.99 |
| 28 |
2UJ-23141-00-00 |
SPRING, FRONT FORK Price: $32.99 |
| 30 |
3J2-23114-00-00 |
O-RING Price: $9.49 |
| 31 |
2JN-23111-00-00 |
BOLT, CAP Price: $44.99 |
| 32 |
3D8-23181-00-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 278-23181-50-00. Price: $9.49 |
| 33 |
3DM-23149-10-00 |
WASHER, SPRING UPPER Price: $6.49 |
| 34 |
58T-23118-L0-00 |
SPACER This part replaces 15R-23118-00-00. Price: $13.49 |
| 35 |
91314-08035-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.70 |
| 36 |
2UJ-23340-40-00 |
UNDER BRACKET COMP. Price: $216.99 |
| 37 |
5VC-23462-00-00 |
SEAL, DUST Price: $8.99 |
| 38 |
2UJ-23346-10-00 |
BOLT 1 Price: $4.50 |
| 39 |
3DM-25886-10-00 |
HOLDER, BRAKE HOSE Price: $17.49 |
| 40 |
2UJ-26114-00-00 |
STOPPER, 1 Price: $4.35 |
| 41 |
95817-06010-00 |
BOLT,FLANGE This part replaces 95807-06010-00. Price: $5.49 |
