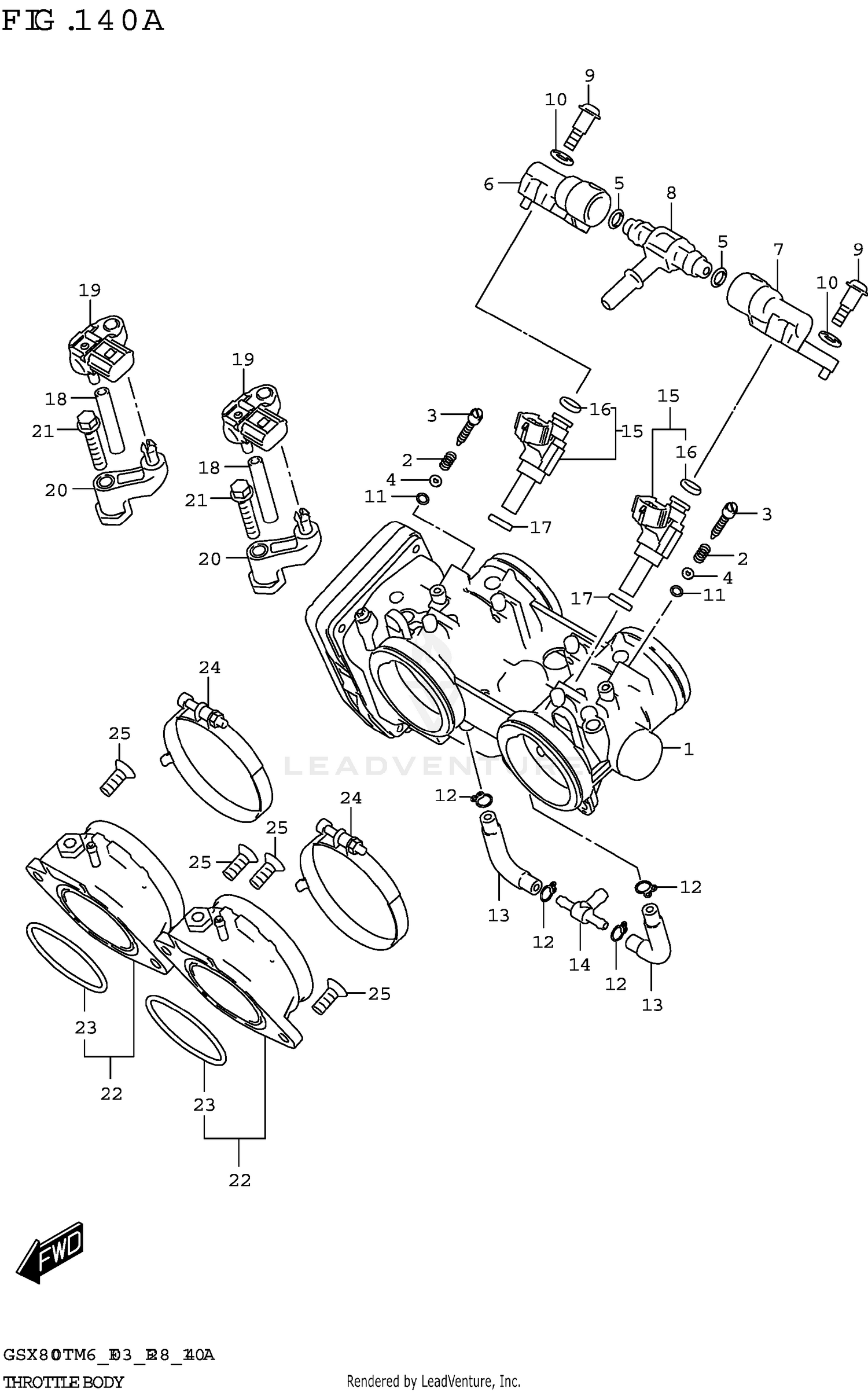

THROTTLE BODY
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13405-25L00 | MIXER ASSY Price: $444.57 |
| 2 | 13268-48700 | SPRING,THROTTLE SCREW Price: $5.36 |
| 3 | 13269-33E00 | SCREW Price: $14.10 |
| 4 | 13295-29901 | O-RING Price: $5.36 |
| 5 | 13374-32G00 | O-RING Price: $7.81 |
| 6 | 13471-25L00 | DELIVERY PIPE Price: $27.04 |
| 7 | 13472-25L00 | DELIVERY PIPE Price: $27.04 |
| 8 | 13473-25L00 | NIPPLE Price: $32.42 |
| 9 | 13601-11J00 | SCREW Price: $6.09 |
| 10 | 13602-29G01 | PACKING Price: $2.94 |
| 11 | 13606-47A00 | WASHER Price: $3.55 |
| 12 | 09401-06101 | CLIP This part replaces 13671-12C00. Price: $2.48 |
| 13 | 13682-25L00 | HOSE Price: $22.98 |
| 14 | 13685-04F10 | NIPPLE Price: $11.97 |
| 15 | 15710-17K00 | INJECTOR ASSY Price: $188.20 |
| 16 | 15717-58B00 | O-RING Price: $12.30 |
| 17 | 15722-14J00 | SEAL Price: $14.43 |
| 18 | 09355-35007-030 | HOSE Price: $1.41 |
| 19 | 18590-18K10 | SENSOR,BOOST Price: $225.92 |
| 20 | 18596-25L00 | BRACKET,AIR PRESSURE SENSOR Price: $13.40 |
| 21 | 01547-0630A | BOLT Price: $2.79 |
| 22 | 13101-25L00 | PIPE ASSY,INTAKE Price: $54.61 |
| 24 | 13170-25L10 | CLAMP,INTAKE PIPE Price: $9.31 |
