Parts Catalog

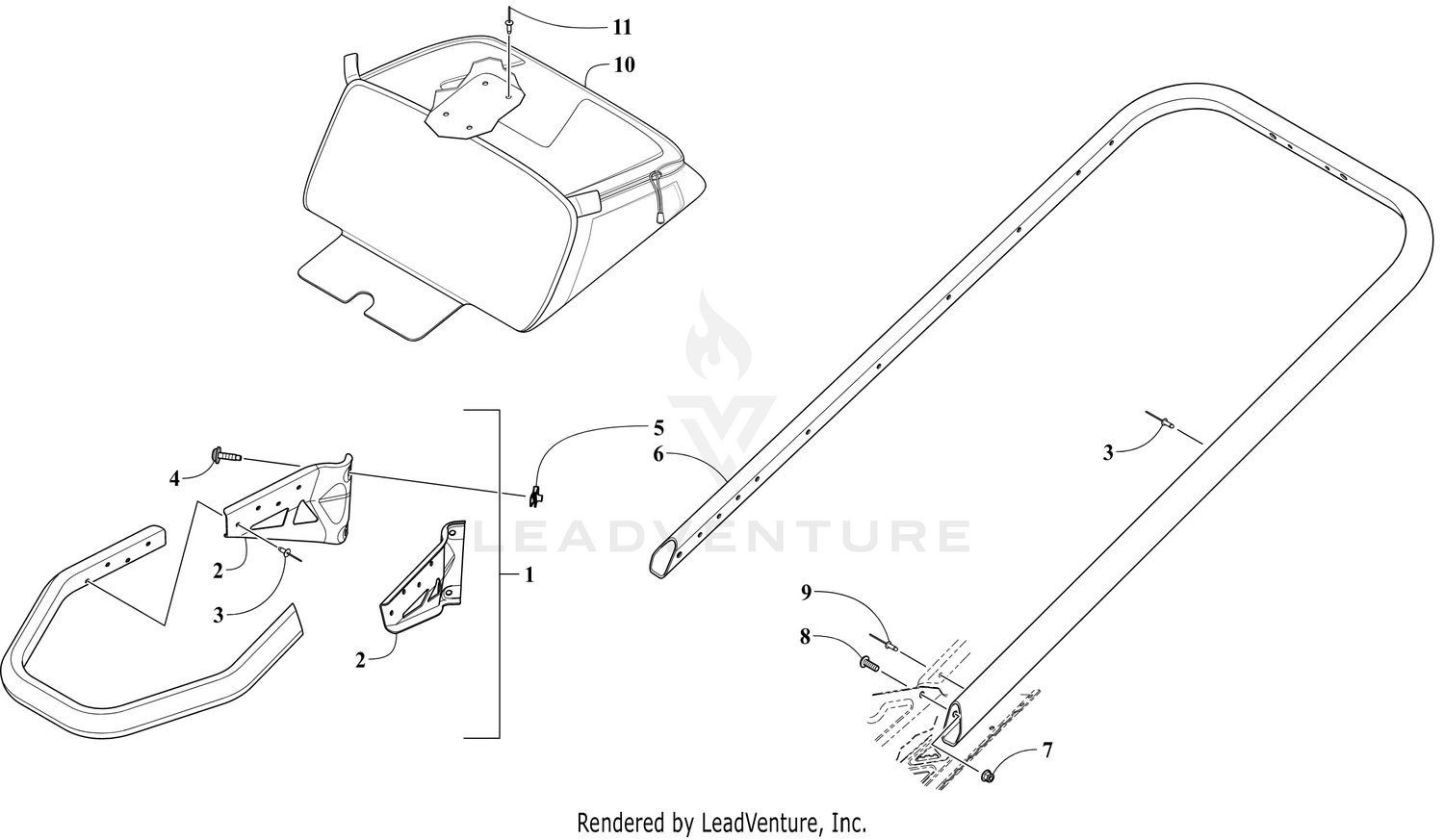

BUMPERS AND STORAGE [110018]

Parts (10)

Ref	Part Number	Description
2	1707-576	Bracket, Mounting - Bumper - Right - Black Price: $19.35
2	1707-577	Bracket, Mounting - Bumper - Left - Black Price: $19.35
3	8060-706	Rivet Price: $0.46
4	0423-609	Screw, Machine Not Available Price:
5	0423-577	Clip, U-Nut Price: $0.46
6	2707-576	Bumper, Rear - Black Price: $131.95
7	8476-620	Screw, Machine Price: $0.48
8	8427-602	Nut, Hex Price: $0.23
9	8061-708	Rivet Price: $1.08
10	1616-189	Bag, Tunnel w/Rivets Price: $116.95
