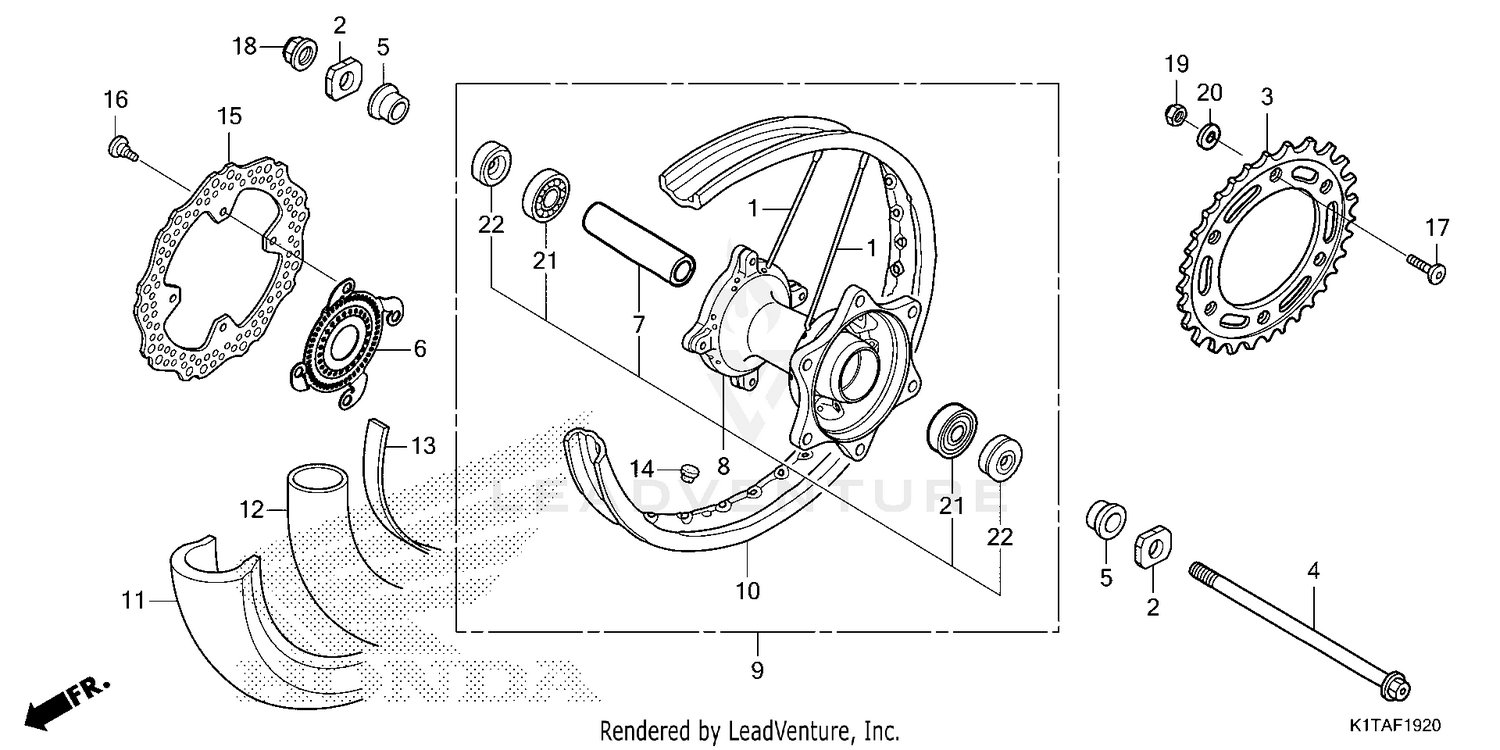

| Ref | Part Number | Description |
|---|
| 1 |
06420-KZZ-900 |
SPOKE SET, RR. Price: $2.58 |
| 2 |
40544-KZZ-900 |
ADJUSTER, CHAIN Price: $11.31 |
| 3 |
41201-K1T-E10 |
SPROCKET, FINAL DRIVEN (40T) Price: $54.93 |
| 4 |
42301-K1T-E10 |
AXLE, RR. WHEEL Price: $59.80 |
| 5 |
42312-KZZ-900 |
COLLAR, RR. WHEEL Price: $20.65 |
| 6 |
42515-K1T-EB0 |
RING, RR. PULSER Price: $64.44 |
| 7 |
42620-KZZ-900 |
COLLAR, RR. AXLE DISTANCE Price: $18.40 |
| 8 |
42635-K1T-EB0 |
HUB SUB-ASSY., RR. Price: $189.91 |
| 9 |
42650-K1T-EB0 |
WHEEL SUB-ASSY., RR. Price: $430.69 |
| 10 |
42701-K1T-E11 |
RIM, RR. WHEEL (18X2.15) Price: $232.13 |
| 11 |
42711-KZZ-904 |
TIRE, RR. (120/80-18 M/C 62P) (IRC) Price: $93.66 |
| 12 |
42712-KT1-673 |
TUBE, TIRE Price: $44.24 |
| 13 |
42713-KZZ-901 |
FLAP, TIRE (IRC) Price: $5.67 |
| 14 |
42717-329-000 |
CAP, RIM HOLE Price: $5.27 |
| 15 |
43351-KZZ-901 |
DISK, RR. BRAKE Price: $63.03 |
| 16 |
90105-KSP-930 |
BOLT, DISK (8X22) Price: $0.98 |
| 16 |
90105-MK5-010 |
BOLT, DISK (8X22) Price: $6.20 |
| 17 |
90125-KZJ-900 |
BOLT, SPROCKET FIXING Price: $1.62 |
| 18 |
90306-KCJ-951 |
NUT, U (16MM) Price: $5.89 |
| 19 |
90309-ML3-791 |
NUT, U (8MM) (FUSE RASHI) Price: $5.47 |
| 20 |
90511-KRH-780 |
WASHER (8MM) Price: $1.22 |
| 21 |
91051-K1T-EB1 |
BRG (6303U) Price: $19.85 |
