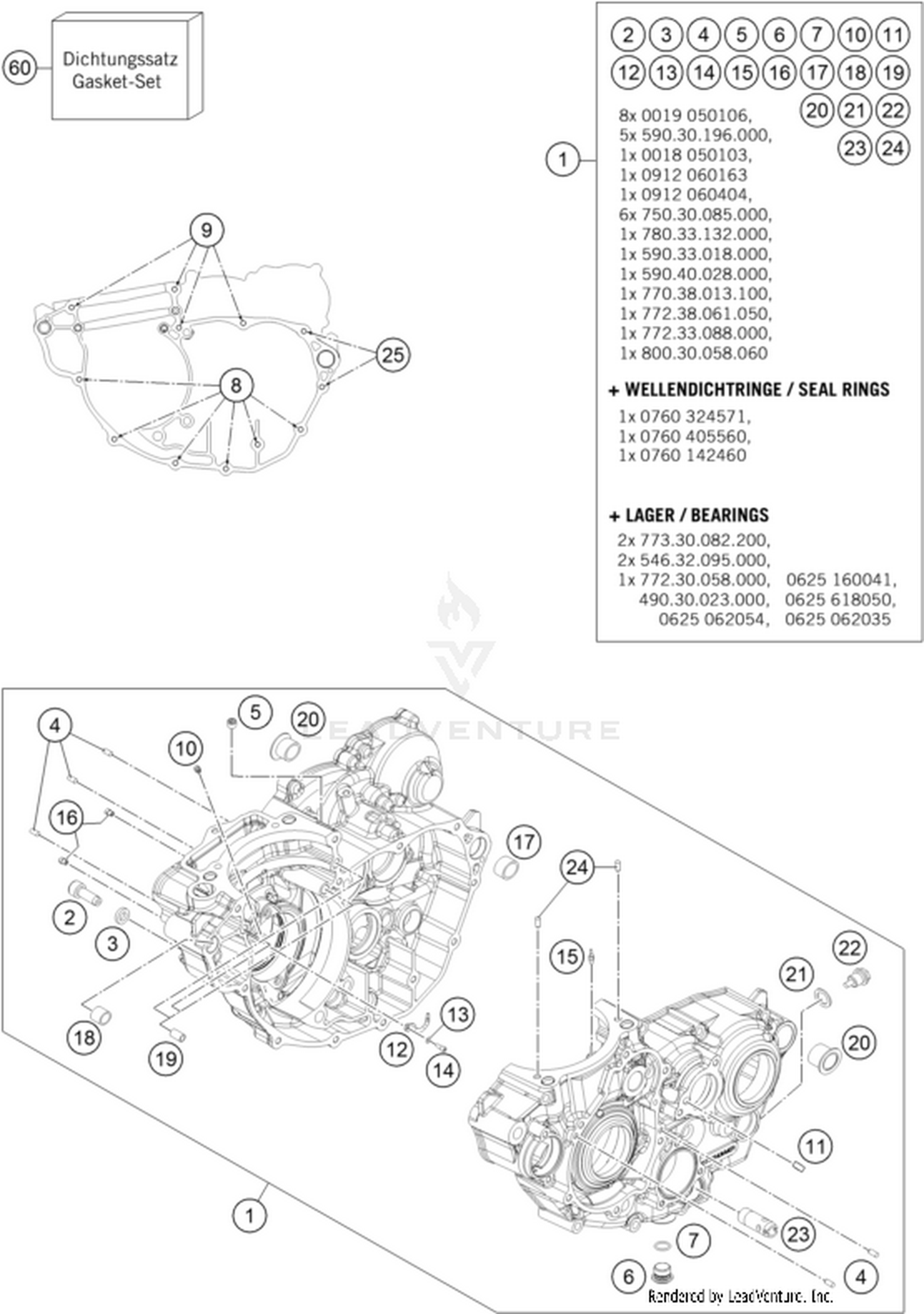

| Ref | Part Number | Description |
|---|
| 1 |
77730000244 |
ENGINE CASE CPL. 350 Price: Call Us |
| 2 |
58030080000 |
LOCATING SCREW M8 L=23 Price: Call Us |
| 3 |
58030081000 |
CU-SEAL RING 8 X 14 X 3 Price: Call Us |
| 4 |
0402040980 |
Needle roll.DIN5402 NRB 4X9.8 Price: Call Us |
| 6 |
78036081100 |
Screw plug M14x1,5 This part replaces 78036081000. Price: Call Us |
| 7 |
0770110015 |
O-ring 11x1.5 VITON Price: Call Us |
| 8 |
0025060556 |
HH collar screw M6x55 TX30 Price: Call Us |
| 9 |
0025060656 |
HH COLLAR SCREW M6X65 TX30 Price: Call Us |
| 10 |
80030058060 |
OIL JET ''60'' M4 Price: Call Us |
| 11 |
77230066000 |
THROTTLE M5X10X0,5 Price: Call Us |
| 12 |
77830064050 |
OIL JET CURVED '' 50 '' Price: Call Us |
| 13 |
0770035020 |
O-RING 3,5X2,00 NBR Price: Call Us |
| 14 |
0912040103 |
AH.SCREW DIN0912-M 4X10 Price: Call Us |
| 16 |
59030058000 |
JET 100 BING(44-031/180) M4 Price: Call Us |
| 17 |
59030024000 |
DOWEL 17 X 19 X 12 Price: Call Us |
| 18 |
54630027000 |
DOWEL BUSHING 13,8X11X12 Price: Call Us |
| 19 |
59030023100 |
Dowel, 6x8x11.5 This part replaces 59030023000. Price: Call Us |
| 20 |
75030010100 |
CASE BUSH Price: Call Us |
| 21 |
58038022000 |
CU-seal ring DIN7603-12X18X1.5 Price: Call Us |
| 23 |
77038022000 |
OIL INTAKEPIPE Price: Call Us |
| 24 |
0402050080 |
CYLINDER ROLLER ZRO 5X8 Price: Call Us |
| 25 |
0025060856 |
HH COLLAR SCREW M6X85 TX30 Price: Call Us |
