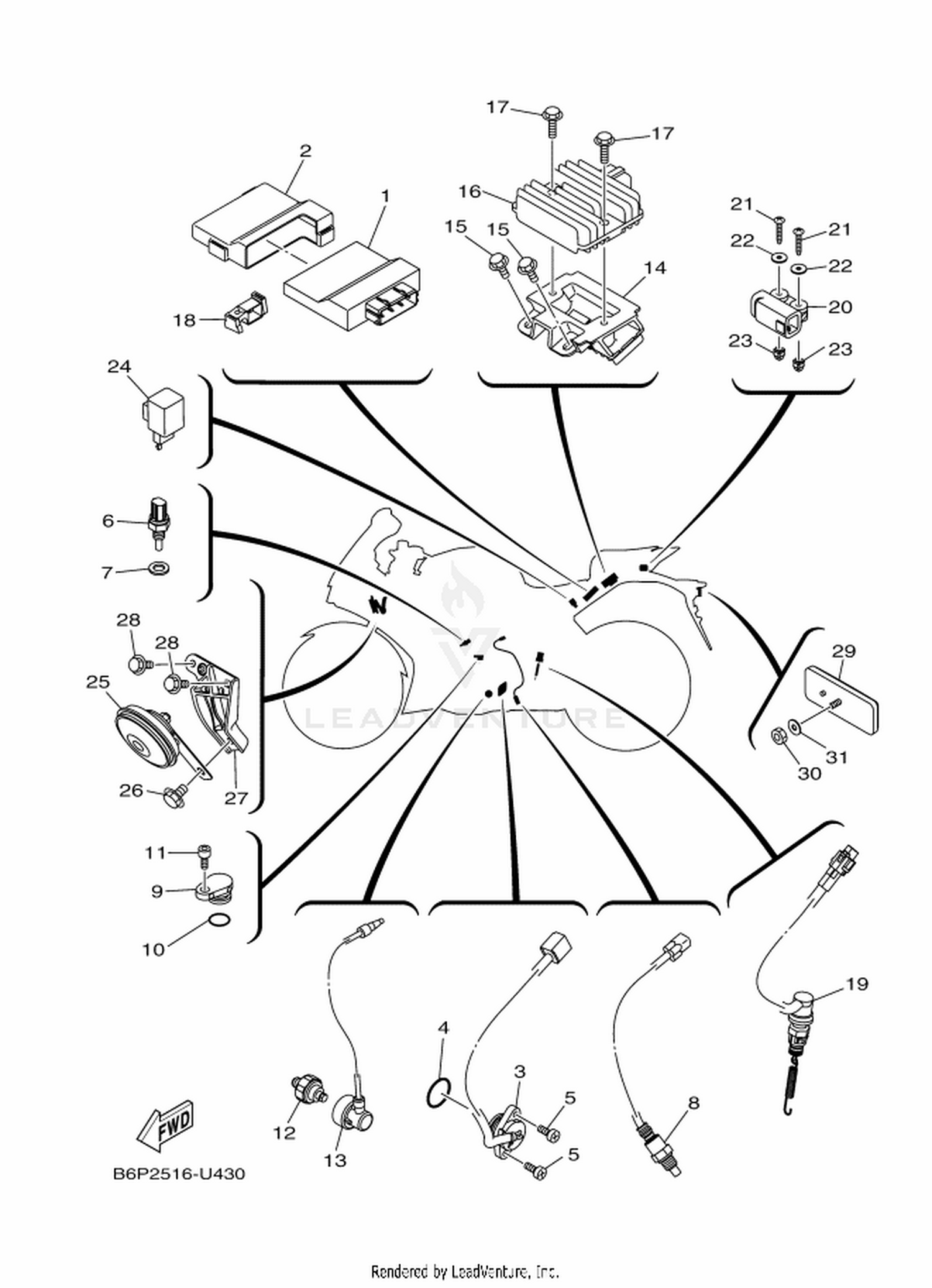

43 ELECTRICAL 2

43 ELECTRICAL 2

Parts (29)

RefPart NumberDescription
1 BR5-H591A-00 ENGINE CONTROL UNIT ASSY Price: Call Us
2 BR5-H5546-00 BAND Price: Call Us
3 1WD-H2540-00 NEUTRAL SWITCH ASSY Price: Call Us
4 93210-21801 O-RING Price: Call Us
5 98502-05016 SCREW, PAN HEAD Price: Call Us
6 54P-H3591-00 THERMO UNIT Price: Call Us
7 90430-10804 GASKET Price: Call Us
8 1WD-H592A-00 SENSOR, OXYGEN Price: Call Us
9 2WD-E5189-00 PLUG Price: Call Us
11 91332-06016 BOLT Price: Call Us
12 1WS-82504-00 OIL PRESSURE SWITCH ASSY Price: Call Us
13 1WD-H1315-01 LEAD WIRE ASSY Price: Call Us
14 BR5-H1961-00 COVER Price: Call Us
15 95D02-06016 BOLT, FLANGE DEEP RECESS Price: Call Us
16 1WD-H1960-00 RECTIFIER REGULATOR ASSY Price: Call Us
17 95D02-06025 BOLT, FLANGE DEEP RECESS Price: Call Us
18 BR5-H2592-00 BAND Price: Call Us
19 1WD-H2530-10 STOP SWITCH ASSY Price: Call Us
20 1WD-H2576-00 SENSOR, LEAN ANGLE Price: Call Us
21 90160-04009 SCREW, ROUND TAPPING Price: Call Us
22 90201-04028 WASHER, PLATE Price: Call Us
23 4B4-84334-00 NUT, ADJUSTING Price: Call Us
24 3XV-83350-21 FLASHER RELAY ASSY Price: Call Us
25 1WD-H3371-00 HORN Price: Call Us
26 95D02-08012 BOLT, FLANGE DEEP RECESS Price: Call Us
27 1WD-H3378-00 STAY, HORN Price: Call Us
28 95D07-06016 BOLT, FLANGE DEEP RECESS Price: Call Us
29 3C1-H5130-00 REAR REFLECTOR ASSY Price: Call Us
30 95602-05100 NUT, U Price: Call Us
