Parts Catalog

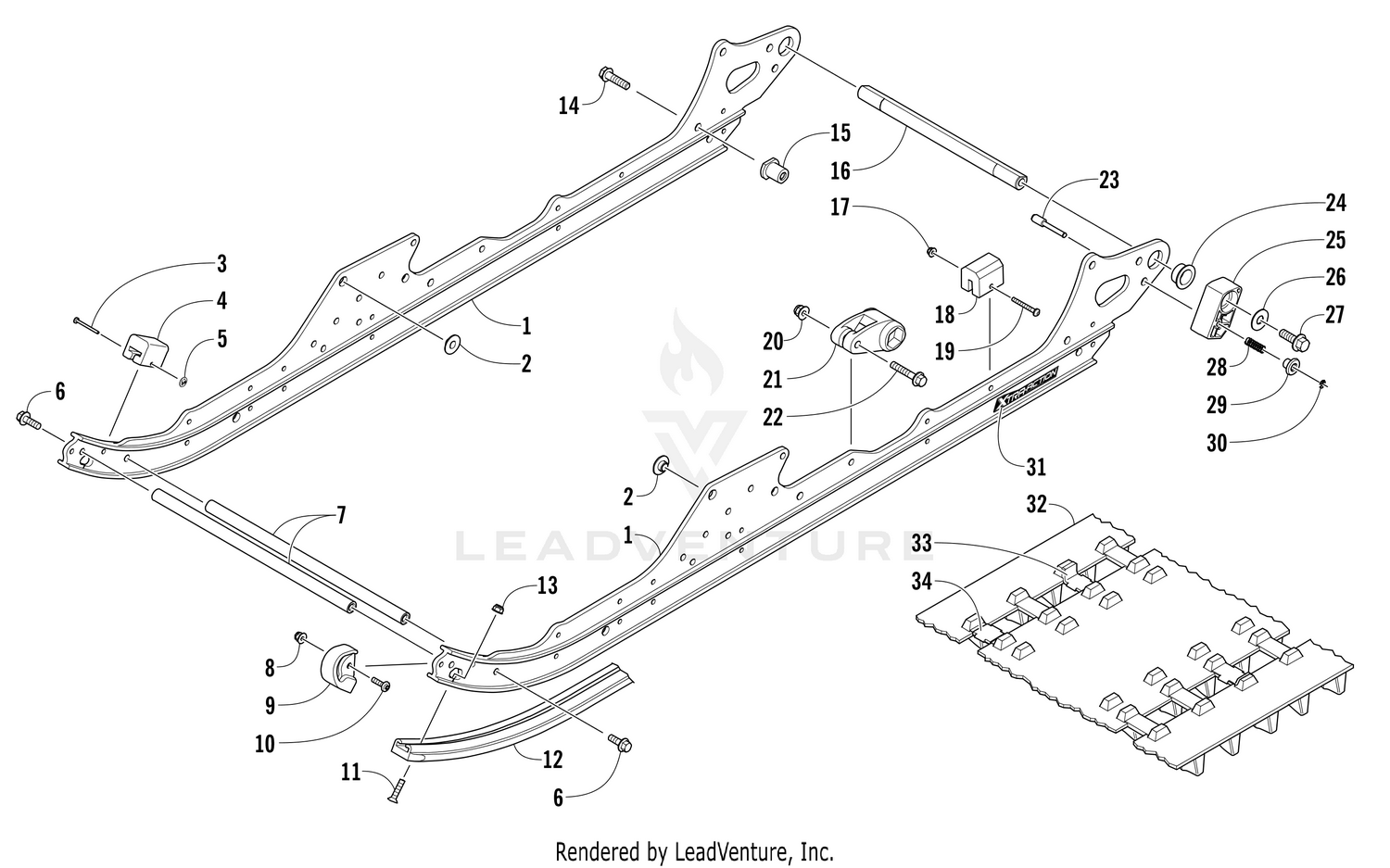

SLIDE RAIL AND TRACK ASSEMBLY [103249]

Parts (33)

Ref	Part Number	Description
1	4604-101	Rail, Formed Price: $311.95
2	3604-266	Insert, Rail Price: $3.51
3	0123-767	Rivet, Solid Price: $1.07
4	0104-631	Pad, Shock Price: $7.08
5	0123-766	Nut, Push Price: $1.32
6	8408-826	Screw, Cap Price: $0.46
7	3604-425	Axle Price: $43.15
8	8427-602	Nut, Hex Price: $0.23
9	3604-003	End Cap, Slide Rail Price: $20.56
10	8476-625	Screw, Machine Price: $1.92
11	0123-859	Screw, Machine Price: $1.18
12	3604-627	Wearstrip - Black Price: $36.95
13	8047-366	Nut, Lock Price: $0.46
14	8413-031	Screw, Cap Price: $2.91
15	3604-979	Axle Price: $3.75
16	3604-564	Axle Price: $115.95
17	8427-502	Nut, Lock Price: $1.07
18	1604-429	Pad, Shock Price: $7.23
19	8470-540	Screw, Machine Price: $1.45
20	8427-802	Nut, Lock Price: $0.58
21	4604-102	Block, Spring Tension Price: $14.49
22	8408-850	Screw, Cap Price: $1.20
23	3604-985	Plunger Pin Price: $36.95
24	4604-100	Bushing, Flared Price: $8.43
25	4604-096	Block, Coupling - Right Price: $13.28
25	4604-097	Block, Coupling - Left Price: $13.28
26	8450-163	Washer Price: $1.08
27	8408-031	Screw, Cap Price: $2.30
28	3604-987	Spring, Plunger Pin Price: $3.88
29	3604-986	Knob, Plunger Pin Price: $13.28
30	0423-667	E-CLIP,4.0 MM Price: $0.71
31	2621-929	Decal, "Xtra Action" Price: $19.35
33	2602-383	Clip, Guide Price: $4.48
