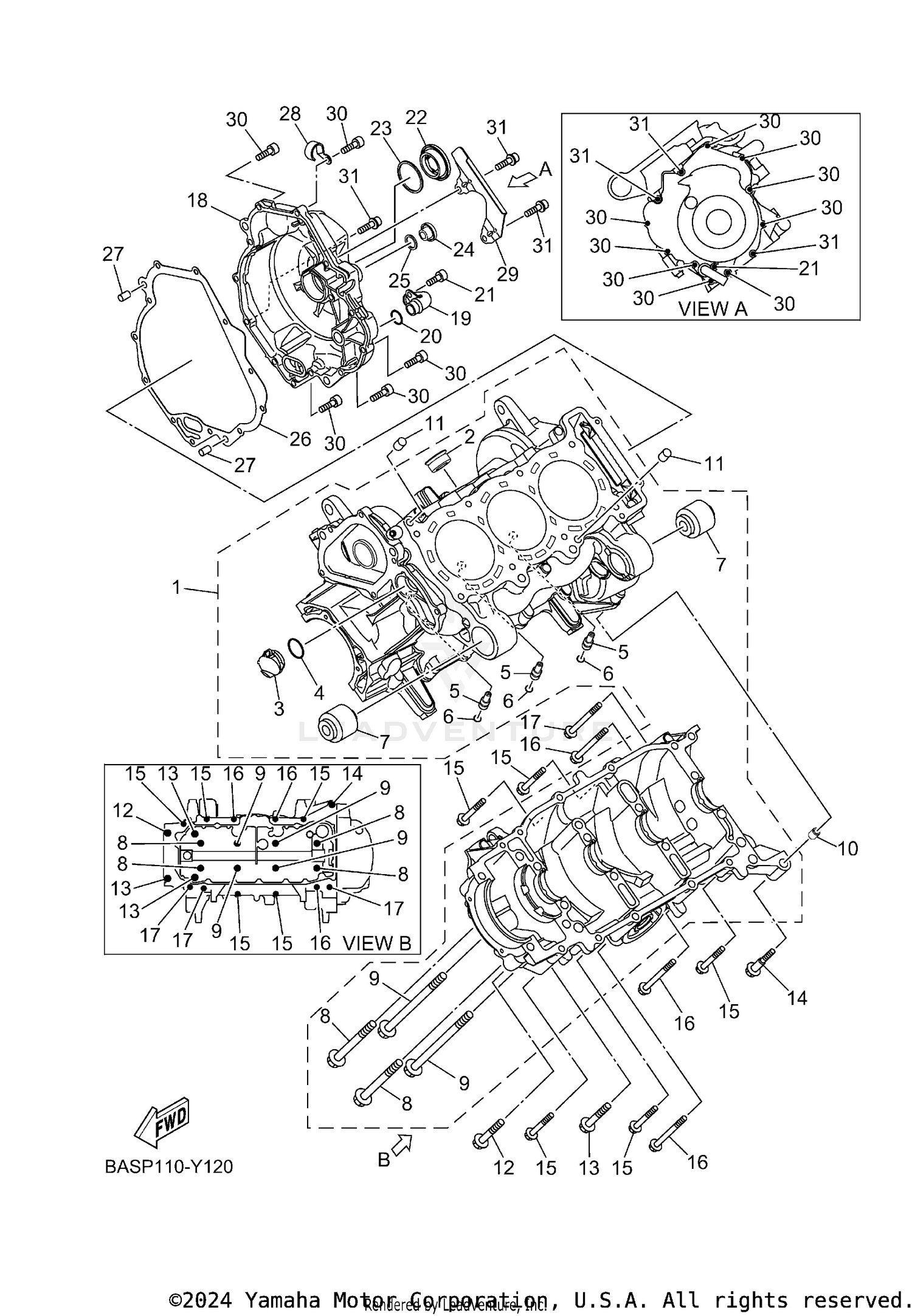

| Ref | Part Number | Description |
|---|
| 1 |
2HC-15109-07-00 |
CRANKCASE ASSY Price: $2,355.99 |
| 2 |
90340-27129-00 |
PLUG, STRAIGHT SCREW Price: $5.60 |
| 3 |
8ES-15167-00-00 |
PLUG, BLIND 1 Price: $12.99 |
| 4 |
93210-24709-00 |
O-RING Price: $10.49 |
| 5 |
4XV-15155-00-00 |
N/A PER YMC Price: $5.49 |
| 6 |
93210-04092-00 |
O-RING Price: $4.05 |
| 7 |
2HC-15541-00-00 |
COLLAR Price: $32.99 |
| 8 |
90119-09004-00 |
BOLT, WITH WASHER Price: $12.49 |
| 9 |
90119-09011-00 |
BOLT, WITH WASHER Price: $46.99 |
| 10 |
99530-10114-00 |
PIN, DOWEL This part replaces 99530-10014-00. Price: $2.65 |
| 11 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 12 |
95817-08055-00 |
BOLT, FLANGE This part replaces 95812-08055-00. Price: $4.21 |
| 13 |
95817-08070-00 |
BOLT, FLANGE This part replaces 95812-08070-00. Price: $4.90 |
| 14 |
90109-06185-00 |
BOLT Price: $9.49 |
| 15 |
95812-06055-00 |
BOLT, FLANGE Price: $1.90 |
| 16 |
95812-06080-00 |
BOLT, FLANGE Price: $9.49 |
| 17 |
95817-06080-00 |
BOLT, FLANGE This part replaces 90105-06123-00. Price: $5.49 |
| 18 |
B5H-15421-00-00 |
COVER, CRANKCASE 2 Price: $109.99 |
| 19 |
2HC-13115-00-00 |
CONNECTOR, SUCTION PIPE Price: $32.99 |
| 20 |
93210-14003-00 |
O-RING Price: $9.49 |
| 21 |
91312-06014-00 |
BOLT, HEXAGON SOCKET HEAD Price: $5.49 |
| 22 |
90340-36004-00 |
PLUG, STRAIGHT SCREW Price: $20.99 |
| 23 |
93210-35804-00 |
O-RING This part replaces 93210-357A3-00. Price: $0.60 |
| 24 |
90340-14016-00 |
PLUG, STRAIGHT SCREW Price: $19.49 |
| 25 |
93210-14369-00 |
O-RING Price: $8.49 |
| 26 |
2HC-15461-00-00 |
GASKET, CRANKCASE COVER 2 Price: $19.99 |
| 27 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
| 28 |
90462-08225-00 |
CLAMP Price: $9.49 |
| 29 |
B5H-15191-00-00 |
PLATE Price: $14.49 |
| 30 |
91317-06025-00 |
BOLT This part replaces 91312-06025-00. Price: $2.65 |
