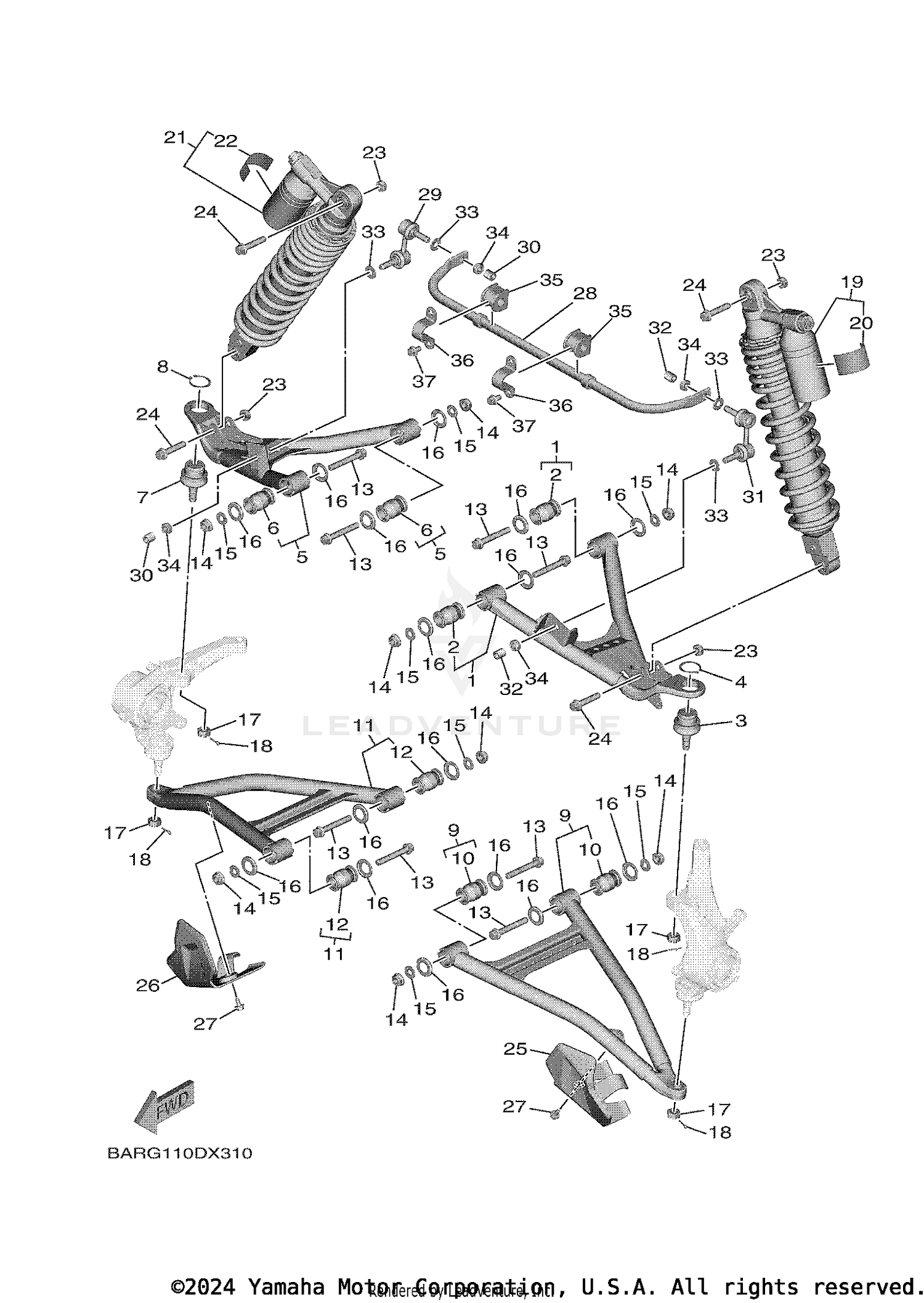

| Ref | Part Number | Description |
|---|
| 1 |
BAR-F3540-10-00 |
FRONT UPPER ARM CO Price: $99.99 |
| 2 |
B4J-F3526-01-00 |
BUSH Price: $12.49 |
| 3 |
1XD-23579-00-00 |
BALL JOINT 2 Price: $83.99 |
| 4 |
93410-32075-00 |
CIRCLIP This part replaces 99009-32400-00. Price: $10.49 |
| 5 |
BAR-F3550-10-00 |
FRONT UPPER ARM CO Price: $99.99 |
| 6 |
B4J-F3526-01-00 |
BUSH Price: $12.49 |
| 7 |
1XD-23579-00-00 |
BALL JOINT 2 Price: $83.99 |
| 8 |
93410-32075-00 |
CIRCLIP This part replaces 99009-32400-00. Price: $10.49 |
| 9 |
BAR-F3570-10-00 |
FRONT LOWER ARM CO Price: $96.99 |
| 10 |
B4J-F3526-01-00 |
BUSH Price: $12.49 |
| 11 |
BAR-F3580-10-00 |
FRONT LOWER ARM CO Price: $96.99 |
| 12 |
B4J-F3526-01-00 |
BUSH Price: $12.49 |
| 13 |
90105-12095-00 |
BOLT, FLANGE Price: $10.49 |
| 14 |
90185-12002-00 |
NUT, SELF-LOCKING Price: $13.49 |
| 15 |
90201-12045-00 |
WASHER, PLATE Price: $6.49 |
| 16 |
B4J-F3517-00-00 |
COVER, THRUST 1 Price: $1.45 |
| 17 |
90171-12001-00 |
NUT, CASTLE Price: $3.55 |
| 18 |
91490-25020-00 |
PIN. COTTER This part replaces 91402-25020-00. Price: $3.45 |
| 19 |
BAR-F350A-21-00 |
FR. SHOCK ABSORBER ASSY. ,1 Price: $629.99 |
| 20 |
B4J-F2259-00-00 |
LABEL, WARNING Price: $1.95 |
| 21 |
BAR-F350B-21-00 |
FR. SHOCK ABSORBER ASSY. ,2 Price: $629.99 |
| 22 |
B4J-F2259-00-00 |
LABEL, WARNING Price: $1.95 |
| 23 |
90185-10012-00 |
NUT, SELF-LOCKING Price: $3.60 |
| 24 |
90105-10283-00 |
BOLT, FLANGE Price: $6.49 |
| 25 |
2MB-F3123-01-00 |
COVER, UNDER 1 Price: $14.49 |
| 26 |
2MB-F3133-01-00 |
COVER, UNDER 2 Price: $14.49 |
| 27 |
90119-06152-00 |
BOLT, WITH WASHER Price: $3.55 |
| 28 |
BG4-F386E-00-00 |
BAR, STABILIZER FRONT Price: $79.99 |
| 29 |
16B-2385L-10-00 |
JOINT, STABILIZER 1 Price: $78.99 |
| 30 |
90445-13030-00 |
HOSE (L15) Price: $0.50 |
| 31 |
16B-2385M-10-00 |
JOINT, STABILIZER 2 Price: $78.99 |
| 32 |
90445-13030-00 |
HOSE (L15) Price: $0.50 |
| 33 |
90201-10035-00 |
WASHER, PLATE Price: $4.50 |
| 34 |
90185-10012-00 |
NUT, SELF-LOCKING Price: $3.60 |
| 35 |
BAR-F376B-00-00 |
BUSH Price: $14.49 |
| 36 |
BG4-F386B-00-00 |
BRKT., STABILIZER FR. Price: $8.49 |
