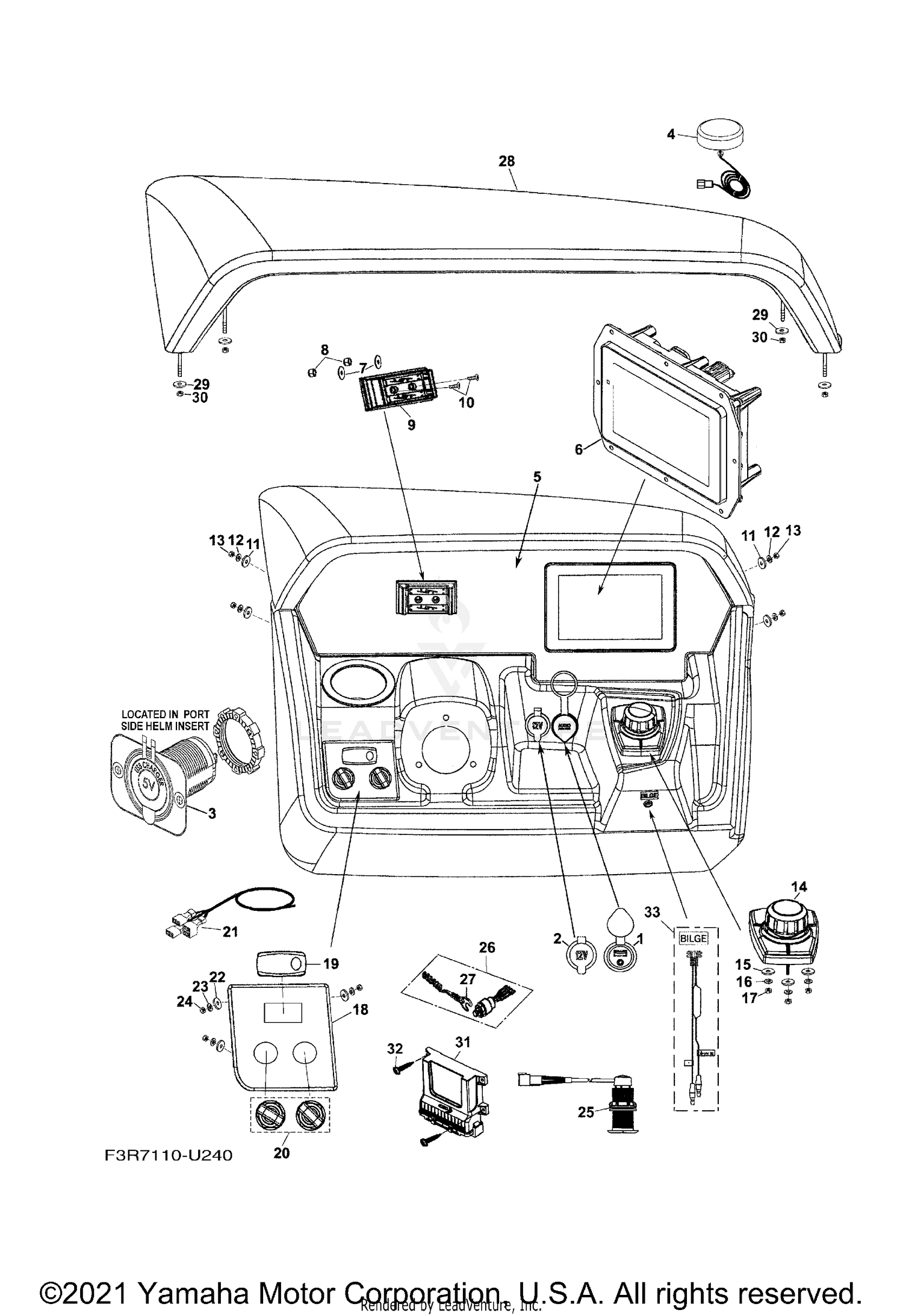

| Ref | Part Number | Description |
|---|
| 1 |
F3H-U8284-00-00 |
RECEPTACLE, ACCESSORY Price: $64.99 |
| 2 |
F0K-U8284-00-00 |
RECEPTACLE, ACCESSORY Price: $19.99 |
| 3 |
F5V-U8284-00-00 |
RECEPTACLE, ACCESSOR Price: $66.99 |
| 4 |
F3F-U8K1L-11-00 |
ANTENA, GPS This part replaces F3F-U8K1L-10-00. Price: $547.99 |
| 5 |
F3R-U82B3-40-00 |
PANEL, METER 1 Price: $1,703.99 |
| 6 |
F3R-U8K12-10-00 |
DISPLAY UNIT Price: $2,728.99 |
| 7 |
90201-14S00-00 |
WASHER, PLATE Price: $6.99 |
| 8 |
90185-14S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 9 |
F4C-U827C-00-00 |
HOLDER Price: $176.99 |
| 10 |
90151-14SA3-00 |
SCREW, COUNTERSUNK Price: $4.99 |
| 11 |
90209-10SB1-00 |
WASHER Price: $5.99 |
| 12 |
90204-08S00-00 |
WASHER, #8 LOCK Price: $5.99 |
| 13 |
90170-08S00-00 |
NUT, HEX Price: $5.99 |
| 14 |
F3F-U8313-10-00 |
START BUTTON COMP. Price: $1,518.99 |
| 15 |
90209-14SA2-00 |
WASHER Price: $1.99 |
| 16 |
90204-14S00-00 |
WASHER, SPRING Price: $5.99 |
| 17 |
95680-06100-00 |
NUT, U Price: $8.70 |
| 18 |
F3R-U82B6-20-00 |
PANEL, SIDE 1 Price: $372.99 |
| 19 |
F2J-U8011-00-00 |
HORN SWITCH ASSY Price: $123.99 |
| 20 |
F3A-U8036-00-00 |
KEY SWITCH PACK ASSY Price: $233.99 |
| 21 |
F5V-U827F-00-00 |
WIRE HARNESS 4 Price: $314.99 |
| 22 |
90209-10SB1-00 |
WASHER Price: $5.99 |
| 23 |
90204-08S00-00 |
WASHER, #8 LOCK Price: $5.99 |
| 24 |
90170-08S00-00 |
NUT, HEX Price: $5.99 |
| 25 |
F2D-U8K1W-01-00 |
TRANSDUCER Price: $544.99 |
| 26 |
F2A-6834C-01-00 |
LANYARD,STOP SWITCH Price: $170.49 |
| 27 |
682-82556-00-00 |
LANYARD, STOP SWITCH Price: $8.20 |
| 28 |
F3R-U8262-00-00 |
COVER METER Price: $811.99 |
| 29 |
90209-14SA2-00 |
WASHER Price: $1.99 |
| 30 |
90185-14S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 31 |
F3R-U8197-00-00 |
CONTROL UNIT Price: $2,983.99 |
| 32 |
90149-10SA3-00 |
SCREW Price: $3.99 |
