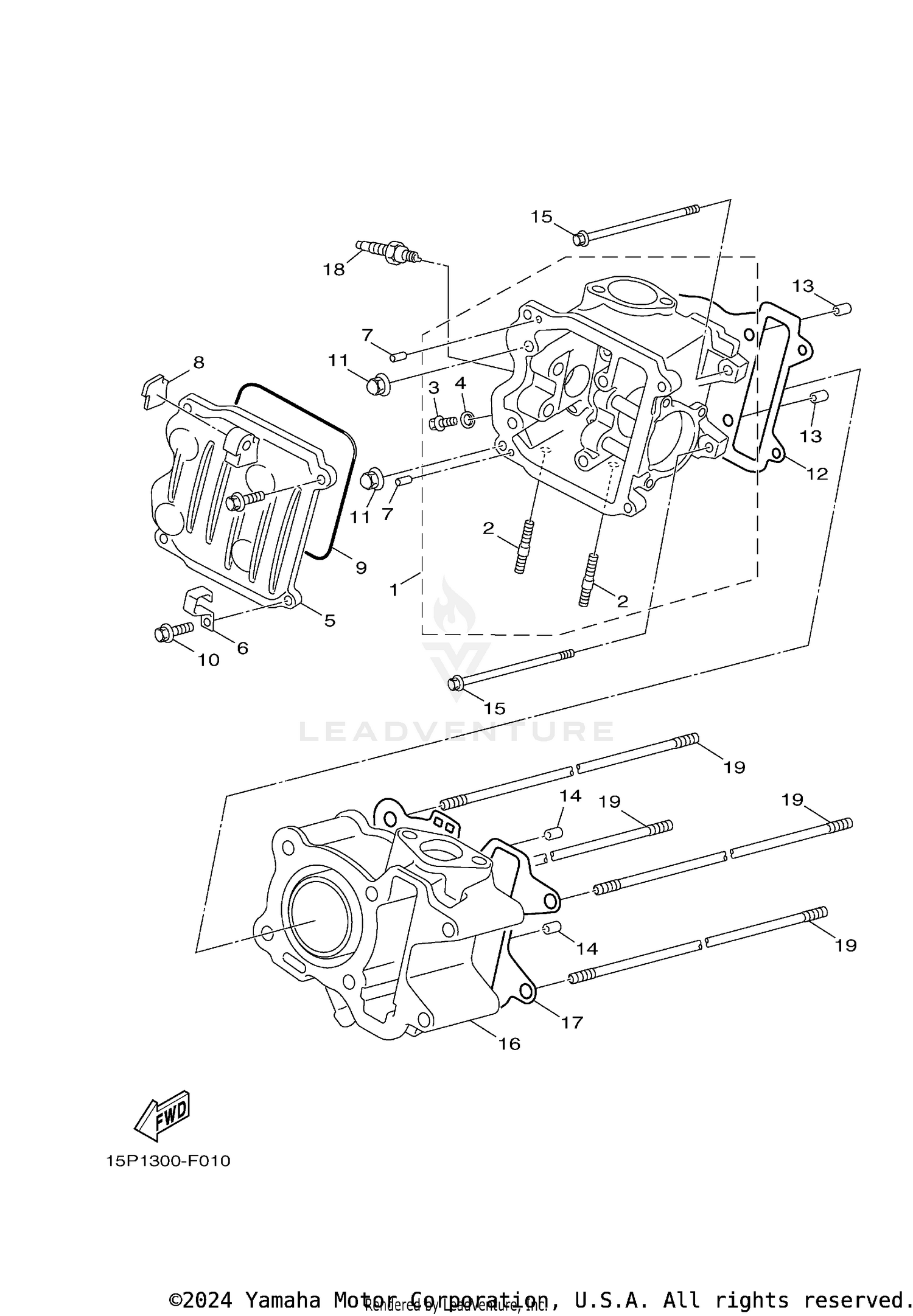

| Ref | Part Number | Description |
|---|
| 1 |
10B-E1102-10-00 |
CYLINDER HEAD ASSY Price: $172.99 |
| 2 |
90116-08808-00 |
BOLT, STUD Price: $2.30 |
| 3 |
90153-06805-00 |
SCREW, HEXAGON Price: $0.25 |
| 4 |
90430-06014-00 |
GASKET Price: $8.60 |
| 5 |
13P-E1191-01-00 |
COVER, CYLINDER HEAD 1 Price: $33.99 |
| 6 |
90462-08809-00 |
CLAMP Price: $1.99 |
| 7 |
93603-09106-00 |
PIN, DOWEL Price: $2.75 |
| 8 |
3B3-E131M-00-00 |
COVER Price: $2.00 |
| 9 |
93211-18800-00 |
O-RING Price: $2.60 |
| 10 |
95027-06020-00 |
BOLT, FLANGE Price: $1.20 |
| 11 |
90176-06806-00 |
NUT, CROWN Price: $0.20 |
| 12 |
10B-E1181-10-00 |
GASKET, CYLINDER HEAD 1 Price: $11.99 |
| 13 |
91810-14807-00 |
PIN, DOWEL Price: $1.75 |
| 14 |
91810-14807-00 |
PIN, DOWEL Price: $1.75 |
| 15 |
90105-06810-00 |
BOLT, FLANGE Price: $2.35 |
| 16 |
3B3-E1311-00-00 |
CYLINDER 1 Price: $140.99 |
| 17 |
5ST-E1351-10-00 |
GASKET, CYLINDER Price: $2.50 |
| 18 |
CR7-E0000-00-00 |
CR7E NGK SPLUG 4PK This part replaces 94700-00840-00. Price: $10.49 |
