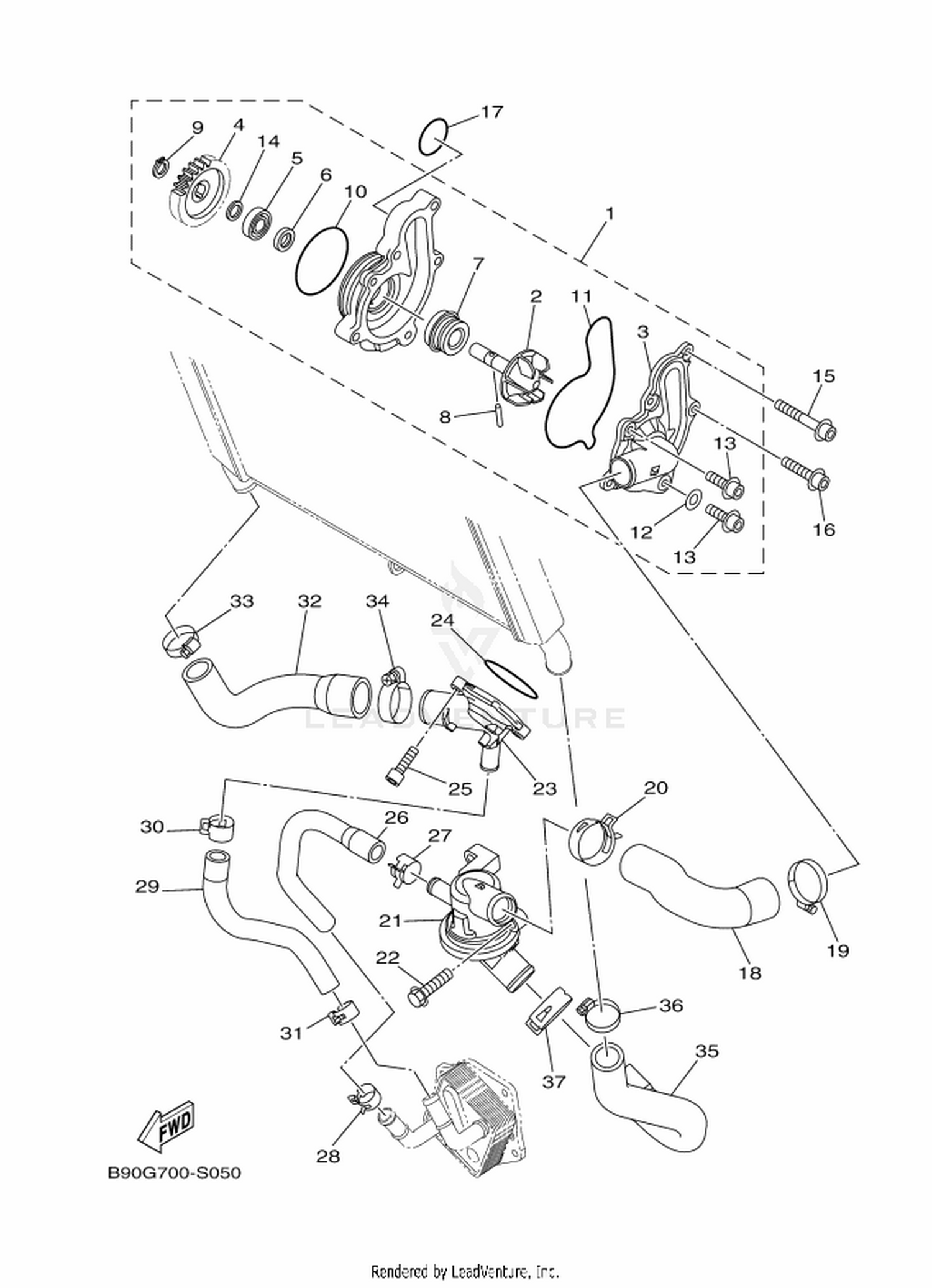

05 WATER PUMP
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1RC-12420-00 | WATER PUMP ASSY Price: Call Us |
| 5 | 93306-00106 | BEARING Price: Call Us |
| 6 | 93101-12173 | OIL SEAL Price: Call Us |
| 7 | 5VK-12438-00 | SEAL, MECHANICAL Price: Call Us |
| 9 | 99009-12400 | CIRCLIP Price: Call Us |
| 10 | 93210-61750 | O-RING Price: Call Us |
| 12 | 90430-06014 | GASKET Price: Call Us |
| 13 | 90110-06396 | BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 14 | 90201-12541 | WASHER, PLATE Price: Call Us |
| 15 | 90110-06394 | BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 16 | 90110-06388 | BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 18 | 1RC-12577-00 | HOSE 2 Price: Call Us |
| 19 | 90450-38040 | HOSE CLAMP ASSY Price: Call Us |
| 20 | 90467-310A0 | CLIP Price: Call Us |
| 21 | 1RC-12410-00 | THERMOSTAT ASSY Price: Call Us |
| 22 | 95822-06025 | BOLT, FLANGE Price: Call Us |
| 23 | 1RC-12469-00 | JOINT 1 Price: Call Us |
| 24 | 93210-46044 | O-RING Price: Call Us |
| 26 | BS2-12578-00 | HOSE 3 Price: Call Us |
| 27 | 90467-21068 | CLIP Price: Call Us |
| 28 | 90467-200A0 | CLIP Price: Call Us |
| 29 | BS2-12579-00 | HOSE 4 Price: Call Us |
| 30 | 90467-22002 | CLIP Price: Call Us |
| 31 | 90467-200A0 | CLIP Price: Call Us |
| 32 | 1RC-12588-00 | HOSE 5 Price: Call Us |
| 33 | 90450-32003 | HOSE CLAMP ASSY Price: Call Us |
| 34 | 90450-38040 | HOSE CLAMP ASSY Price: Call Us |
| 35 | 1RC-12576-00 | HOSE 1 Price: Call Us |
| 36 | 90450-32003 | HOSE CLAMP ASSY Price: Call Us |
