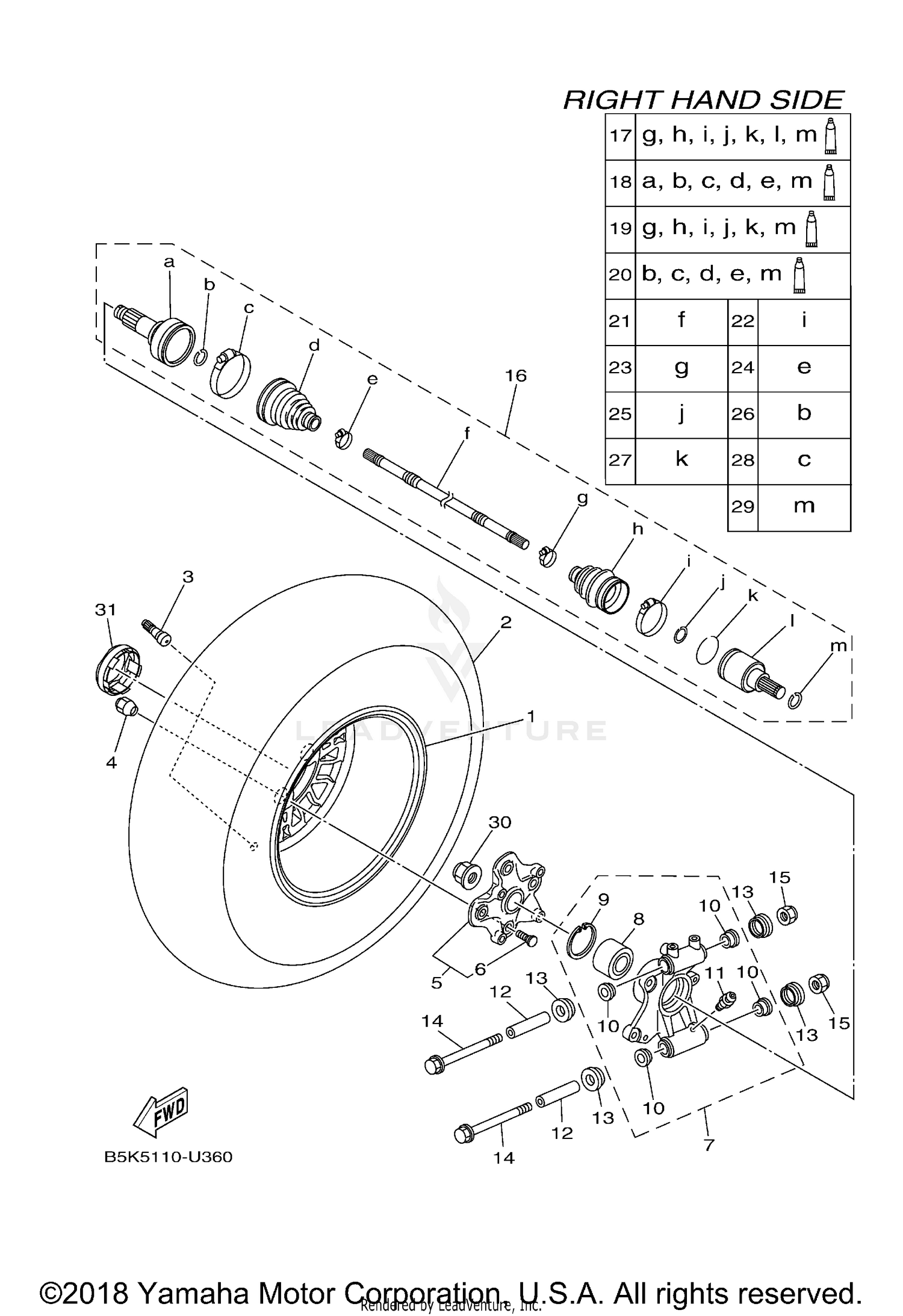

REAR WHEEL 2
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 90179-10032-00 | NUT Price: $14.49 |
| 5 | B16-F510D-03-00 | HUB ASSY 2 This part replaces B16-F510D-01-00. Price: $59.99 |
| 6 | 90114-10014-00 | BOLT, SERRATION Price: $3.55 |
| 7 | 2BG-F532F-01-00 | REAR KNUCKLE ASSY. Price: $164.99 |
| 8 | 93305-00602-00 | BEARING Price: $110.99 |
| 9 | 99009-55500-00 | CIRCLIP Price: $10.49 |
| 10 | 90381-17067-00 | BUSH, SOLID Price: $12.49 |
| 11 | 93700-06M03-00 | NIPPLE, GREASE This part replaces 93700-06004-00. Price: $8.25 |
| 12 | 5KM-23448-00-00 | SPACER Price: $18.99 |
| 13 | 3JN-23517-00-00 | COVER, THRUST 1 This part replaces 2NL-23517-00-00. Price: $17.99 |
| 14 | 90105-10212-00 | BOLT, FLANGE Price: $8.49 |
| 15 | 90185-10012-00 | NUT, SELF-LOCKING Price: $3.60 |
| 16 | B16-2531H-01-00 | REAR DRIVE SHAFT A This part replaces B16-2531H-00-00. Price: $299.99 |
| 21 | B16-2518E-10-00 | SHAFT Price: $95.99 |
| 22 | B16-2511H-00-00 | BOOT BAND(DOUBLE OFFSET JOINT) Price: $13.49 |
| 23 | B16-2512G-00-00 | BOOT BAND (SMALL) Price: $9.49 |
| 24 | 28P-2512G-00-00 | BOOT BAND (SMALL) Price: $17.99 |
| 25 | B16-2512J-00-00 | SNAP RING Price: $4.35 |
| 26 | 3B4-2512H-00-00 | CIRCLIP Price: $7.49 |
| 27 | B16-25182-00-00 | CIRCLIP Price: $3.60 |
| 28 | 28P-2511H-00-00 | BOOT BAND(DOUBLE OFFSET JOINT) Price: $16.49 |
| 29 | 3B4-2536E-00-00 | CLIP, SPRING Price: $8.49 |
| 30 | 90179-20016-00 | NUT Price: $12.99 |
